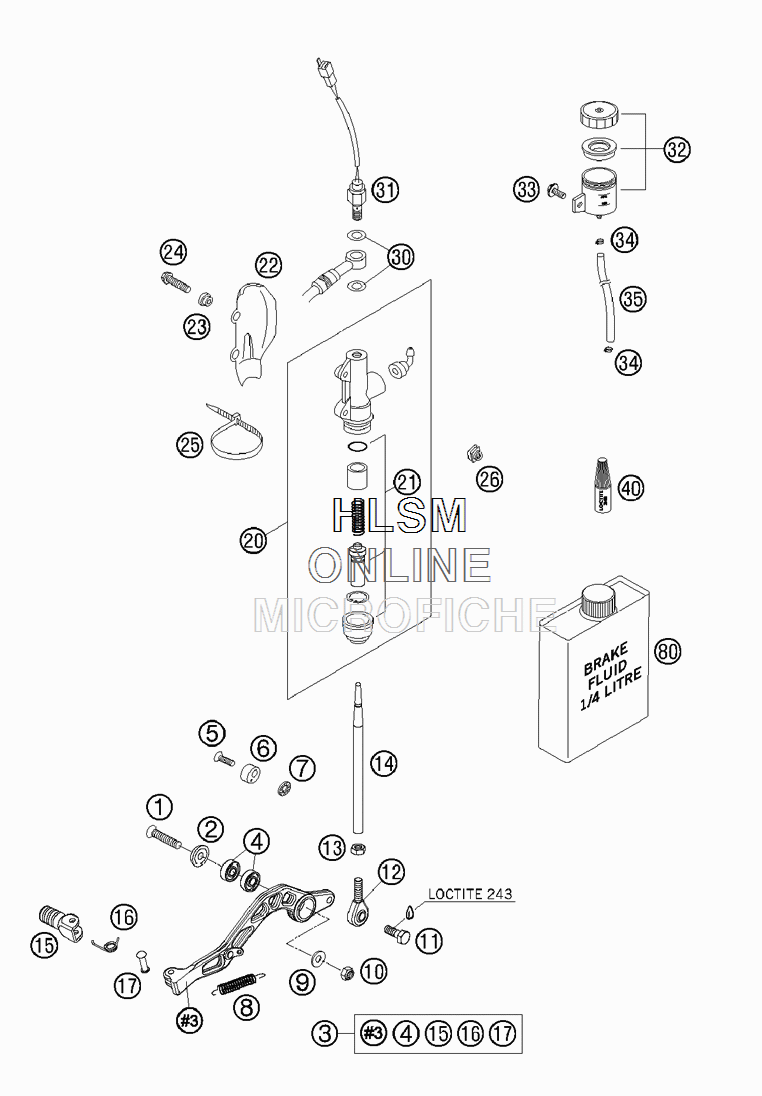

REAR BRAKE CONTROL для Ktm 640 SUPERMOTO - 2005 года выпуска`
-
№АртикулНазвание
-
10991080353 FLAT HEAD SCREW DIN7991-M 8X35FLAT HEAD SCREW DIN7991-M 8X35
-
258303061000 SPECIAL WASHER ALU 8 X 24 MMSPECIAL WASHER ALU 8 X 24 MM
-
358403070244 FOOT BRAKE LEV. FOLDING CPLFOOT BRAKE LEV. FOLDING CPL
-
40625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
50991060203 FLAT H.SCREW DIN7991-M6X20 8.8FLAT H.SCREW DIN7991-M6X20 8.8
-
658413048000 BRAKE LEVER STOPBRAKE LEVER STOP
-
70797060003 TOOTH LOCK WASH. DIN6797-A 6,4TOOTH LOCK WASH. DIN6797-A 6,4
-
813003062000 RETURN SPRINGRETURN SPRING
-
90125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
100985080003 SELF LOCKING NUT DIN0985-M 8SELF LOCKING NUT DIN0985-M 8
-
110933080223 HH SCREW DIN0933-M 8X22 8.8HH SCREW DIN0933-M 8X22 8.8
-
1258303062000 HEIM JOINT M8 W=12MMHEIM JOINT M8 W=12MM
-
130934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
1458303068100 PUSH ROD ALU L=178MMPUSH ROD ALU L=178MM
-
1554634131000 STEP PLATESTEP PLATE
-
1654634032100 SHIFTING LEVER SPRING 250SHIFTING LEVER SPRING 250
-
1754634031050 BOLT 6X25BOLT 6X25
-
2054513101044 MAIN BRAKE CYLINDERMAIN BRAKE CYLINDER
-
2154513150000 REPAIR KIT PISTON 13MMREPAIR KIT PISTON 13MM
-
2254513038000 BRAKE CYL. PROTECTOR "BREMBO"BRAKE CYL. PROTECTOR "BREMBO"
-
2350213161000 COLLAR BUSHINGCOLLAR BUSHING
-
240015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
2544011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
2650235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
3042013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
3150311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
3254513030044 BRAKE FLUID RESERVOIRBRAKE FLUID RESERVOIR
-
330014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
3458007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
3558007016101 HOSEHOSE
-
80306054 BRAKE FLUID DOT 5.1 1/4 LITREBRAKE FLUID DOT 5.1 1/4 LITRE
