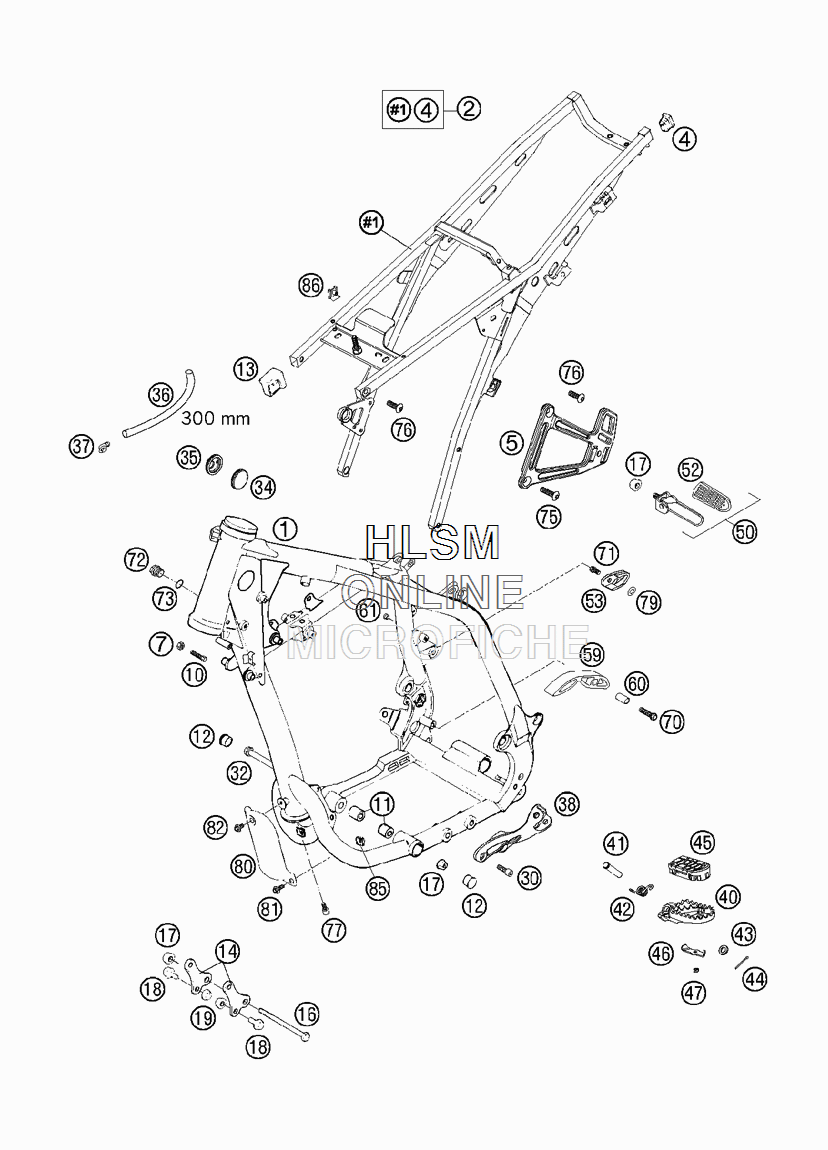

FRAME W/ SUB FRAME для Ktm 640 SUPERMOTO - 2005 года выпуска`

№

Артикул

Название
1

5840310104430 FRAME CPL. "EE05" 640 SM

FRAME CPL. "EE05" 640 SM

0 ₽
2

5860300204430 SUBFRAME CPL. "P5"

SUBFRAME CPL. "P5"

131 210 ₽
4

58303002090 PLUG 12 X 17 MM

PLUG 12 X 17 MM

300 ₽
5

5810300420030 FOOTREST BRACKET R/S BLACK

FOOTREST BRACKET R/S BLACK

19 040 ₽
5

5870304800030 FOOTREST BRACKET RE.L/S BLA.04

FOOTREST BRACKET RE.L/S BLA.04

0 ₽
7

0934080003 HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

320 ₽
10

59001037000 SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

560 ₽
11

58003012000 SPACER ROLLER 10,3X20X22

SPACER ROLLER 10,3X20X22

2 720 ₽
12

71001012100 PVC CAP D=22MM

PVC CAP D=22MM

590 ₽
13

58307015000 TANK SUPPORT

TANK SUPPORT

1 790 ₽
14

58303055000 ENGINE SUPPORT AGW

ENGINE SUPPORT AGW

3 410 ₽
16

58403013000 ENGINE BRAC.SCREW M10X110 WS13

ENGINE BRAC.SCREW M10X110 WS13

3 780 ₽
17

54630044000 COLLAR NUT M10 WS=13

COLLAR NUT M10 WS=13

680 ₽
18

49109481052 HH COLLAR SCREW M 8X16 WS=13

HH COLLAR SCREW M 8X16 WS=13

590 ₽
19

54310086200 SELF LOCKING NUT M8 10.9

SELF LOCKING NUT M8 10.9

500 ₽
30

0912100250 AH SCREW DIN6912-M10X25,10.9,L

AH SCREW DIN6912-M10X25,10.9,L

820 ₽
32

58403014000 ENGINE BRAC.SCREW M10X160 WS13

ENGINE BRAC.SCREW M10X160 WS13

4 880 ₽
34

54606004000 PLUG 37MM

PLUG 37MM

490 ₽
35

54606004100 PLUG 37MM PERFORATED

PLUG 37MM PERFORATED

490 ₽
36

55007016001 PVC-HOSE 7X10 PER METER

PVC-HOSE 7X10 PER METER

1 640 ₽
37

50303089000 ANGEL PIECE

ANGEL PIECE

1 160 ₽
38

58403038000 FOOTREST BRACKET L/S ALU

FOOTREST BRACKET L/S ALU

21 290 ₽
40

59003040250 FOOT PED L/S SILVER

FOOT PED L/S SILVER

11 770 ₽
40

59003041250 FOOT PED R/S SILVER

FOOT PED R/S SILVER

11 770 ₽
41

54803044000 BOLT

BOLT

3 330 ₽
42

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
43

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
44

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
45

60003040010 FOOTREST RUBBER FRONT L/S

FOOTREST RUBBER FRONT L/S

5 120 ₽
45

60003041010 FOOTREST RUBBER FRONT R/S

FOOTREST RUBBER FRONT R/S

5 120 ₽
46

60003044010 CLOSING PANEL FRONT L/S R/S

CLOSING PANEL FRONT L/S R/S

1 400 ₽
47

0985050003 SELF LOCKING NUT DIN0985-M 5

SELF LOCKING NUT DIN0985-M 5

290 ₽
50

58303050044 FOOTREST REAR L/S CPL.

FOOTREST REAR L/S CPL.

28 790 ₽
50

58303150044 FOOTREST REAR R/S CPL.

FOOTREST REAR R/S CPL.

28 270 ₽
52

58303051000 FOOTREST RUBBER L/S & R/S

FOOTREST RUBBER L/S & R/S

3 970 ₽
53

58604069000 CHAIN SLIDING PIECE

CHAIN SLIDING PIECE

1 160 ₽
59

51103053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 110 ₽
60

51103053051 BUSHING 8,2X10X20

BUSHING 8,2X10X20

930 ₽
61

54403135000 PLASTIC CAP SFL10

PLASTIC CAP SFL10

380 ₽
70

0015080303 HH COLLAR SCREW M 8X30 WS=10

HH COLLAR SCREW M 8X30 WS=10

700 ₽
71

0015080163 HH COLLAR SCREW M 8X16 WS=10

HH COLLAR SCREW M 8X16 WS=10

760 ₽
72

0910160153 PLUG DIN0910-M16X1,5

PLUG DIN0910-M16X1,5

1 400 ₽
73

0603162220 CU-SEAL RING 16X22X2

CU-SEAL RING 16X22X2

470 ₽
75

54510052200 AH SCREW 8X29 FL.HEAD 04

AH SCREW 8X29 FL.HEAD 04

410 ₽
76

54510052100 SPROCKET SCREW-AH M8X26 WS=6

SPROCKET SCREW-AH M8X26 WS=6

500 ₽
77

0984060103 AH SCREW DIN7984-M 6X10

AH SCREW DIN7984-M 6X10

210 ₽
79

0125080003 WASHER DIN0125-A 8,4

WASHER DIN0125-A 8,4

120 ₽
80

58303010000 COVER OIL FILTER '94

COVER OIL FILTER '94

9 230 ₽
81

0014060153 HH COLLAR SCREW M 6X15 WS=8

HH COLLAR SCREW M 6X15 WS=8

560 ₽
82

0014060103 HH COLLAR SCREW M 6X10 WS=8

HH COLLAR SCREW M 6X10 WS=8

500 ₽
85

50235033300 SNAP-NUT HOLDER M6 KP142

SNAP-NUT HOLDER M6 KP142

970 ₽
86

54603048100 RANGE CHANGE METAL NUT M6

RANGE CHANGE METAL NUT M6

970 ₽
