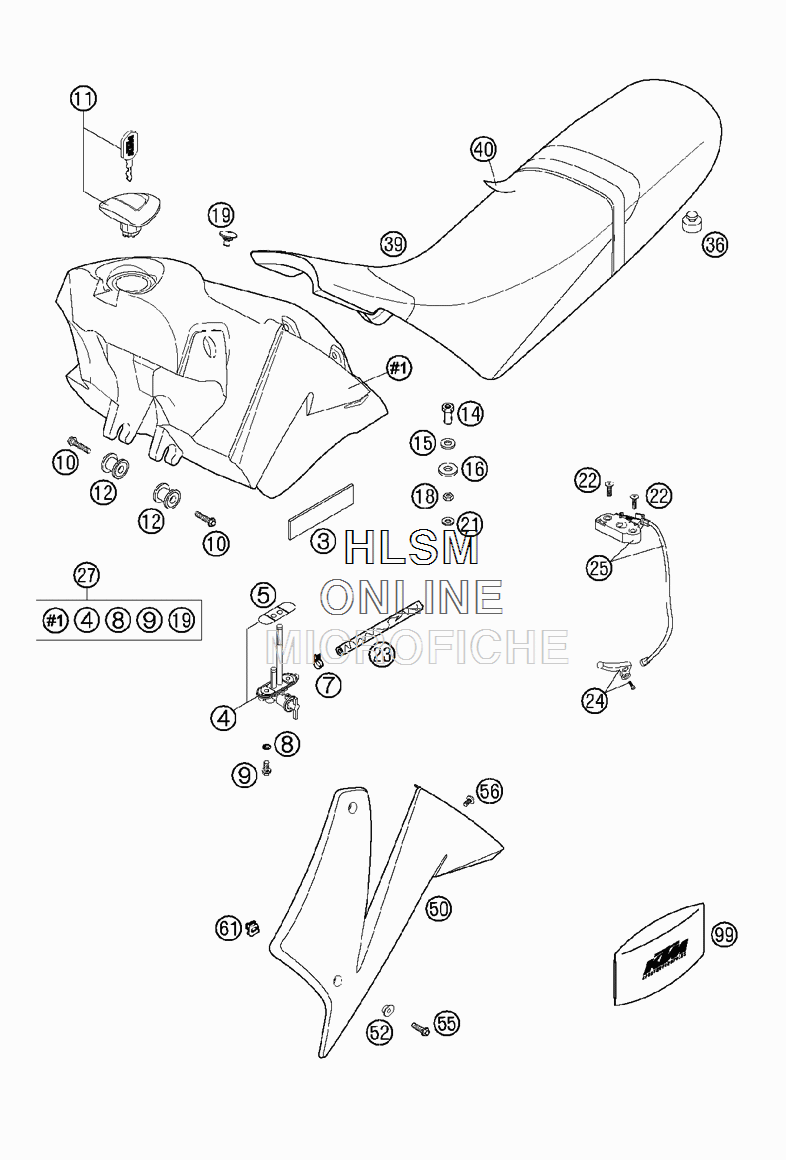

TANK - SEAT - COVER для Ktm 640 SUPERMOTO - 2005 года выпуска`
-
№АртикулНазвание
-
354601097000 RUBBER STRIP 85X25X3 MMRUBBER STRIP 85X25X3 MM
-
451107004000 FUEL COCK CPL.MIKUNI CK-69FUEL COCK CPL.MIKUNI CK-69
-
558307106100 GASKET FUEL COCK MIKUNIGASKET FUEL COCK MIKUNI
-
758031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
80603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
90015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
100015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1158407008100 TANK PLUGTANK PLUG
-
1258307113250 TANK BUSHING CPL. 12 X 34 X 25TANK BUSHING CPL. 12 X 34 X 25
-
1458307014000 SPECIAL NUT M8SPECIAL NUT M8
-
1531004001100 WASHER 10,5 X 21 X 3WASHER 10,5 X 21 X 3
-
1651005067100 INSOLATE WASHER 12X28X3INSOLATE WASHER 12X28X3
-
180934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
1958407011100 SCREWSCREW
-
210125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
220991050253 FLAT HEAD SCREW DIN7991-M 5X25FLAT HEAD SCREW DIN7991-M 5X25
-
2354435024001 HOSE ID 7,5 PER METERHOSE ID 7,5 PER METER
-
2458607051000 SEAT LOCK LEVER CPL.SEAT LOCK LEVER CPL.
-
2558607050044 SEAT LOCK CPL.SEAT LOCK CPL.
-
2758407013300 FUEL TANK 11LI.CPL.(BLACK)FUEL TANK 11LI.CPL.(BLACK)
-
3658407040060 PLUGPLUG
-
3958607040000 SEATSEAT
-
4058607040050 SEAT COVERSEAT COVER
-
505840805000004 SPOILER L/S ORANGESPOILER L/S ORANGE
-
505840805000030A SPOILER L/S SM BLACK DECAL TAKE INSPOILER L/S SM BLACK DECAL TAKE IN
-
505840805100004 SPOILER R/S ORANGESPOILER R/S ORANGE
-
505840805100030A SPOILER R/S SM BLACK DECAL TAKE INSPOILER R/S SM BLACK DECAL TAKE IN
-
5250308052000 BUSHBUSH
-
550015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
560014060133 HH COLLAR SCREW M 6X13 WS=8HH COLLAR SCREW M 6X13 WS=8
-
6150235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
9958329099000 TOOL SETTOOL SET
