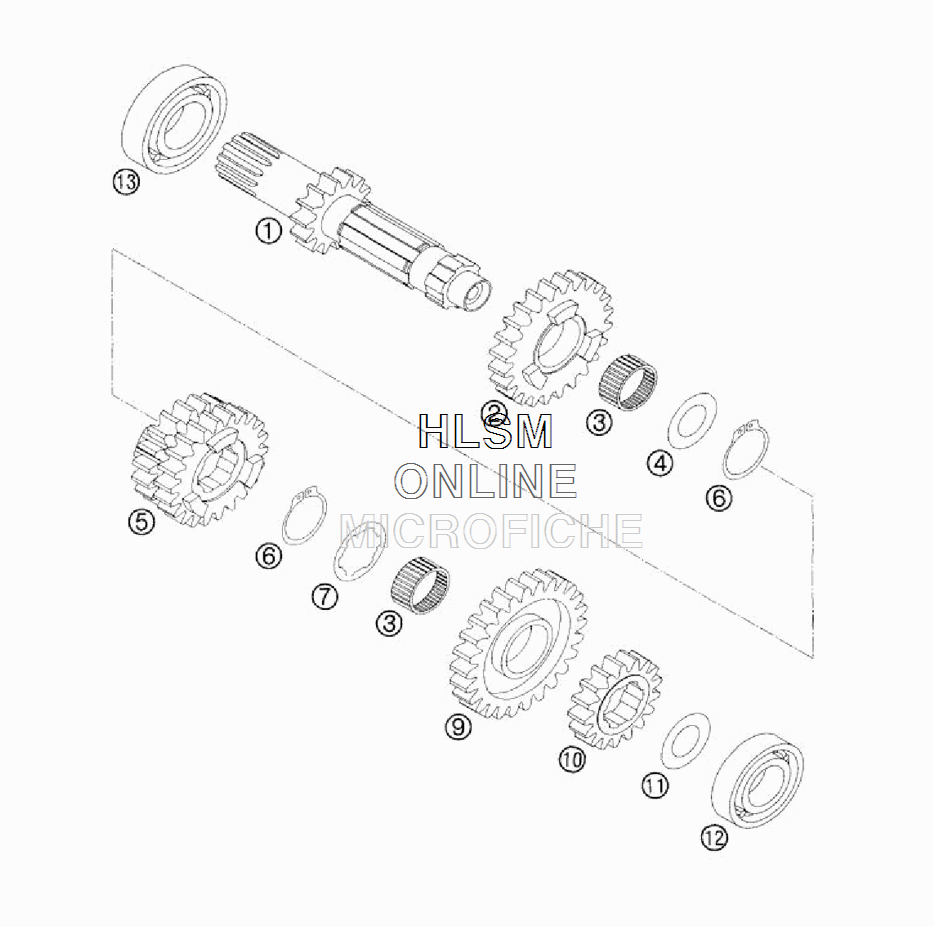

TRANSMISSION - MAIN SHAFT (USA) для Ktm 525 SMR - 2005 года выпуска`
-
№АртикулНазвание
-
159033001300 MAIN SHAFT-ZB 16-TMAIN SHAFT-ZB 16-T
-
259033005039 IDLER GEAR 5.G 24-T "39"IDLER GEAR 5.G 24-T "39"
-
30405222613 NEEDLE BEAR. IF 22X26X13 TNNEEDLE BEAR. IF 22X26X13 TN
-
459033031000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
559033003046 SLIDING GEAR 3/4.G 20/22-T"46"SLIDING GEAR 3/4.G 20/22-T"46"
-
60471250120 CIRCLIP DIN0471-25X1,2CIRCLIP DIN0471-25X1,2
-
759033030000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
959033006045 IDLER GEAR 6.G 21-T "45"IDLER GEAR 6.G 21-T "45"
-
1059033002037 SOLID GEAR 2.G 18-T "37"SOLID GEAR 2.G 18-T "37"
-
1156033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
120625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
130625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
