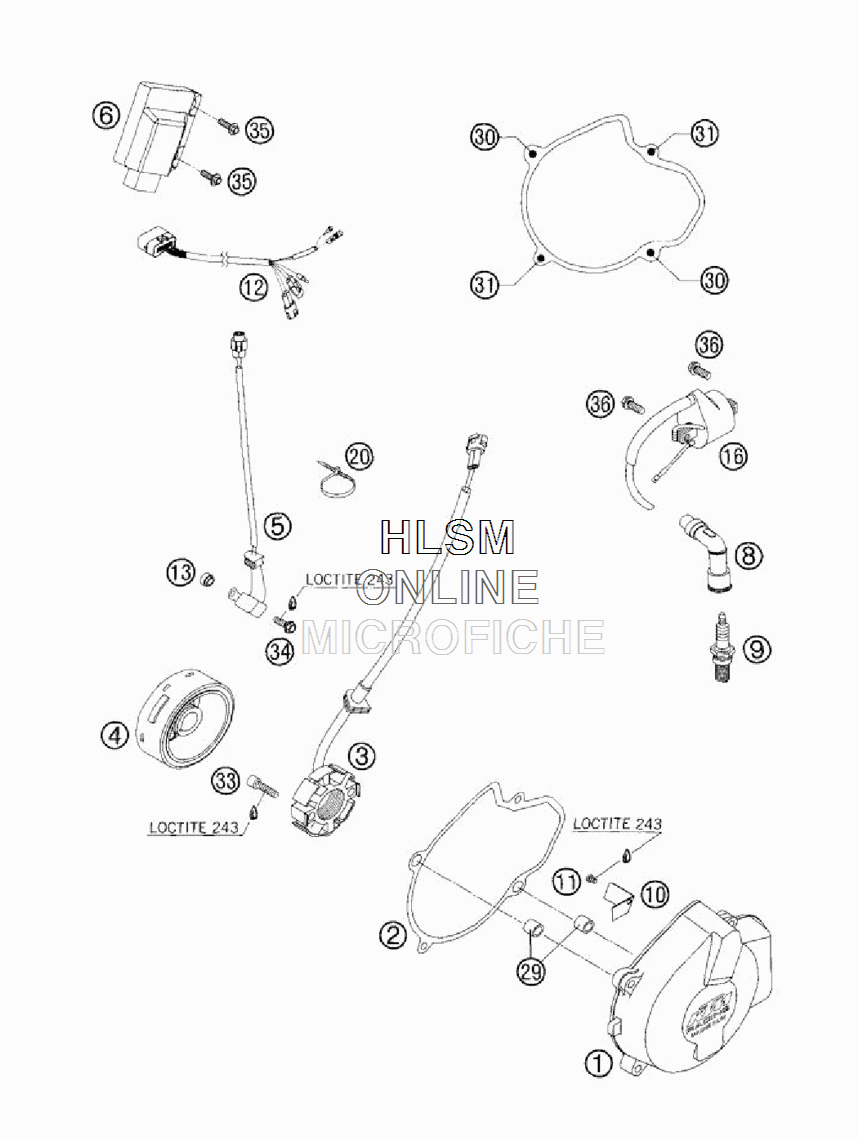

IGNITION SYSTEM 4K3A для Ktm 525 SMR - 2005 года выпуска

№

Артикул

Название
1

59030002500 IGNITION COVER 4K3A

IGNITION COVER 4K3A

21 730 ₽
2

59030040000 IGNITION COVER GASKET 0,8MM

IGNITION COVER GASKET 0,8MM

3 100 ₽
3

59039004100 STATOR CPL. 4K3A RACING

STATOR CPL. 4K3A RACING

45 680 ₽
4

59039005100 FLYWHEEL 4K3A RACING

FLYWHEEL 4K3A RACING

62 950 ₽
5

59039034000 PULSER COIL KOKUSAN 4K3-A/B

PULSER COIL KOKUSAN 4K3-A/B

20 650 ₽
6

59039031600 CDI UNIT

CDI UNIT

0 ₽
8

59039090100 SPARK PLUG CONNECT. VD05EG

SPARK PLUG CONNECT. VD05EG

14 980 ₽
9

59039093100 SPARK PLUG NGK DCPR8E

SPARK PLUG NGK DCPR8E

1 840 ₽
10

59030002050 SUPPORT FOR WIRE

SUPPORT FOR WIRE

1 220 ₽
11

0084040063 CYL.HEAD SCREW DIN0084-M 4X 6A

CYL.HEAD SCREW DIN0084-M 4X 6A

60 ₽
12

59439032000 WIRING HARNESS FOR CDI

WIRING HARNESS FOR CDI

15 450 ₽
13

59039009000 SPACER BUSHING 5,2X7X4,8

SPACER BUSHING 5,2X7X4,8

740 ₽
16

59039006000 IGNITIONCOIL KOKUSAN 4K3-A/B

IGNITIONCOIL KOKUSAN 4K3-A/B

15 300 ₽
20

44011076100 CABLE TIE 100/2,5MM BLACK

CABLE TIE 100/2,5MM BLACK

100 ₽
29

49030090000 DOWEL 9,8 X J X 10

DOWEL 9,8 X J X 10

290 ₽
30

0015060353 HH COLLAR SCREW M 6X35 WS=8

HH COLLAR SCREW M 6X35 WS=8

560 ₽
31

0015060303 HH COLLAR SCREW M 6X30 WS=8

HH COLLAR SCREW M 6X30 WS=8

560 ₽
33

0912050253 ALL SCREW DIN0912-M 5X25

ALL SCREW DIN0912-M 5X25

160 ₽
34

0015050163 HH COLLAR SCREW M 5X16 WS=8

HH COLLAR SCREW M 5X16 WS=8

410 ₽
35

0014060203 HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X20 WS=8

470 ₽
36

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
