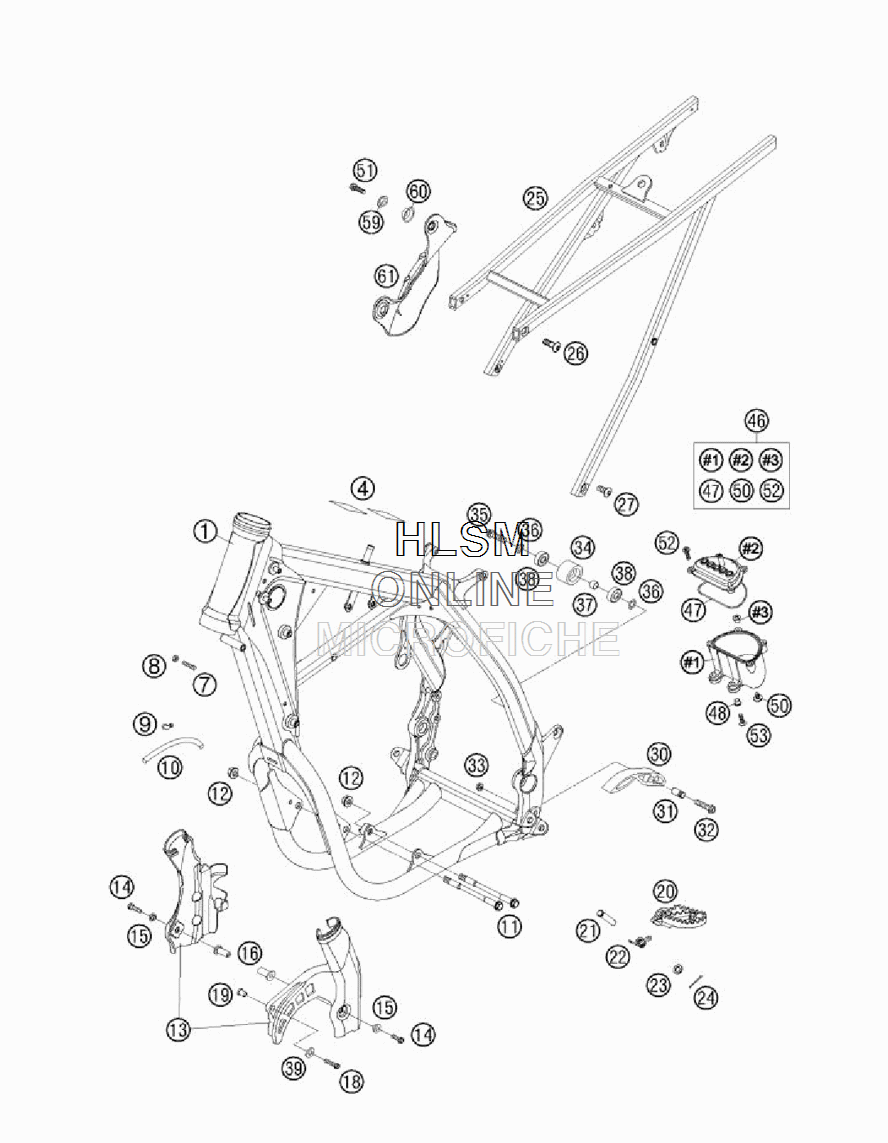

FRAME W/ SUB FRAME для Ktm 525 SMR - 2005 года выпуска

№

Артикул

Название
1

5940300180096 FRAME 450/525 SMR "DE05"

FRAME 450/525 SMR "DE05"

170 ₽
4

50307012000 ADH. FOIL TRANSP. 80X80 MM

ADH. FOIL TRANSP. 80X80 MM

330 ₽
7

59001037000 SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

560 ₽
8

0934080003 HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

320 ₽
9

50303089000 ANGEL PIECE

ANGEL PIECE

1 160 ₽
10

55007016001 PVC-HOSE 7X10 PER METER

PVC-HOSE 7X10 PER METER

1 640 ₽
11

59003013000 ENGINEBRAC.SCREW M10X123 WS=13

ENGINEBRAC.SCREW M10X123 WS=13

2 160 ₽
12

54310086100 SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

410 ₽
13

54803094100 FRAME PROTECTION SET

FRAME PROTECTION SET

4 820 ₽
14

0014050253 HH COLLAR SCREW M 5X25 WS=6

HH COLLAR SCREW M 5X25 WS=6

620 ₽
15

54803092060 BUSH F. FRAME PROTECTION

BUSH F. FRAME PROTECTION

820 ₽
16

54803092050 BLIND PLUG-IN NUT M5 WN 22A

BLIND PLUG-IN NUT M5 WN 22A

1 170 ₽
18

0015060353 HH COLLAR SCREW M 6X35 WS=8

HH COLLAR SCREW M 6X35 WS=8

560 ₽
19

59030060050 BUSHING F. SPROCKET COVER RAC.

BUSHING F. SPROCKET COVER RAC.

640 ₽
20

59003040250 FOOT PED L/S SILVER

FOOT PED L/S SILVER

11 770 ₽
20

59003041250 FOOT PED R/S SILVER

FOOT PED R/S SILVER

11 770 ₽
21

54803044000 BOLT FOR FOOT PED

BOLT FOR FOOT PED

3 330 ₽
22

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
23

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
24

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
25

59403002244 SUB FRAME CPL.

SUB FRAME CPL.

89 300 ₽
26

54510052100 SPROCKET SCREW-AH M8X26 WS=6

SPROCKET SCREW-AH M8X26 WS=6

500 ₽
27

54610052000 SPROCKET SCREW-AH M8X20 WS=6

SPROCKET SCREW-AH M8X20 WS=6

410 ₽
30

51103053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 110 ₽
31

51103053051 BUSHING 8,2X10X20

BUSHING 8,2X10X20

930 ₽
32

0015080353 HH COLLAR SCREW M 8X35 WS=10

HH COLLAR SCREW M 8X35 WS=10

410 ₽
33

54310086200 SELF LOCKING NUT M8 10.9

SELF LOCKING NUT M8 10.9

500 ₽
34

50203053000 CHAIN ROLL D=30MM

CHAIN ROLL D=30MM

1 810 ₽
35

0015080303 HH COLLAR SCREW M 8X30 WS=10

HH COLLAR SCREW M 8X30 WS=10

700 ₽
36

36003014000 LOCK WASHER 8MM

LOCK WASHER 8MM

290 ₽
37

74003021000 BUSHING 8.2 X 12 X 6

BUSHING 8.2 X 12 X 6

620 ₽
38

0625006087 GROOVED BALL BEAR. 608 2RS C3

GROOVED BALL BEAR. 608 2RS C3

5 760 ₽
39

0125060003 WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

120 ₽
46

59431096000 INTERCEPTING TANK CPL.

INTERCEPTING TANK CPL.

17 260 ₽
47

0770800021 O-RING 80,00X2,00 VITON

O-RING 80,00X2,00 VITON

1 840 ₽
48

58314060050 SPACER BUSH. F. SPEEDOMETER BRACKET

SPACER BUSH. F. SPEEDOMETER BRACKET

1 260 ₽
50

0014060103 HH COLLAR SCREW M 6X10 WS=8

HH COLLAR SCREW M 6X10 WS=8

500 ₽
51

0015060203 HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X20 WS=8

500 ₽
52

0017060203 EJOT PT SCREW K60X20 WS=6

EJOT PT SCREW K60X20 WS=6

290 ₽
53

0014060253 HH COLLAR SCREW M 6X25 WS=8

HH COLLAR SCREW M 6X25 WS=8

290 ₽
59

50308052000 BUSH FOR SPOILER 6X11X16X5 MM

BUSH FOR SPOILER 6X11X16X5 MM

330 ₽
60

72210079000 BUCKET

BUCKET

680 ₽
61

59405011000 HEAT SHIELD

HEAT SHIELD

5 650 ₽
