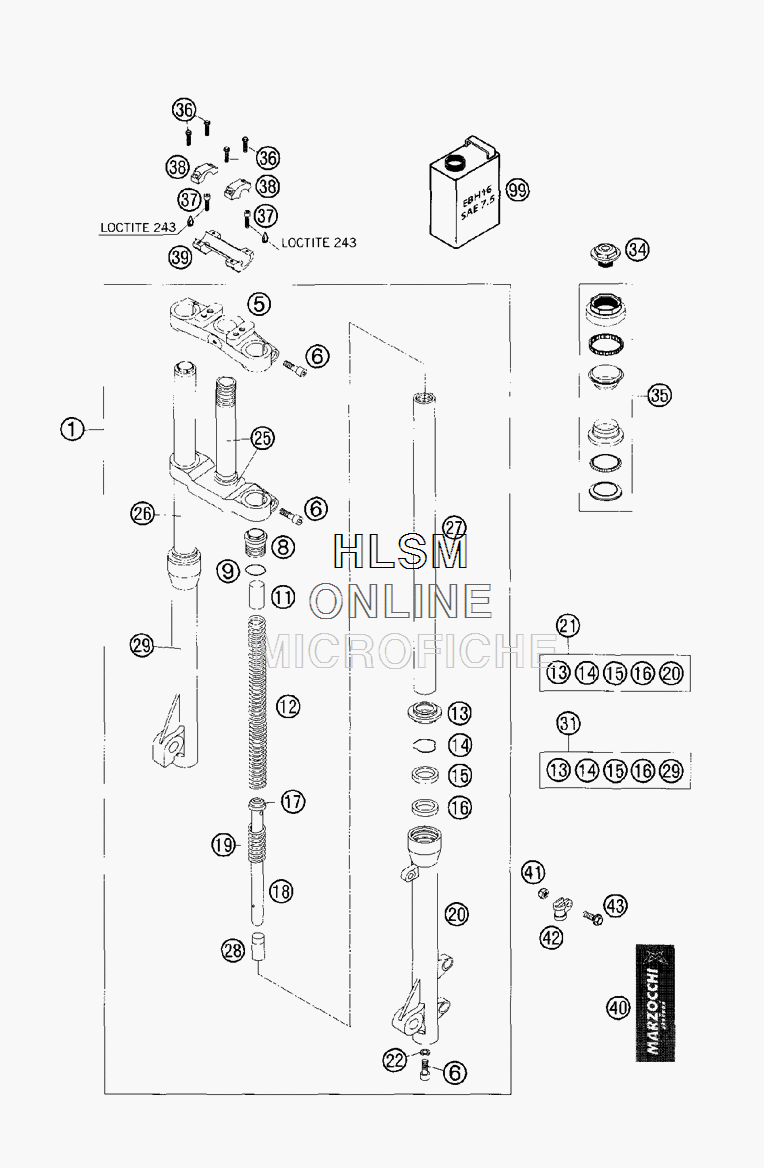

FRONT FORK MARZOCCHI для Ktm 50 Sr Adventure - 2005 года выпуска
-
№АртикулНазвание
-
145101000544 FORK CPL. MARLFORK CPL. MARL
-
57501476A TOP FORK PLATETOP FORK PLATE
-
60912080303 AH SCREW DIN0912-M 8X30AH SCREW DIN0912-M 8X30
-
87504212AC PLUG CAPPLUG CAP
-
97528010 O-RINGO-RING
-
117518076 PRE LOAD BUSH 25X2,5X100PRE LOAD BUSH 25X2,5X100
-
1275141169 SPRING 2N/MMSPRING 2N/MM
-
1275141214 SPRING 2,5N/MMSPRING 2,5N/MM
-
137533297 DUST SEALDUST SEAL
-
147523264 STOP RINGSTOP RING
-
157528230 OIL SEAL 32/42/6,5-9,5OIL SEAL 32/42/6,5-9,5
-
167522166AA WASHER D42X32,5X1,5WASHER D42X32,5X1,5
-
177524157 PISTON RING D32 (ONLY FOR REBOUND DAMPINGPISTON RING D32 (ONLY FOR REBOUND DAMPING
-
1878031047 PISTON ROD REBOUND (REBOUND DAMPING - LEFT)PISTON ROD REBOUND (REBOUND DAMPING - LEFT)
-
1878031045 PISTON ROD COMPRESSION (COMPRESSION DAMP -RIGHT)PISTON ROD COMPRESSION (COMPRESSION DAMP -RIGHT)
-
1975141015 REBOUND SPRINGREBOUND SPRING
-
2075031570A SLIDER US 50 LCSLIDER US 50 LC
-
2175031570A/R SLIDER CPL. US 50LCSLIDER CPL. US 50LC
-
227522225 WASHER 14X8X1,5WASHER 14X8X1,5
-
2577051095 BOT FORK PLATE CPL.BOT FORK PLATE CPL.
-
267708249/R FORK TUBE R/SFORK TUBE R/S
-
277708250/R FORK TUBE USFORK TUBE US
-
287512068 FOOT BUFFERFOOT BUFFER
-
2975031571A SLIDER R/SSLIDER R/S
-
3175031571A/R SLIDER CPL. R/S 50LCSLIDER CPL. R/S 50LC
-
3450301036000 STEER.HEAD SCREW M20XI,5 WS=27STEER.HEAD SCREW M20XI,5 WS=27
-
3545101081100 STEER STEM B. CPL.STEER STEM B. CPL.
-
360015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
370912100250 AH SCREW DIN6912-M10X25,10.9,LAH SCREW DIN6912-M10X25,10.9,L
-
3850301038000 HANDLEBAR CLAMP D=22MMHANDLEBAR CLAMP D=22MM
-
3945101039000 HANDLEBAR SUPPORT D=22MMHANDLEBAR SUPPORT D=22MM
-
407547325 STICKER LEFT SIDE MARZOCCHISTICKER LEFT SIDE MARZOCCHI
-
407547331 STICKER RIGHT SIDE MARZOCCHISTICKER RIGHT SIDE MARZOCCHI
-
410985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
4245001070000 BRAKE CABLE CLAMP RSGU 9/12BRAKE CABLE CLAMP RSGU 9/12
-
430015050203 HH COLLAR SCREW M 5X20 WS=8HH COLLAR SCREW M 5X20 WS=8
-
997550013 FORKOIL EBH16 SAE7.5FORKOIL EBH16 SAE7.5
