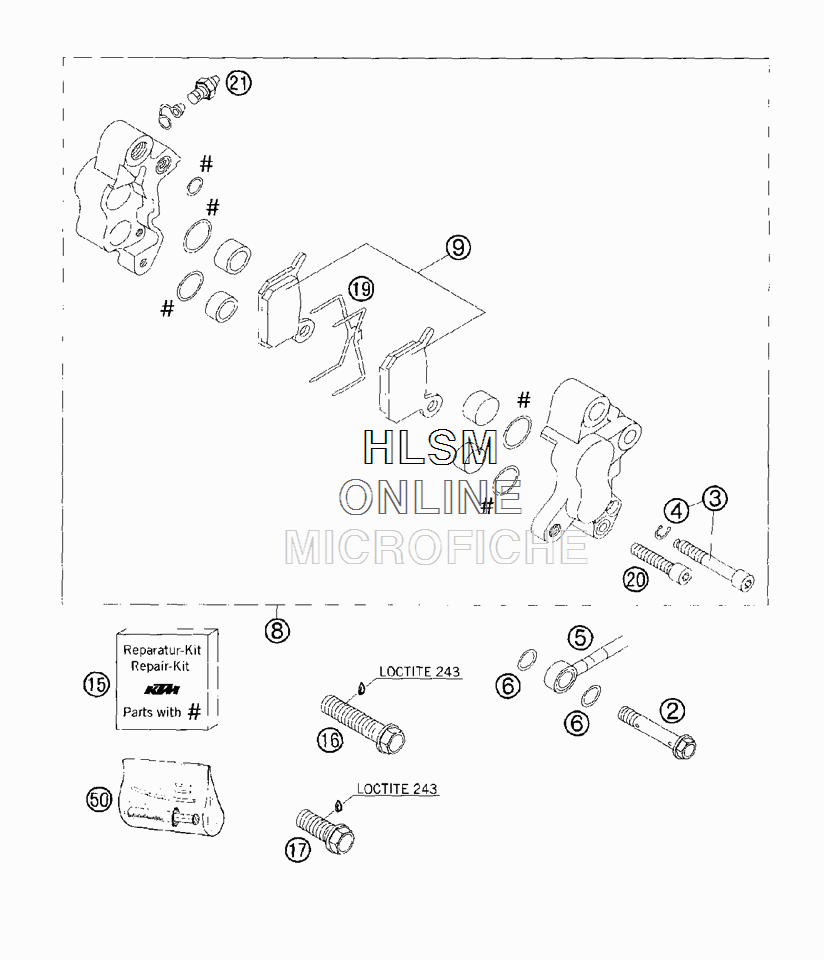

BRAKE CALIPER FRONT для Ktm 50 Sr Adventure - 2005 года выпуска

  • №
    Артикул
    Название
  • 2
    45113025000 HOLLOW SCREW M6X3450
    HOLLOW SCREW M6X3450
  • 3
    45113125000 AH SCREW+CIRCLIP
    AH SCREW+CIRCLIP
  • 4
    0799025000 TAB WASHER DIN6799 RS2,5
    TAB WASHER DIN6799 RS2,5
  • 5
    45113012100 BRAKE HOSE FR.
    BRAKE HOSE FR.
  • 6
    0770080019 O-RING 8,00X1,00 EPDM
    O-RING 8,00X1,00 EPDM
  • 8
    45113015000 BRAKE CALIPER CPL.FR.
    BRAKE CALIPER CPL.FR.
  • 9
    45113030000 BRAKE PAD SET
    BRAKE PAD SET
  • 15
    45113019000 REP. KIT SEAL RING
    REP. KIT SEAL RING
  • 16
    0015080350 HH COLLAR SCREW MX8X35 WL.WS10
    HH COLLAR SCREW MX8X35 WL.WS10
  • 17
    0015080203 HH COLLAR SCREW M 8X20 WS=10
    HH COLLAR SCREW M 8X20 WS=10
  • 19
    45113018000 RETAINING SPRING
    RETAINING SPRING
  • 20
    0912050203 AH SCREW DIN0912-41 5X20
    AH SCREW DIN0912-41 5X20
  • 21
    45113020000 BREATHER SCREW
    BREATHER SCREW
  • 50
    45119050000 BLEEDER INJECTION-SET 50-105
    BLEEDER INJECTION-SET 50-105
