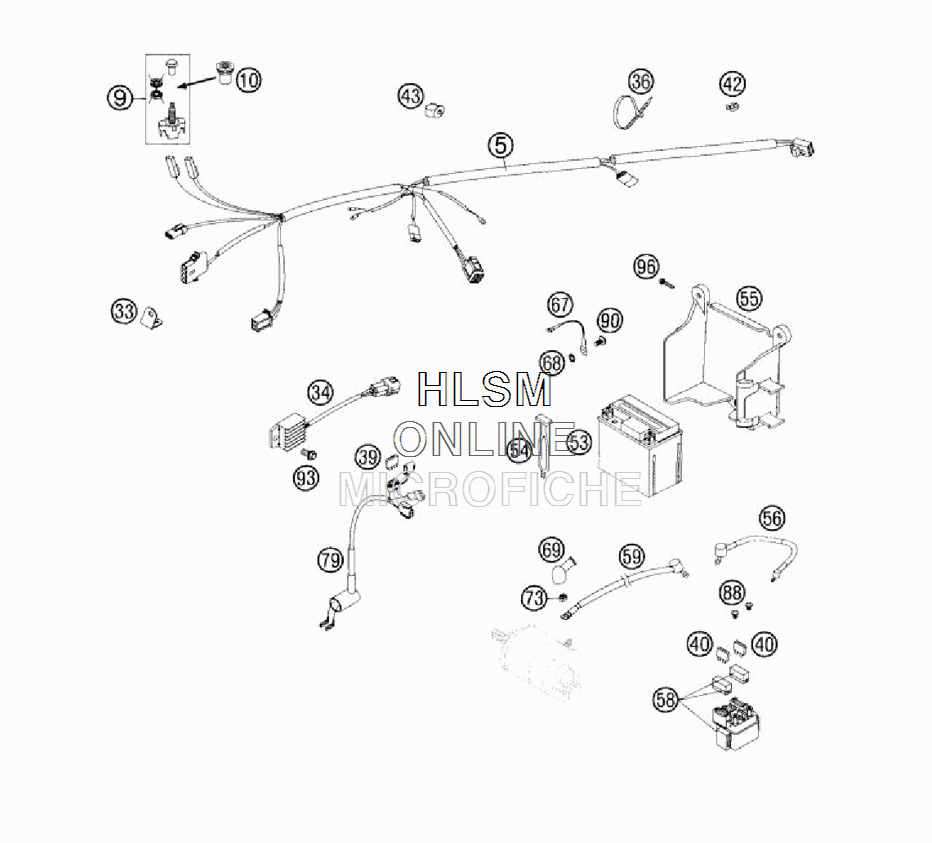

WIRING HARNESS (USA) для Ktm 400 EXC RFS - 2005 года выпуска`
-
№АртикулНазвание
-
559411075100 WIRING HARNESS RACINGWIRING HARNESS RACING
-
955011599000 PULL SWITCH LOOSEPULL SWITCH LOOSE
-
1054814060050 SPEC. NUT E PULL SWITCH WS=17SPEC. NUT E PULL SWITCH WS=17
-
3354611090000 RETAINING PLATE FOR BATTERYRETAINING PLATE FOR BATTERY
-
3480011034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
3644011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
3644011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
3958011109005 FUSE 5 AFUSE 5 A
-
4058011109110 FUSE 10 AFUSE 10 A
-
4257013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
4358111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
5358511053000 BATTERY 12V 4AH YTX5L-BSBATTERY 12V 4AH YTX5L-BS
-
5450303018000 RUBBER FOR CENTER STANDRUBBER FOR CENTER STAND
-
5559011055100 BATTERY CARRIER FLAT BLACKBATTERY CARRIER FLAT BLACK
-
5658711086000 WIRING HARNESS BATTERYWIRING HARNESS BATTERY
-
5858211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
5958411059100 STARTERCABLE 700 MMSTARTERCABLE 700 MM
-
6758411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
6858411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
6958440099000 PROTECTION CAP E STARTER ENG.PROTECTION CAP E STARTER ENG.
-
730985060003 SELF LOCK. NUT DIN0985-M6SELF LOCK. NUT DIN0985-M6
-
7959011079000 FAN WIRING HARNESSFAN WIRING HARNESS
-
880902060083 AH OVAL SCREW ISO 7380 M6X8AH OVAL SCREW ISO 7380 M6X8
-
900014060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
-
930015060123 HH COLLAR SCREW M6X12 WS=8HH COLLAR SCREW M6X12 WS=8
-
960017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
