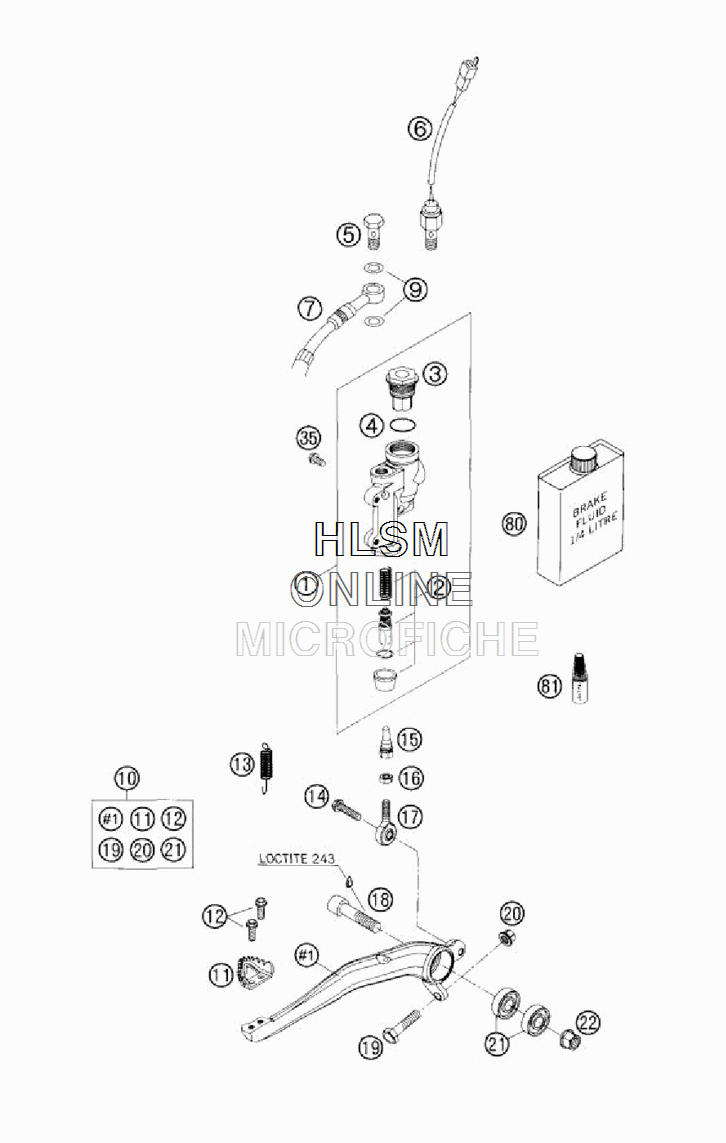

REAR BRAKE CONTROL для Ktm 400 EXC RFS - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    54813060100 REAR BRAKE CYLINDER CPL.
    REAR BRAKE CYLINDER CPL.
  • 2
    54813061000 REPAIR KIT PISTON 13MM
    REPAIR KIT PISTON 13MM
  • 3
    54813062100 REAR BRAKE CYL. COVER CPL.
    REAR BRAKE CYL. COVER CPL.
  • 4
    54813063000 FOOT-BRAKE CYL. GASKET
    FOOT-BRAKE CYL. GASKET
  • 5
    54813020100 HOLLOW SCREW BLACK M10X1 X19
    HOLLOW SCREW BLACK M10X1 X19
  • 6
    50311051100 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 7
    54813070000 BRAKE HOSE REAR 655MM
    BRAKE HOSE REAR 655MM
  • 9
    42013226000 CU-SEAL RING DIN7603-10X16X1
    CU-SEAL RING DIN7603-10X16X1
  • 10
    54813050044 FOOT BRAKE LEVER CPL.
    FOOT BRAKE LEVER CPL.
  • 11
    54813051000 STEP PLATE FOR BRAKE LEVER
    STEP PLATE FOR BRAKE LEVER
  • 12
    0015050123 HH COLLAR SCREW M5X12 WS=8
    HH COLLAR SCREW M5X12 WS=8
  • 13
    54603062000 RETURN SPRING FOR BRAKE LEVER
    RETURN SPRING FOR BRAKE LEVER
  • 14
    0015060203 HH COLLAR SCREW M6X20 WS=8
    HH COLLAR SCREW M6X20 WS=8
  • 15
    54813056000 PUSH ROD L=28MM
    PUSH ROD L=28MM
  • 16
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 17
    54813055000 SWIVEL HEAD KA6
    SWIVEL HEAD KA6
  • 18
    0912100406 AH SCREW DIN6912 M10X40 10.9
    AH SCREW DIN6912 M10X40 10.9
  • 19
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 20
    46030045000 COLLAR NUT M8 WS=10
    COLLAR NUT M8 WS=10
  • 21
    0625060002 BALL BEARING SKF6000-2RS1
    BALL BEARING SKF6000-2RS1
  • 22
    54630044000 COLLAR NUT M1O WS=13
    COLLAR NUT M1O WS=13
  • 35
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 80
    306054 BRAKE FLUID DOT 5.1
    BRAKE FLUID DOT 5.1
  • 81
    6899785 LOCTITE 243 BLUE 6CCM
    LOCTITE 243 BLUE 6CCM
