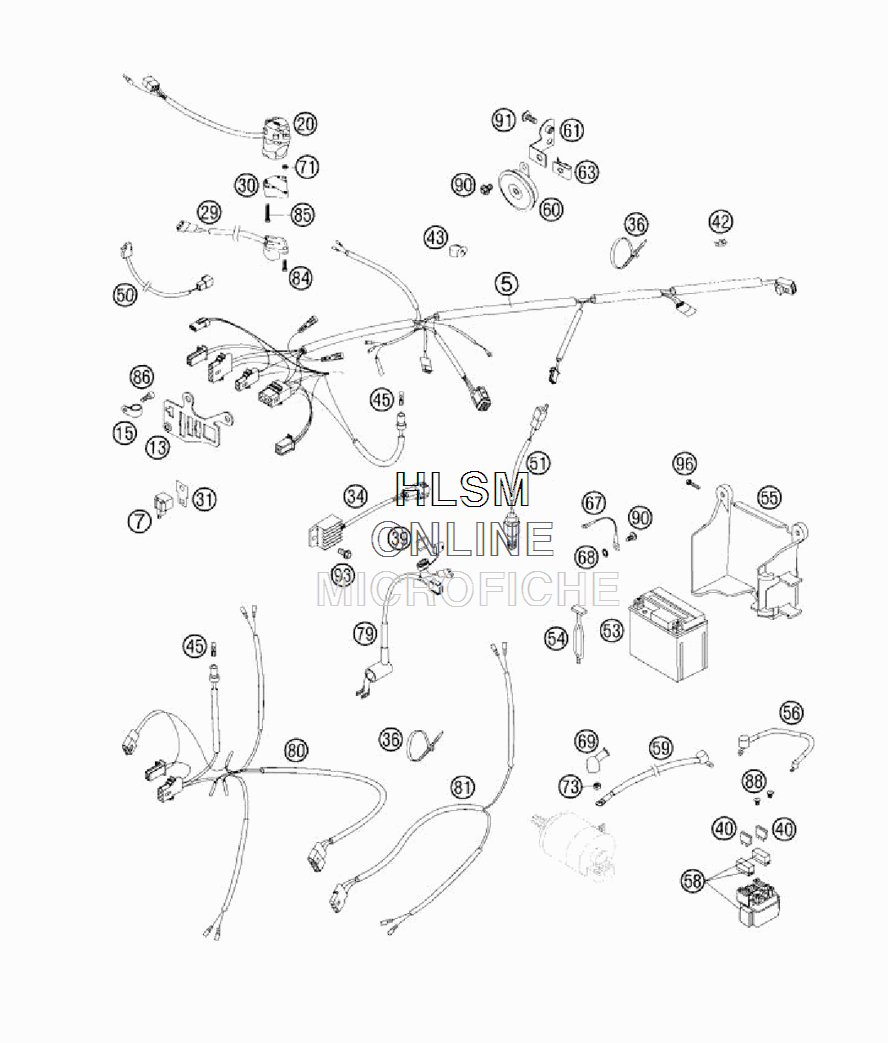

WIRING HARNESS (EU/AUS) для Ktm 400 EXC RFS - 2005 года выпуска

  • №
    Артикул
    Название
  • 5
    59411075000 WIRING HAR.
    WIRING HAR.
  • 7
    44611207200 FLASHER UNIT
    FLASHER UNIT
  • 13
    54811083100 SUPPORT BRACKET
    SUPPORT BRACKET
  • 15
    57013070100 PVC-CLAMP 7,9 MM HEYCO 3355
    PVC-CLAMP 7,9 MM HEYCO 3355
  • 20
    50311070000 H.LIGHT SWITCH CEV 2/4TAKT (SYMBOLS WHITE)
    H.LIGHT SWITCH CEV 2/4TAKT (SYMBOLS WHITE)
  • 29
    50311029000 FLASHER SWITCH CEV
    FLASHER SWITCH CEV
  • 30
    13011070060 ADAPTER FOR FLASHER SWITCH
    ADAPTER FOR FLASHER SWITCH
  • 31
    58211031100 BRACKET FOR FLASHER RELAYS
    BRACKET FOR FLASHER RELAYS
  • 34
    80011034000 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 36
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 36
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 39
    58011109005 FUSE 5A
    FUSE 5A
  • 40
    58011109110 FUSE 10 A
    FUSE 10 A
  • 42
    57013072000 WIRING HOLDER 12MM
    WIRING HOLDER 12MM
  • 42
    57013072100 WIRING HOLDER 16MM
    WIRING HOLDER 16MM
  • 43
    58111076000 CABLE SUPPORT KHS NR:150-47610
    CABLE SUPPORT KHS NR:150-47610
  • 45
    49111425000 BULB 12V 1,2W (W2X4,6D)
    BULB 12V 1,2W (W2X4,6D)
  • 50
    50311050100 FRONT BRAKE LIGHT SWITCH
    FRONT BRAKE LIGHT SWITCH
  • 51
    50311051100 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 53
    58511053000 BATTERY 12V 4AH YTX5L-BS
    BATTERY 12V 4AH YTX5L-BS
  • 54
    50303018000 RUBBER FOR CENTER STAND
    RUBBER FOR CENTER STAND
  • 55
    59011055100 BATTERY CARRIER PLASTBLACK
    BATTERY CARRIER PLASTBLACK
  • 56
    58711086000 WIRING HARNESS BATTERY
    WIRING HARNESS BATTERY
  • 58
    58211058000 STARTER RELAY 12V
    STARTER RELAY 12V
  • 59
    58411059100 STARTERCABLE 700 MM
    STARTERCABLE 700 MM
  • 60
    50311060000 DC HORN 12V K80/L LEB
    DC HORN 12V K80/L LEB
  • 61
    59011061000 BRACKET
    BRACKET
  • 63
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 67
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 68
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 69
    58440099000 PROTECTION CAP F STARTER ENG.
    PROTECTION CAP F STARTER ENG.
  • 71
    0934040003 HEXAGON NUT DIN0934-M 4
    HEXAGON NUT DIN0934-M 4
  • 73
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 79
    59011079000 FAN WIRING HARNESS
    FAN WIRING HARNESS
  • 80
    59011080000 FLASH. WIRINGHARNESS FRONT
    FLASH. WIRINGHARNESS FRONT
  • 81
    59011081000 FLASH. WIRINGHARNESS REAR
    FLASH. WIRINGHARNESS REAR
  • 84
    0985040163 FLAT HEAD SCREW DIN7985-M4X16
    FLAT HEAD SCREW DIN7985-M4X16
  • 85
    0084040223 CYL.HEAD SCREW DIN0084-M4X22A
    CYL.HEAD SCREW DIN0084-M4X22A
  • 86
    0912050083 AH SCREW DIN 912 M5X8
    AH SCREW DIN 912 M5X8
  • 88
    0902060083 AH OVAL SCREW ISO 7380 M6X8
    AH OVAL SCREW ISO 7380 M6X8
  • 90
    0014060103 HH COLLAR SCREW M6X10 WS=8
    HH COLLAR SCREW M6X10 WS=8
  • 91
    0014060153 HH COLLAR SCREW M6X15 WS=8
    HH COLLAR SCREW M6X15 WS=8
  • 93
    0015060123 HH COLLAR SCREW M6X12 WS=8
    HH COLLAR SCREW M6X12 WS=8
  • 96
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
