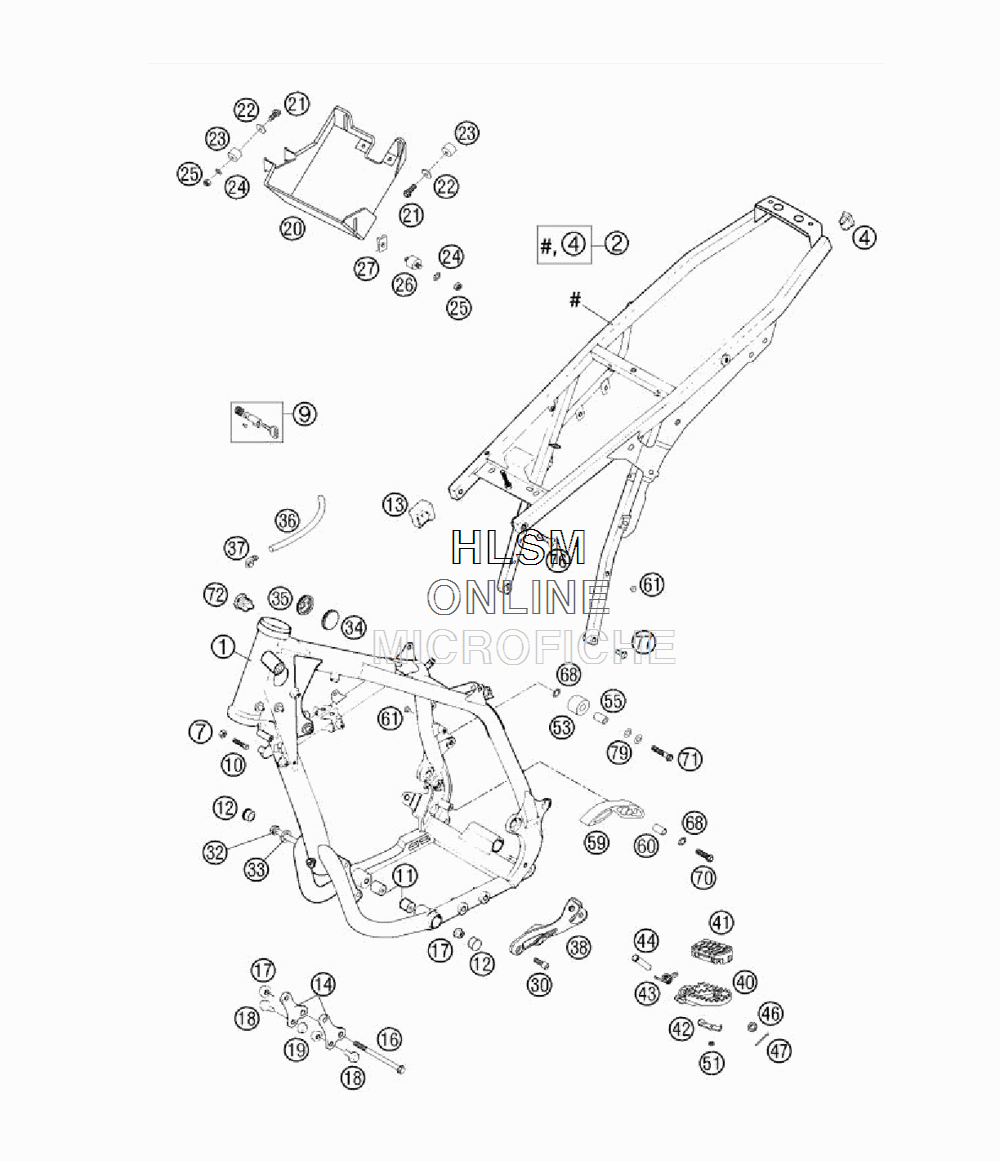

FRAME W/ SUB FRAME для Ktm 625 SMC - 2004 года выпуска`

№

Артикул

Название
1

5830310174490 FRAME CPL. "W4"

FRAME CPL. "W4"

0 ₽
2

5840300234490 SUBFRAME CPL. STEEL SILVER

SUBFRAME CPL. STEEL SILVER

125 520 ₽
4

58303002090 PLUG 12 X 17 MM

PLUG 12 X 17 MM

300 ₽
7

0934080003 HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

320 ₽
9

71003007000 STEERING HEAD LOCK CPL. ZADI

STEERING HEAD LOCK CPL. ZADI

7 420 ₽
10

59001037000 SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

560 ₽
11

58003012000 SPACER ROLLER 10,3X20X22

SPACER ROLLER 10,3X20X22

2 720 ₽
12

71001012100 PVC CAP D=22MM

PVC CAP D=22MM

590 ₽
13

58307015000 TANK SUPPORT

TANK SUPPORT

1 790 ₽
14

58303055000 ENGINE SUPPORT AGW

ENGINE SUPPORT AGW

3 410 ₽
16

58403013000 ENGINE BRAC.SCREW M10X110 WS13

ENGINE BRAC.SCREW M10X110 WS13

3 780 ₽
17

54630044000 COLLAR NUT M10 WS=13

COLLAR NUT M10 WS=13

680 ₽
18

49109481052 HH COLLAR SCREW M 8X16 WS=13

HH COLLAR SCREW M 8X16 WS=13

590 ₽
19

54310086200 SELF LOCKING NUT M8 10.9

SELF LOCKING NUT M8 10.9

500 ₽
20

58403002370 BATTERY BOX

BATTERY BOX

2 220 ₽
21

0015060103 HH COLLAR SCREW M 6X10 WS=8

HH COLLAR SCREW M 6X10 WS=8

500 ₽
22

0021060003 WASHER DIN9021-A 6,4

WASHER DIN9021-A 6,4

290 ₽
23

43205062100 RUBBER GROMMET 20X15-M6X10 (1)

RUBBER GROMMET 20X15-M6X10 (1)

3 740 ₽
24

0797060003 TOOTH LOCK WASH. DIN6797-A 6,4

TOOTH LOCK WASH. DIN6797-A 6,4

90 ₽
25

0934060003 HEXAGON NUT DIN0934-M 6

HEXAGON NUT DIN0934-M 6

120 ₽
26

58403002010 RUBBER GROMMET 20X15-M6X8-(2)

RUBBER GROMMET 20X15-M6X8-(2)

2 630 ₽
27

54603048100 RANGE CHANGE METAL NUT M6

RANGE CHANGE METAL NUT M6

970 ₽
30

0912100250 AH SCREW DIN6912-M10X25,10.9,L

AH SCREW DIN6912-M10X25,10.9,L

820 ₽
32

58403014000 ENGINE BRAC.SCREW M10X160 WS13

ENGINE BRAC.SCREW M10X160 WS13

4 880 ₽
33

31004001100 WASHER 10,5 X 21 X 3

WASHER 10,5 X 21 X 3

380 ₽
34

54606004000 PLUG 37MM

PLUG 37MM

490 ₽
35

54606004100 PLUG 37MM PERFORATED

PLUG 37MM PERFORATED

490 ₽
36

55007016001 PVC-HOSE 7X10 PER METRE

PVC-HOSE 7X10 PER METRE

1 640 ₽
37

50303089000 ANGEL PIECE

ANGEL PIECE

1 160 ₽
38

58403038000 FOOTREST BRACKET L/S ALU

FOOTREST BRACKET L/S ALU

21 290 ₽
40

59003040250 FOOT PED L/S SILVER

FOOT PED L/S SILVER

11 770 ₽
40

59003041250 FOOT PED R/S SILVER

FOOT PED R/S SILVER

11 770 ₽
41

60003040010 FOOTREST RUBBER FRONT L/S

FOOTREST RUBBER FRONT L/S

5 120 ₽
41

60003041010 FOOTREST RUBBER FRONT R/S

FOOTREST RUBBER FRONT R/S

5 120 ₽
42

60003044010 CLOSING PANEL FRONT L/S R/S

CLOSING PANEL FRONT L/S R/S

1 400 ₽
43

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
44

54803044000 BOLT FOR FOOT PED

BOLT FOR FOOT PED

3 330 ₽
46

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
47

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
51

0985050003 SELF LOCKING NUT DIN0985-M 5

SELF LOCKING NUT DIN0985-M 5

290 ₽
53

58403060000 CHAIN ROLL 12X29X22,5

CHAIN ROLL 12X29X22,5

1 400 ₽
55

58403060065 BUSH CHAIN ROLL 8X12X23

BUSH CHAIN ROLL 8X12X23

700 ₽
59

51103053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 110 ₽
60

51103053051 BUSHING 8,2X10X20

BUSHING 8,2X10X20

930 ₽
61

54403135000 PLASTIC CAP SFL10

PLASTIC CAP SFL10

380 ₽
68

36003014000 LOCK WASHER 8MM

LOCK WASHER 8MM

290 ₽
70

0015080303 HH COLLAR SCREW M 8X30 WS=10

HH COLLAR SCREW M 8X30 WS=10

700 ₽
71

0015080453 HH COLLAR SCREW M 8X45 WS=10

HH COLLAR SCREW M 8X45 WS=10

410 ₽
72

42007049000 PLASTIC CAP

PLASTIC CAP

350 ₽
76

54510052100 SPROCKET SCREW-AH M8X26 WS=6

SPROCKET SCREW-AH M8X26 WS=6

500 ₽
77

54610052000 SPROCKET SCREW-AH M8X20 WS=6

SPROCKET SCREW-AH M8X20 WS=6

410 ₽
79

0125080003 WASHER DIN0125-A 8,4

WASHER DIN0125-A 8,4

120 ₽
