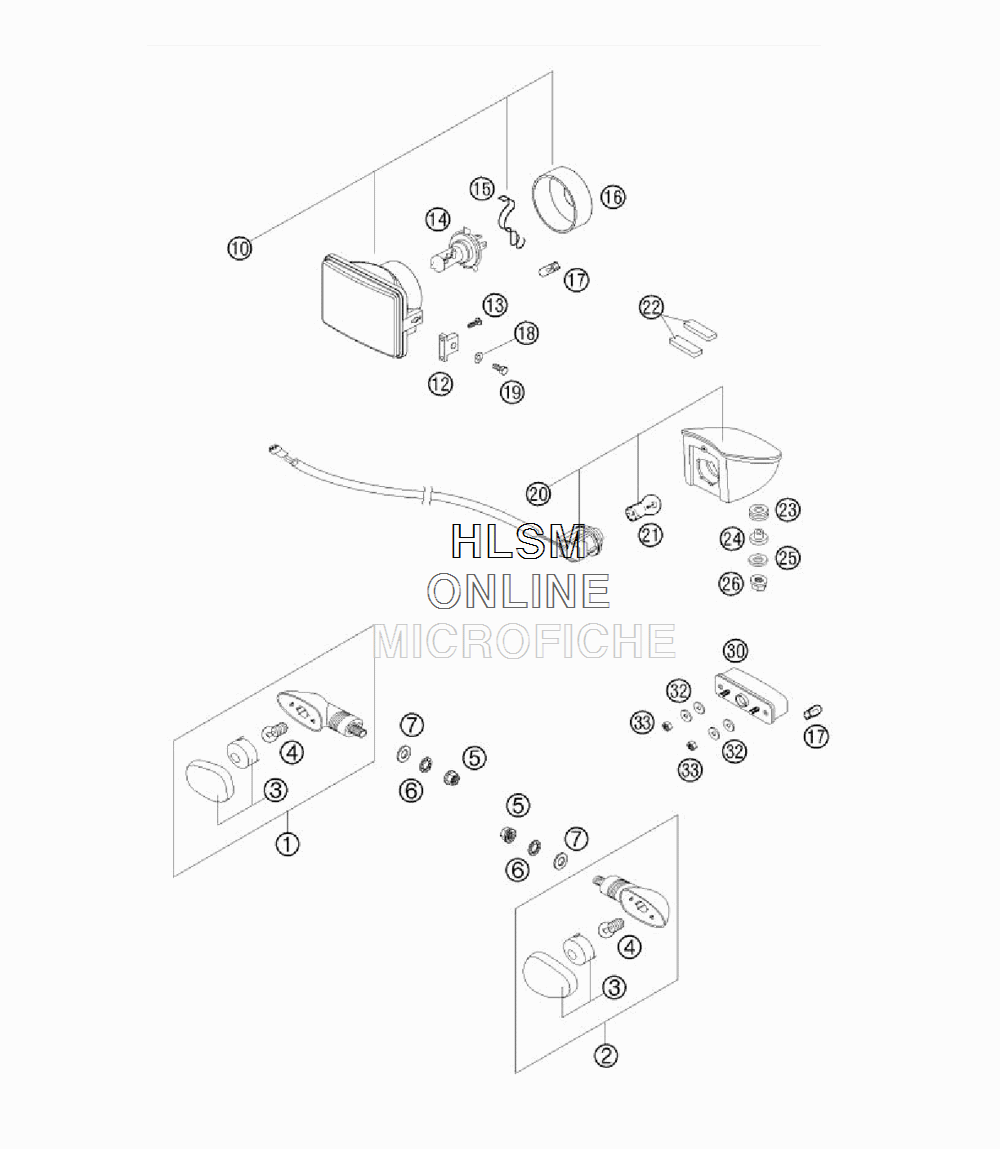

HEADLIGHT W/ REAR LIGHT - FLASHER для Ktm 625 SMC - 2004 года выпуска
-
№АртикулНазвание
-
158414026100 FLASHER CPL.FRONT R/S REAR L/S WHITEFLASHER CPL.FRONT R/S REAR L/S WHITE
-
258414025100 FLASHER CPL.FRONT L/S REAR R/S WHITEFLASHER CPL.FRONT L/S REAR R/S WHITE
-
358414028100 FLASHER LENS L/S & R/S WHITE,ORANGEFLASHER LENS L/S & R/S WHITE,ORANGE
-
444111015100 BULB 12V 10W (BA15S)BULB 12V 10W (BA15S)
-
558414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
60797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
70125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
1059014002000 HEAD LIGHT 186(RI)"1003202 R" RIGHT TRAFFICHEAD LIGHT 186(RI)"1003202 R" RIGHT TRAFFIC
-
1059014002100 HEAD LIGHT 186(LE)"1003203 L" LEFT TRAFFICHEAD LIGHT 186(LE)"1003203 L" LEFT TRAFFIC
-
1058414001300 HEAD LIGHT SAE 547 USA H4HEAD LIGHT SAE 547 USA H4
-
1258414010100 HEAD LIGHT SUPPORTHEAD LIGHT SUPPORT
-
130016040183 SCREW FOR PLASTIC D=4X18SCREW FOR PLASTIC D=4X18
-
1454611038012 BULB HS1 12V 35/35W WHITEBULB HS1 12V 35/35W WHITE
-
1457111038000 BULB H4 12V 60/55W (P43T)BULB H4 12V 60/55W (P43T)
-
1549011436100 BULB HOLDER EU/AUS/GBBULB HOLDER EU/AUS/GB
-
1650211537000 RUBBER CAPRUBBER CAP
-
1749011435000 BULB 12V 5W (W2,1X9,5D)BULB 12V 5W (W2,1X9,5D)
-
180125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
190933060203 HH SCREW DIN0933-M 6X20HH SCREW DIN0933-M 6X20
-
2058414040100 REAR LIGHT CPL.REAR LIGHT CPL.
-
2158414042000 BULB 12V 21/5W (BAY15S)REINFO.BULB 12V 21/5W (BAY15S)REINFO.
-
2258414040051 METAMOLL FOR REARLIGHT 15MM X 50MM X 5MMMETAMOLL FOR REARLIGHT 15MM X 50MM X 5MM
-
2341001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
2458714048000 REAR LIGHT BUSHINGREAR LIGHT BUSHING
-
2551006097000 WASHER 6,2X22X1,ST30,W.GALV.WASHER 6,2X22X1,ST30,W.GALV.
-
2656509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
3058414047000 LICENSE-PLATE ILLUMINATIONLICENSE-PLATE ILLUMINATION
-
320021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
330985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
