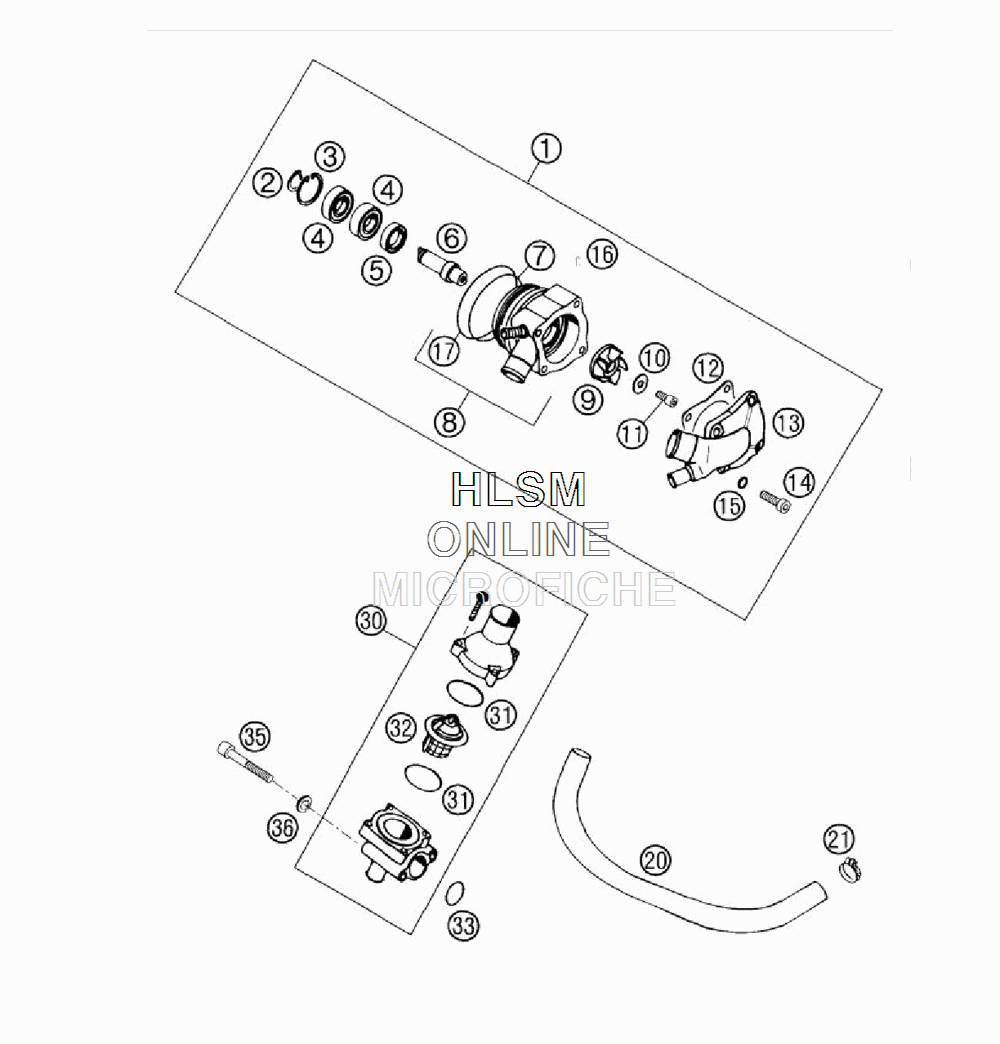

WATER PUMP для Ktm 625 SMC - 2004 года выпуска`
-
№АртикулНазвание
-
158335050044 WATER PUMP MECHANIC CPL.WATER PUMP MECHANIC CPL.
-
20471120010 CIRCLIP DIN0471-12X1CIRCLIP DIN0471-12X1
-
30472280120 CIRCLIP DIN0472-28X1,2CIRCLIP DIN0472-28X1,2
-
40625060016 GROOV.BALL BEAR. 6001.2RSR C3GROOV.BALL BEAR. 6001.2RSR C3
-
50760152472 SHAFT SEAL RING 15X24X7 A-DUOSHAFT SEAL RING 15X24X7 A-DUO
-
654435010000 WATER PUMP SHAFTWATER PUMP SHAFT
-
70770047015 O-RING 47,00X1,50 NBR 70O-RING 47,00X1,50 NBR 70
-
858035002644 WATER PUMP CASE CPL. 4TWATER PUMP CASE CPL. 4T
-
956535005300 WATER PUMP WHEELWATER PUMP WHEEL
-
100021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
110912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
1256535003300 WATER PUMP COVER GASKETWATER PUMP COVER GASKET
-
1358335001244 WATER PUMP COVERWATER PUMP COVER
-
140984060203 AH SCREW DIN6912-M 6X20 8.8AH SCREW DIN6912-M 6X20 8.8
-
150603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
160402025580 NEEDLEROLL.DIN5402 NRB 2,5X5,8NEEDLEROLL.DIN5402 NRB 2,5X5,8
-
170770049025 O-RING 49,00X2,50 NBRO-RING 49,00X2,50 NBR
-
2058335025001 RADIATOR HOSE(REENFORCED)12X3RADIATOR HOSE(REENFORCED)12X3
-
2158335099000 HOSE CLAMP GEMI 10-16HOSE CLAMP GEMI 10-16
-
3058335013044 THERMOSTAT CPL. 70 DGTHERMOSTAT CPL. 70 DG
-
310770320020 O-RING 32,00X2,00O-RING 32,00X2,00
-
3258335017000 THERMOSTAT 70 DEGREESTHERMOSTAT 70 DEGREES
-
330770021020 O-RING 21,00X2,00 NBR70O-RING 21,00X2,00 NBR70
-
350912060453 AH SCREW DIN0912-M 6X45AH SCREW DIN0912-M 6X45
-
360125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
