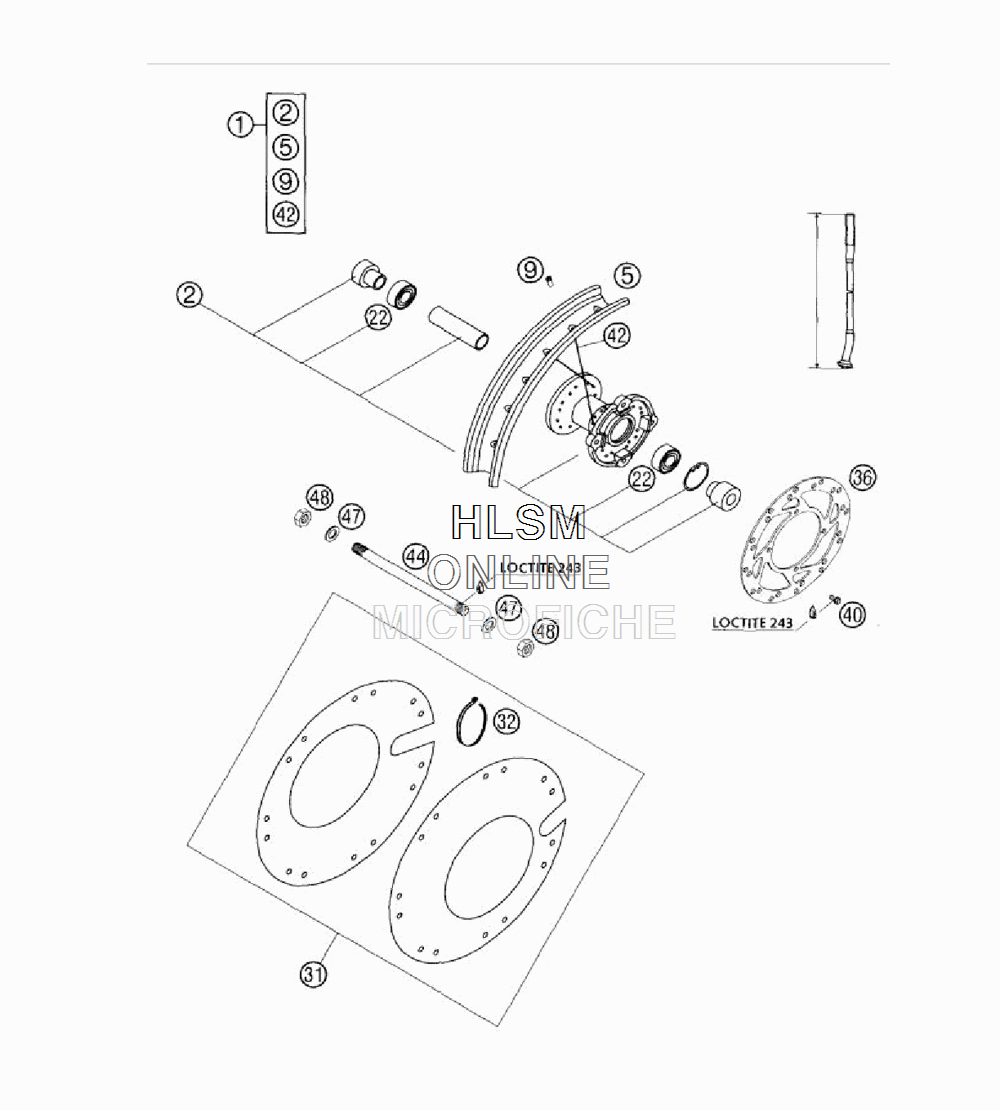

FRONT WHEEL для Ktm 50 Sr Adventure - 2004 года выпуска`
-
№АртикулНазвание
-
145109001244 FRONT WHEEL-SP CPL.1,5X12" ALUFRONT WHEEL-SP CPL.1,5X12" ALU
-
245109010044 FRONT WHEEL HUB CPL.FRONT WHEEL HUB CPL.
-
545109070000 RIM FRONT 1,5X12" ALUMINIUMRIM FRONT 1,5X12" ALUMINIUM
-
945109072000 SPOKE NIPPLE 3MMSPOKE NIPPLE 3MM
-
220625062027 BALL BEARING 6202 2RS1 C3BALL BEARING 6202 2RS1 C3
-
3145110092000 WHEEL COVER CPL.WHEEL COVER CPL.
-
3244011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
3645109060000 BRAKE DISC FRONTBRAKE DISC FRONT
-
4059009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
4245109071129 SPOKE 3X124X5MM-110°SPOKE 3X124X5MM-110°
-
4446010085000 AXLE 207MM M12X1AXLE 207MM M12X1
-
470125120003 FLAT WASHER DIN0125-A13FLAT WASHER DIN0125-A13
-
480934120103 HEXAGON NUT DIN0934-M12X1HEXAGON NUT DIN0934-M12X1
Все узлы модели:
- CARBURETOR DELLORTO 14PHVA DS
- CLUTCH
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST PIPE
- FENDER W/ MASK
- FRAME W/ SUB FRAME
- FRONT BRAKE CALIPER
- FRONT BRAKE CYLINDER
- FRONT FORK
- • FRONT WHEEL
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- REAR BRAKE
- REAR WHEEL
- SHOCK ABSORBER
- SPECIAL TOOLS
- TANK - SEAT - COVER
- TRANSMISSION - COUNTERSHAFT
