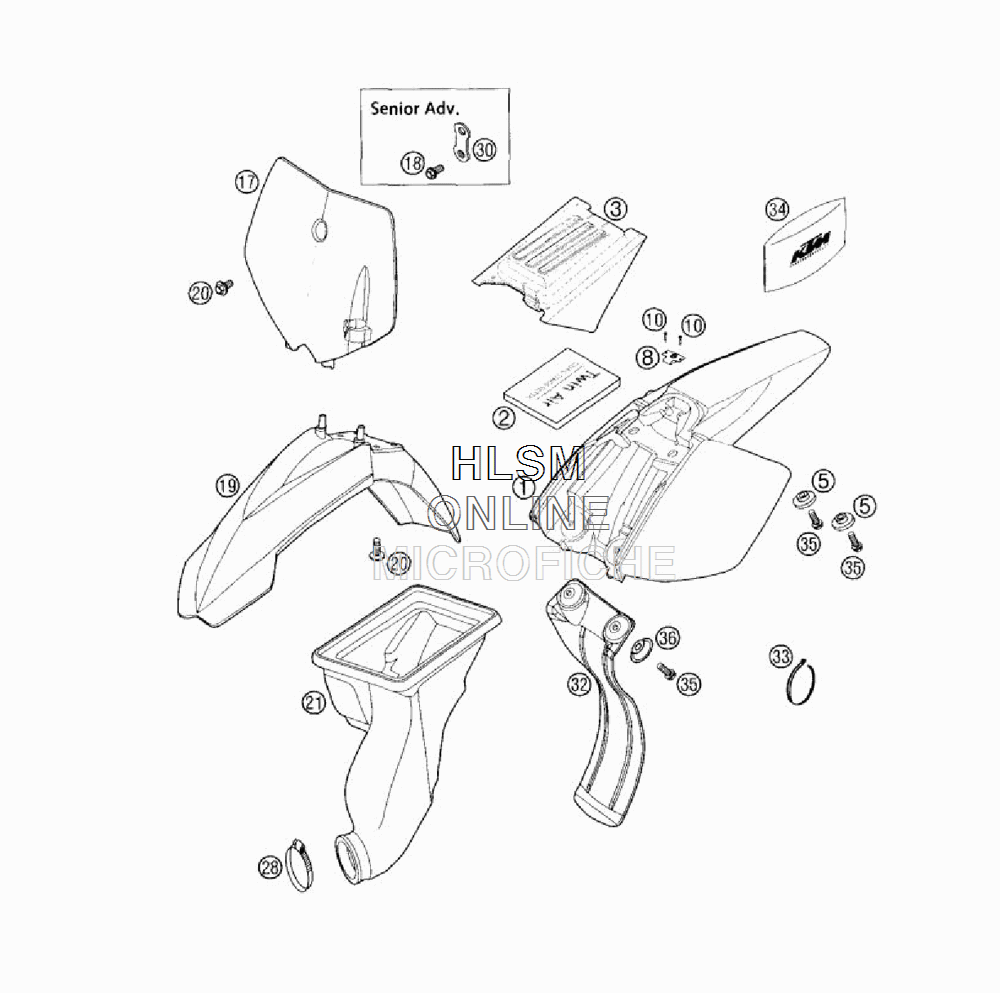

FENDER W/ MASK для Ktm 50 Sr Adventure - 2004 года выпуска`
-
№АртикулНазвание
-
14510801300004 REAR PARTREAR PART
-
245106015000 AIR FILTER 134X96X15 MMAIR FILTER 134X96X15 MM
-
345106012000 FILTER COVERFILTER COVER
-
545108013050 BUSH F.REAR P.BUSH F.REAR P.
-
845007040050 QUICK RELEASE LATCHPLATEQUICK RELEASE LATCHPLATE
-
100981350163 SHEET MET.SCR.DIN7981- 3,5X16SHEET MET.SCR.DIN7981- 3,5X16
-
174510800700004 NUMBER PLATENUMBER PLATE
-
180015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
194510801000004 FENDER FRONTFENDER FRONT
-
200014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
2145106026100 CARBUR.CONNEC.BOOTCARBUR.CONNEC.BOOT
-
2854305058000 HOSE CLAMP 30-45 SGTHOSE CLAMP 30-45 SGT
-
3045108007050 BRACKET FOR NUMBER PLATEBRACKET FOR NUMBER PLATE
-
3245106010100 SPLASH PROTECTORSPLASH PROTECTOR
-
3344011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
3445029099000 TOOL SET 50 MINI,TOOL SET 50 MINI,
-
350015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
3672210079000 BUCKETBUCKET
