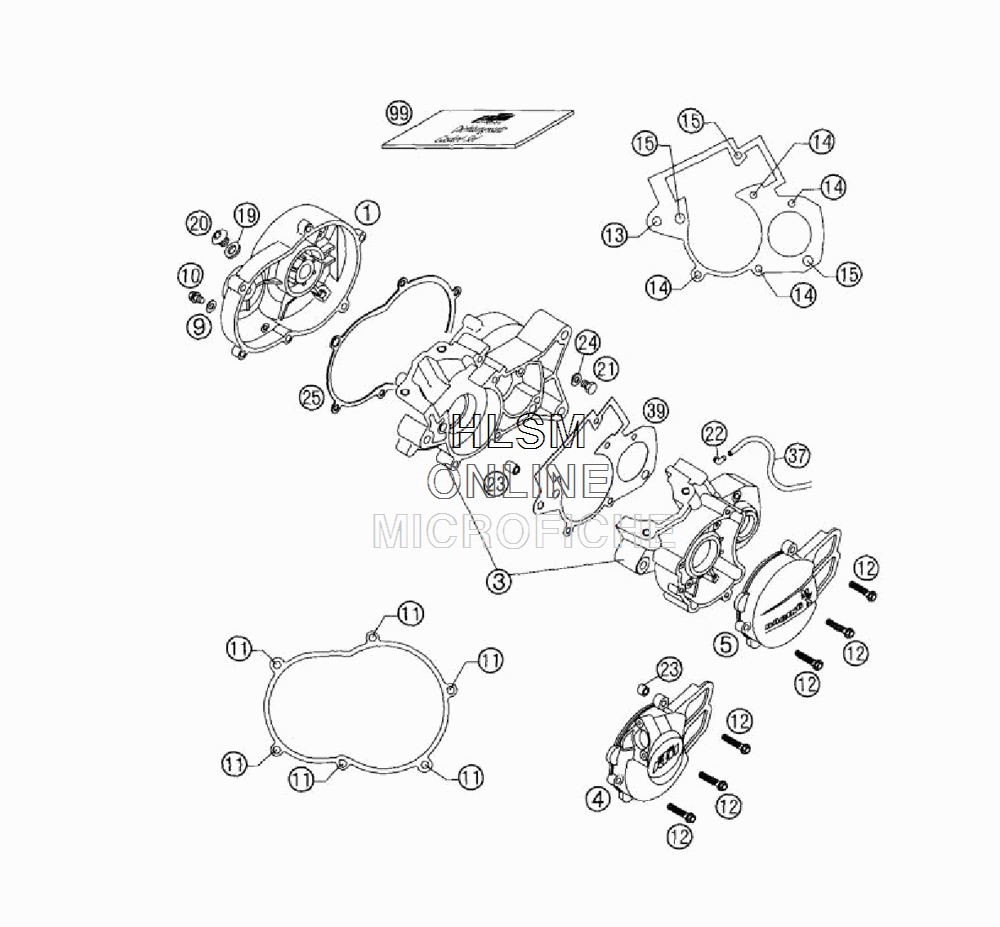

ENGINE CASE для Ktm 50 Sr Adventure - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    45130001100 CLUTCH COVER
    CLUTCH COVER
  • 3
    45130000044 ENGINE CASE
    ENGINE CASE
  • 5
    45130502000 IGNITION COVER
    IGNITION COVER
  • 9
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 10
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 11
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 12
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 13
    0015080603 HH COLLAR SCREW M 8X60 WS=10
    HH COLLAR SCREW M 8X60 WS=10
  • 14
    0912060353 AH SCREW DIN0912-M 6X35
    AH SCREW DIN0912-M 6X35
  • 15
    0912060404 AH SCREW DIN0912-M 6X40 A2
    AH SCREW DIN0912-M 6X40 A2
  • 19
    45130019000 GASKET FOR OIL PLUG
    GASKET FOR OIL PLUG
  • 20
    45130020000 OIL PLUG 50 LC 2001
    OIL PLUG 50 LC 2001
  • 21
    46030021000 OIL DRAIN PLUG M10 WS=14
    OIL DRAIN PLUG M10 WS=14
  • 22
    45130022000 ANGLE PIECE
    ANGLE PIECE
  • 23
    45130023000 DOWEL 7X9X10
    DOWEL 7X9X10
  • 24
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 25
    45130025000 GASKET FOR CLUTCH COVER
    GASKET FOR CLUTCH COVER
  • 37
    52031137001 PVC-HOSE 3X5MM
    PVC-HOSE 3X5MM
  • 39
    45130039000 ENGINE CASE GASKET
    ENGINE CASE GASKET
  • 99
    45130599000 GASKET SET CPL.
    GASKET SET CPL.
