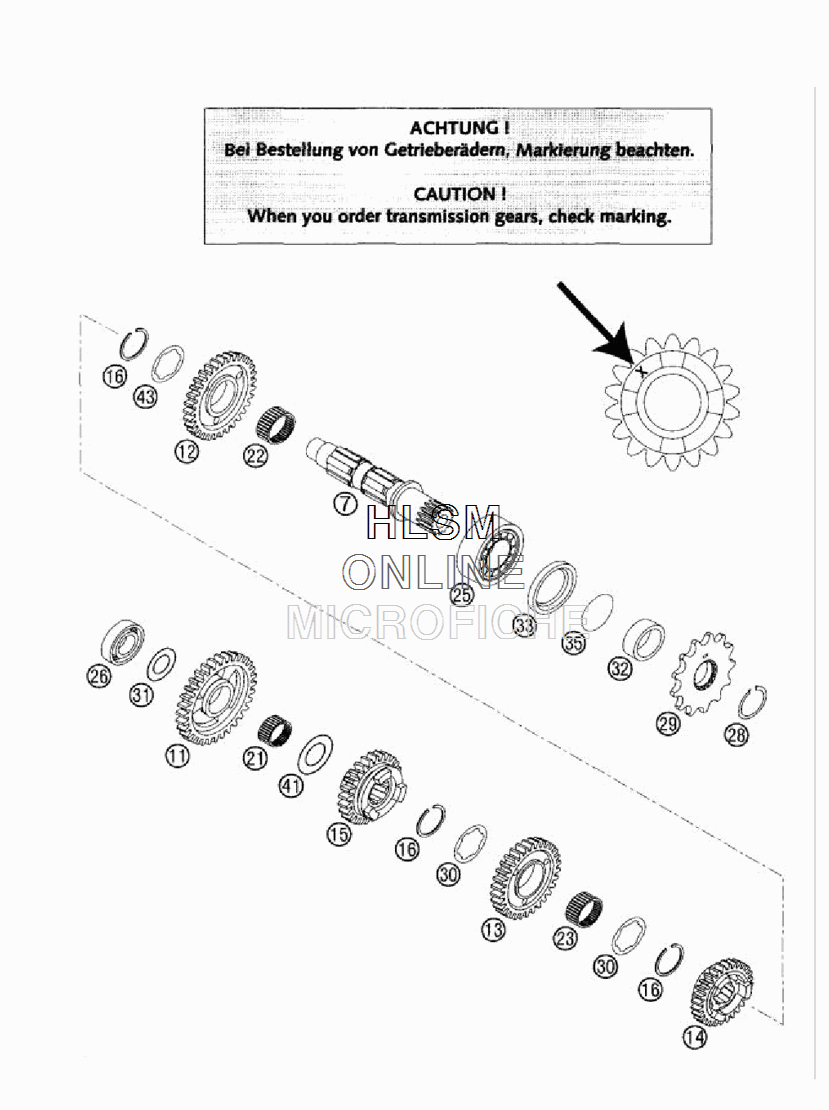

TRANSMISSION - COUNTER SHAFT для Ktm 300 EXC - 2004 года выпуска
-
№АртикулНазвание
-
754833007000 COUNTERSHAFTCOUNTERSHAFT
-
1154833111000 IDLER GEAR 1ST G. 30-T "1E30"IDLER GEAR 1ST G. 30-T "1E30"
-
1254833112000 IDLER GEAR 2ND G. 26-T "2E26"IDLER GEAR 2ND G. 26-T "2E26"
-
1354833113000 IDLER GEAR 3RD G. 23-T "3E23"IDLER GEAR 3RD G. 23-T "3E23"
-
1454833114000 SLIDING GEAR 4TH G.20-T "4E20"SLIDING GEAR 4TH G.20-T "4E20"
-
1554833115000 SLIDING GEAR 5TH G.23-T "5E23"SLIDING GEAR 5TH G.23-T "5E23"
-
1654633096000 AXIAL-CIRCLIP 25X1,64AXIAL-CIRCLIP 25X1,64
-
210405202413 NEEDLE BEAR. K20X24X13NEEDLE BEAR. K20X24X13
-
220405242812 NEDDLE BEAR. K24X28X11,9 DIV.NEDDLE BEAR. K24X28X11,9 DIV.
-
2356533099000 NEEDLE BEAR. K22X26X13 DIVIDEDNEEDLE BEAR. K22X26X13 DIVIDED
-
2554833025000 BALL BEARING TM-SCO5C20C4 NTNBALL BEARING TM-SCO5C20C4 NTN
-
260625062035 BALL BEARING 6203 C3 NTNBALL BEARING 6203 C3 NTN
-
2852033096000 LOCK RING DIN0471-25X1,64SDLOCK RING DIN0471-25X1,64SD
-
2950033029013 SPROCKET 13-TSPROCKET 13-T
-
2950033029014 SPROCKET 14-TSPROCKET 14-T
-
2950033029015 SPROCKET 15-TSPROCKET 15-T
-
3059033030000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
3156033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
3254833032011 SPACER SLEEVE DRIVE ENDSPACER SLEEVE DRIVE END
-
330760324565 SHAFT SEAL RING 32X45X6,5 BTSLSHAFT SEAL RING 32X45X6,5 BTSL
-
350770250020 O-RING 25,00X2,00 NBR 70O-RING 25,00X2,00 NBR 70
-
4159033080000 SHIM 20X32X1SHIM 20X32X1
-
4350333043000 STOP DISC 25,2X32X1STOP DISC 25,2X32X1
