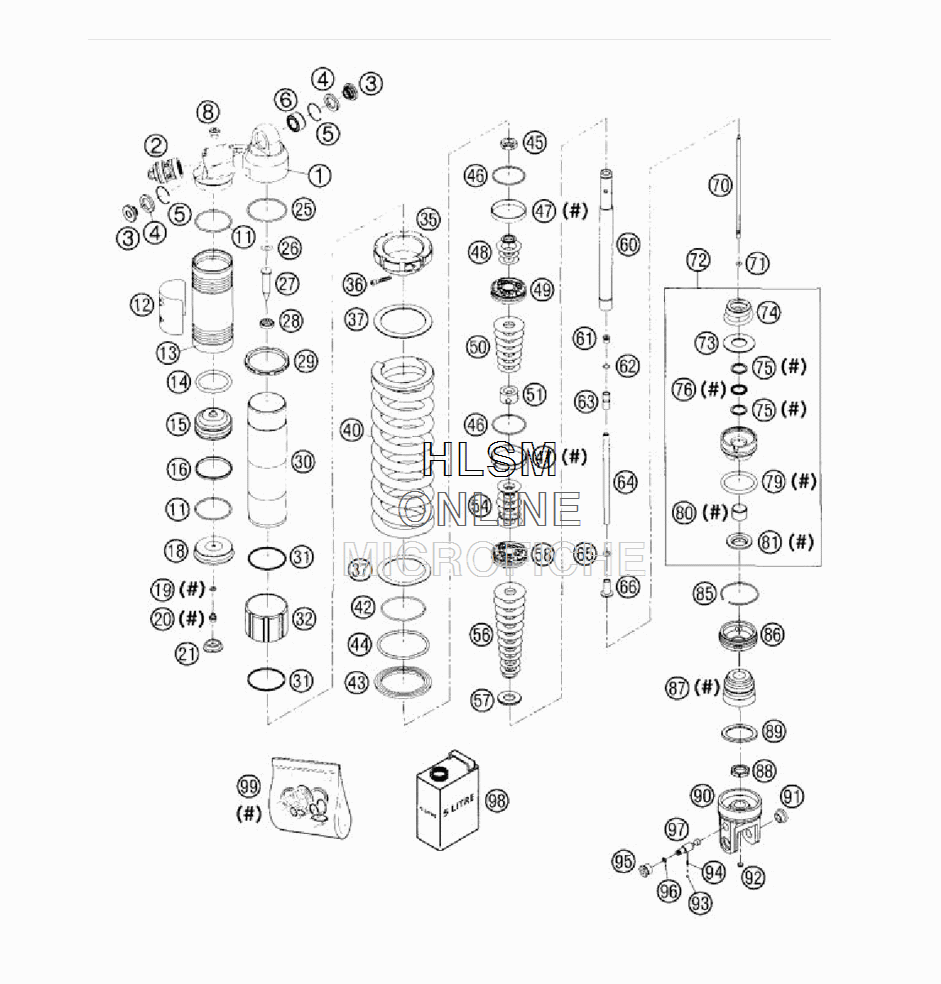

SHOCK ABSORBER - DISASSEMBLED для Ktm 300 EXC - 2004 года выпуска

№

Артикул

Название
1

50180350 SHOCK ABSORBER TOP H=30,5 B=21

SHOCK ABSORBER TOP H=30,5 B=21

170 ₽
2

50180301S3 MCC-COMPR.DAMP.CONTROL CPL.

MCC-COMPR.DAMP.CONTROL CPL.

51 130 ₽
3

46180007 ADAPTOR BUSH KGW 12X24

ADAPTOR BUSH KGW 12X24

4 650 ₽
4

46180003 OIL SEAL KGW D=25

OIL SEAL KGW D=25

1 480 ₽
5

50180168 WASHER KGW D=25

WASHER KGW D=25

190 ₽
6

50180005 BUSHING KGW 1525 HD

BUSHING KGW 1525 HD

24 960 ₽
8

50180095 BLEED PLUG R 1/8

BLEED PLUG R 1/8

990 ₽
11

46810016 O-RING NBR 48X2

O-RING NBR 48X2

140 ₽
12

52000041 WP CAUTION (PDS KTM) 58X33

WP CAUTION (PDS KTM) 58X33

4 510 ₽
13

50180389 RESERV. SCREW L=140 D=52 GOLD

RESERV. SCREW L=140 D=52 GOLD

40 880 ₽
14

46180014 O-RING VITON 41X5

O-RING VITON 41X5

350 ₽
15

46180002 SEPARATION PISTON D=52; H=32

SEPARATION PISTON D=52; H=32

10 070 ₽
16

46180015 PISTON RING 3,9X1,5X156

PISTON RING 3,9X1,5X156

2 300 ₽
18

50180344 RESERVOIR CAP D=58

RESERVOIR CAP D=58

38 330 ₽
19

46810893 O-RING NBR 5,28X1,78

O-RING NBR 5,28X1,78

140 ₽
20

36120151 SCREW PLUG M5X6

SCREW PLUG M5X6

2 840 ₽
21

46811208 RUBBER CAP "DO NOT OPEN"

RUBBER CAP "DO NOT OPEN"

540 ₽
25

50180097 O-RING 52X2

O-RING 52X2

460 ₽
26

50180177 WASHER 16X8,2X0,6

WASHER 16X8,2X0,6

530 ₽
27

50180393 NEEDLE D=10 L=57

NEEDLE D=10 L=57

8 760 ₽
27

50180414 NEEDLE D=7,2 L=57

NEEDLE D=7,2 L=57

0 ₽
28

50180271 SCREW CAP M20X1; D=11

SCREW CAP M20X1; D=11

7 980 ₽
29

50180270 LOCK WASHER

LOCK WASHER

10 680 ₽
30

50180295 TUBE PDS L=196

TUBE PDS L=196

36 370 ₽
31

50180133 CIRCLIP 50X1,5

CIRCLIP 50X1,5

2 370 ₽
32

50180081 SPRING GUIDANCE L=40

SPRING GUIDANCE L=40

1 830 ₽
35

50180354 SPRING RETAINER M5

SPRING RETAINER M5

36 180 ₽
36

0912050303 AH SCREW DIN0912-M 5X30

AH SCREW DIN0912-M 5X30

210 ₽
37

50180114 INTERM.RING SCREW SPRING RET.

INTERM.RING SCREW SPRING RET.

550 ₽
40

91210013 SPRING PDSO-250 65-83N/MM

SPRING PDSO-250 65-83N/MM

65 300 ₽
40

91210009 SPRING PDS1-25070-90N/MM

SPRING PDS1-25070-90N/MM

44 730 ₽
40

91210010 SPRING PDS2-250 75-96N/MM

SPRING PDS2-250 75-96N/MM

40 810 ₽
40

91210011 SPRING PDS3-250 80-103N/MM

SPRING PDS3-250 80-103N/MM

86 600 ₽
40

91210012 SPRING PDS4-250 85-111N/MM

SPRING PDS4-250 85-111N/MM

48 410 ₽
40

91210014 SPRING PDS5-260 66-86N/MM

SPRING PDS5-260 66-86N/MM

65 300 ₽
40

91210015 SPRING PDS6-260 71,5-90,5N/MM

SPRING PDS6-260 71,5-90,5N/MM

40 810 ₽
40

91210016 SPRING PDS7-260 76-95N/MM

SPRING PDS7-260 76-95N/MM

48 320 ₽
40

91210017 SPRING PDS8-260 81-99,5N/MM

SPRING PDS8-260 81-99,5N/MM

65 300 ₽
40

91210002 SPRING 250 72N/MM D=12,5 (59)

SPRING 250 72N/MM D=12,5 (59)

44 730 ₽
40

91210003 SPRING 250 76N/MM D=12,5 (59)

SPRING 250 76N/MM D=12,5 (59)

65 300 ₽
40

91210004 SPRING 250 80N/MM D=12,5 (62)

SPRING 250 80N/MM D=12,5 (62)

40 810 ₽
40

91210006 SPRING 250 88N/MM D=13,0 (62)

SPRING 250 88N/MM D=13,0 (62)

48 410 ₽
42

50180273 CIRCLIP 58,2X2

CIRCLIP 58,2X2

440 ₽
43

50180355 SPRING RETAINER D=80

SPRING RETAINER D=80

8 890 ₽
44

50180352 O-RING VITON 66,27X3,53

O-RING VITON 66,27X3,53

520 ₽
45

50180141 PISTON ROD NUT M16X1

PISTON ROD NUT M16X1

2 480 ₽
46

50180099 O-RING VITON 44,17X1,78

O-RING VITON 44,17X1,78

310 ₽
47

50180135 PISTON RING 50-8

PISTON RING 50-8

2 800 ₽
48

50180072 WASHER 16X28X0,30

WASHER 16X28X0,30

570 ₽
48

50180209 WASHER 21X36X0,25

WASHER 21X36X0,25

3 190 ₽
48

50180210 WASHER 16X21X1

WASHER 16X21X1

1 670 ₽
49

50180197 PISTON 6+6X7/4,5

PISTON 6+6X7/4,5

11 850 ₽
50

50180035 BACKPLATE 16X21X0,30

BACKPLATE 16X21X0,30

500 ₽
50

50180048 WASHER 16X34X0,15

WASHER 16X34X0,15

570 ₽
50

50180058 WASHER 16X36X0,20

WASHER 16X36X0,20

570 ₽
50

50180059 WASHER 16X38X0,20

WASHER 16X38X0,20

570 ₽
50

50180060 WASHER 16X40X0,20

WASHER 16X40X0,20

570 ₽
50

50180061 WASHER 16X42X0,20

WASHER 16X42X0,20

570 ₽
50

50180062 WASHER 16X44X0,20

WASHER 16X44X0,20

570 ₽
50

50180063 WASHER 16X28X0,25

WASHER 16X28X0,25

570 ₽
50

50180064 WASHER 16X30X0,25

WASHER 16X30X0,25

570 ₽
50

50180065 WASHER 16X32X0,25

WASHER 16X32X0,25

570 ₽
50

50180066 WASHER 16X34X0,25

WASHER 16X34X0,25

570 ₽
51

50180269 SANDWICH BUSH D25XD16X14,5/D

SANDWICH BUSH D25XD16X14,5/D

10 540 ₽
54

50180034 BACKPLATE 16X20X0,30

BACKPLATE 16X20X0,30

680 ₽
54

50180045 WASHER 16X28X0,15

WASHER 16X28X0,15

570 ₽
54

50180054 WASHER 16X28X0,20

WASHER 16X28X0,20

570 ₽
54

50180056 WASHER 16X32X0,20

WASHER 16X32X0,20

570 ₽
54

50180057 WASHER 16X34X0,20

WASHER 16X34X0,20

570 ₽
54

50180067 WASHER 16X36X0,25

WASHER 16X36X0,25

570 ₽
56

50180035 BACKPLATE 16X21X0,30

BACKPLATE 16X21X0,30

500 ₽
56

50180036 BACKPLATE 16X22X0,30

BACKPLATE 16X22X0,30

500 ₽
56

50180048 WASHER 16X34X0,15

WASHER 16X34X0,15

570 ₽
56

50180049 SHIM 16X36X0,15

SHIM 16X36X0,15

570 ₽
56

50180057 WASHER 16X34X0,20

WASHER 16X34X0,20

570 ₽
56

50180058 WASHER 16X36X0,20

WASHER 16X36X0,20

570 ₽
56

50180059 WASHER 16X38X0,20

WASHER 16X38X0,20

570 ₽
56

50180060 WASHER 16X40X0,20

WASHER 16X40X0,20

570 ₽
56

50180061 WASHER 16X42X0,20

WASHER 16X42X0,20

570 ₽
56

50180062 WASHER 16X44X0,20

WASHER 16X44X0,20

570 ₽
56

50180063 WASHER 16X28X0,25

WASHER 16X28X0,25

570 ₽
56

50180064 WASHER 16X30X0,25

WASHER 16X30X0,25

570 ₽
56

50180065 WASHER 16X32X0,25

WASHER 16X32X0,25

570 ₽
57

50180313 DISC REBOUND D=34; H=0

DISC REBOUND D=34; H=0

9 130 ₽
58

50180311 PISTON 6+6X7/4,5 VB 1,0

PISTON 6+6X7/4,5 VB 1,0

12 880 ₽
60

50180294 SPINDEL D=18; L=153; M16X1

SPINDEL D=18; L=153; M16X1

43 060 ₽
61

50180200 BUSH M8X1

BUSH M8X1

4 240 ₽
62

50180157 O-RING VITON 7X1,5

O-RING VITON 7X1,5

140 ₽
63

50180201 NEEDLE SEAT M8X1

NEEDLE SEAT M8X1

6 190 ₽
64

50180264 TUBE M18X1 L=151,5

TUBE M18X1 L=151,5

3 360 ₽
65

48600049 O-RING NBR 8X2

O-RING NBR 8X2

130 ₽
66

50180279 TUBE ADAPTOR M8X1 L=23

TUBE ADAPTOR M8X1 L=23

810 ₽
70

50180261 NEEDLE L=175

NEEDLE L=175

19 560 ₽
71

46811265 O-RING VITON 2,2X1,6

O-RING VITON 2,2X1,6

30 ₽
72

50180384S ADAPTOR CPL. D=50 H=26,5

ADAPTOR CPL. D=50 H=26,5

43 380 ₽
73

50180314 DISC REBOUND SPRING

DISC REBOUND SPRING

1 110 ₽
74

50180385 REBOUND SPRING

REBOUND SPRING

28 880 ₽
75

50180102 BACKUPRING 22,55X1,5

BACKUPRING 22,55X1,5

2 030 ₽
76

50180101 QUAD RING 18X2,62

QUAD RING 18X2,62

4 220 ₽
79

50180103 O-RING 41X5

O-RING 41X5

110 ₽
80

46180119 DU-BUSH 18X20X12

DU-BUSH 18X20X12

1 450 ₽
81

50180082 DUST SEAL 1835

DUST SEAL 1835

9 190 ₽
85

50180126 CIRCLIP 53X1,75

CIRCLIP 53X1,75

190 ₽
86

50180165 COVER D=50

COVER D=50

14 770 ₽
87

50180276 BUMP RUBBER WP60 D=18-26

BUMP RUBBER WP60 D=18-26

3 360 ₽
88

50180283 CONTRA NUT M18X1 H=5

CONTRA NUT M18X1 H=5

3 080 ₽
89

48600036 SPACER 42X26,5X2,5

SPACER 42X26,5X2,5

440 ₽
90

50180356 FORK PART L=55,5 B=32,5 D=12

FORK PART L=55,5 B=32,5 D=12

98 930 ₽
91

50180105 THREADED BUSH M12 PDS

THREADED BUSH M12 PDS

4 180 ₽
92

50180297 RUBBER PLUG D=8

RUBBER PLUG D=8

630 ₽
93

40540603 STEEL BALL D=3MM

STEEL BALL D=3MM

60 ₽
94

40540602 SPRING D=2,9; L=6,2

SPRING D=2,9; L=6,2

500 ₽
95

50180281 RESERVOIR CAP M14X1

RESERVOIR CAP M14X1

7 830 ₽
96

50180222 O-RING NBR 4X1,5

O-RING NBR 4X1,5

60 ₽
97

50180280 ADJUSTING SCREW 80 DEG.; L=39

ADJUSTING SCREW 80 DEG.; L=39

6 190 ₽
98

50180342S1 SHOCK ABSORBER FLUID 5 LT (0,33 LITRE)

SHOCK ABSORBER FLUID 5 LT (0,33 LITRE)

53 390 ₽
99

R12008 REPAIR-KIT GASKET 5018 PDS

REPAIR-KIT GASKET 5018 PDS

36 530 ₽
