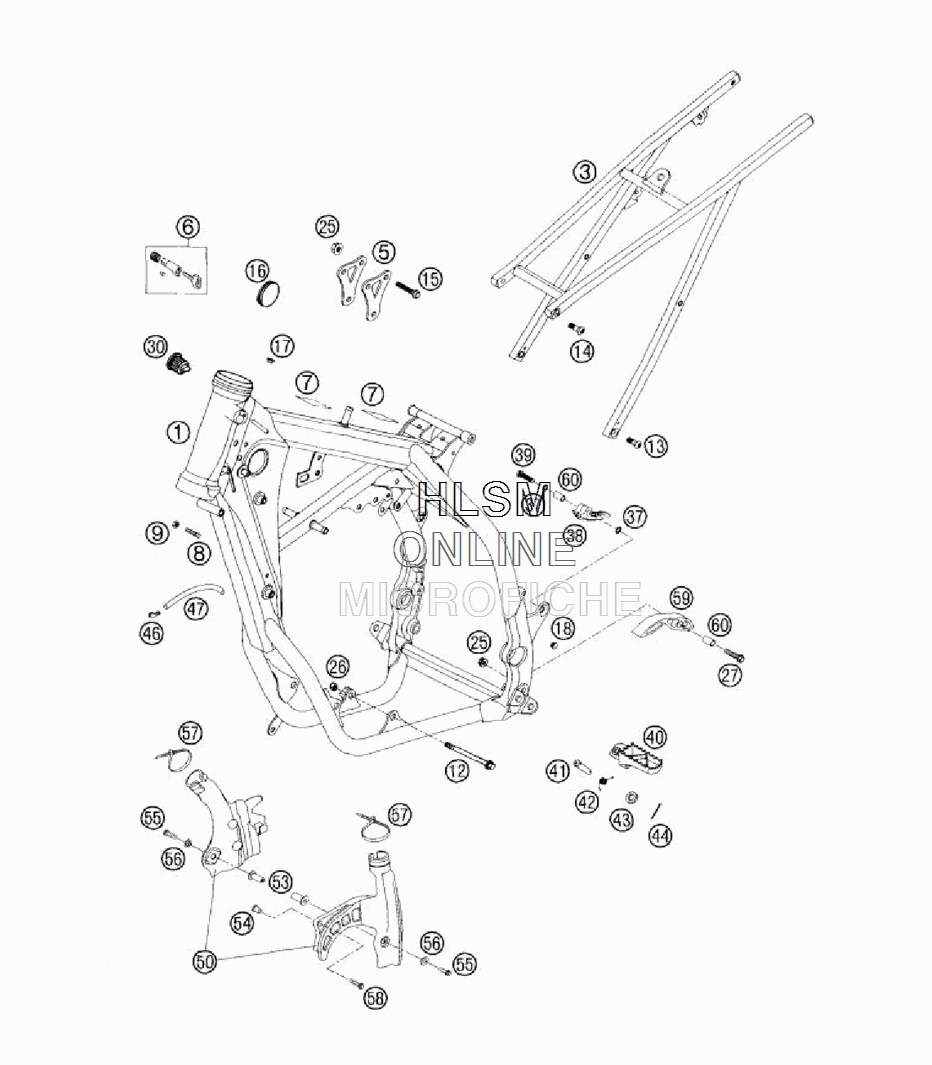

FRAME W/ SUB FRAME для Ktm 300 EXC - 2004 года выпуска
-
№АртикулНазвание
-
15480300110096 FRAME (USA)FRAME (USA)
-
15480300120096 FRAME (EURO/AUS)FRAME (EURO/AUS)
-
354803002044 SUB FRAME CPL.SUB FRAME CPL.
-
354803002144 SUB FRAME CPL.SUB FRAME CPL.
-
554803013000 REINFORCING BRACKETREINFORCING BRACKET
-
671003007000 STEERING HEAD LOCK CPL. ZADISTEERING HEAD LOCK CPL. ZADI
-
750307012000 ADH. FOIL TRANSP. 80X80 MMADH. FOIL TRANSP. 80X80 MM
-
859001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
90934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
1254603013000 ENGINE BRAC.SCR. M10X105 WS=13ENGINE BRAC.SCR. M10X105 WS=13
-
1354610052000 SPROCKET SCREW-AH M8X20 WS=6SPROCKET SCREW-AH M8X20 WS=6
-
1454510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
1556530079000 COLLAR SCREW M8X42 WS=13 10.9COLLAR SCREW M8X42 WS=13 10.9
-
1654606004000 PLUG 37MMPLUG 37MM
-
1736111021000 PLUGPLUG
-
1854403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
2554310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2654310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
270015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
3042007049000 PLASTIC CAPPLASTIC CAP
-
3736003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
3854804067000 CHAIN SLIDING PIECECHAIN SLIDING PIECE
-
390015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
4059003040250 FOOT PED L/S SILVERFOOT PED L/S SILVER
-
4059003041250 FOOT PED R/S SILVERFOOT PED R/S SILVER
-
4154803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
4254603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
430125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
440094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
4650303089000 ANGEL PIECE '97ANGEL PIECE '97
-
4755007016001 PVC-HOSE 7X10 PER METREPVC-HOSE 7X10 PER METRE
-
5054803094000 FRAME PROTECTION SETFRAME PROTECTION SET
-
5354803092050 BLIND PLUG-IN NUT M5 WN 22ABLIND PLUG-IN NUT M5 WN 22A
-
5459030060050 BUSHING F. SPROCKET COVERBUSHING F. SPROCKET COVER
-
550014050253 HH COLLAR SCREW M 5X25 WS=6HH COLLAR SCREW M 5X25 WS=6
-
5654803092060 BUSH F. FRAME PROTECTIONBUSH F. FRAME PROTECTION
-
5744011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
580015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
5951103053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
6051103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
