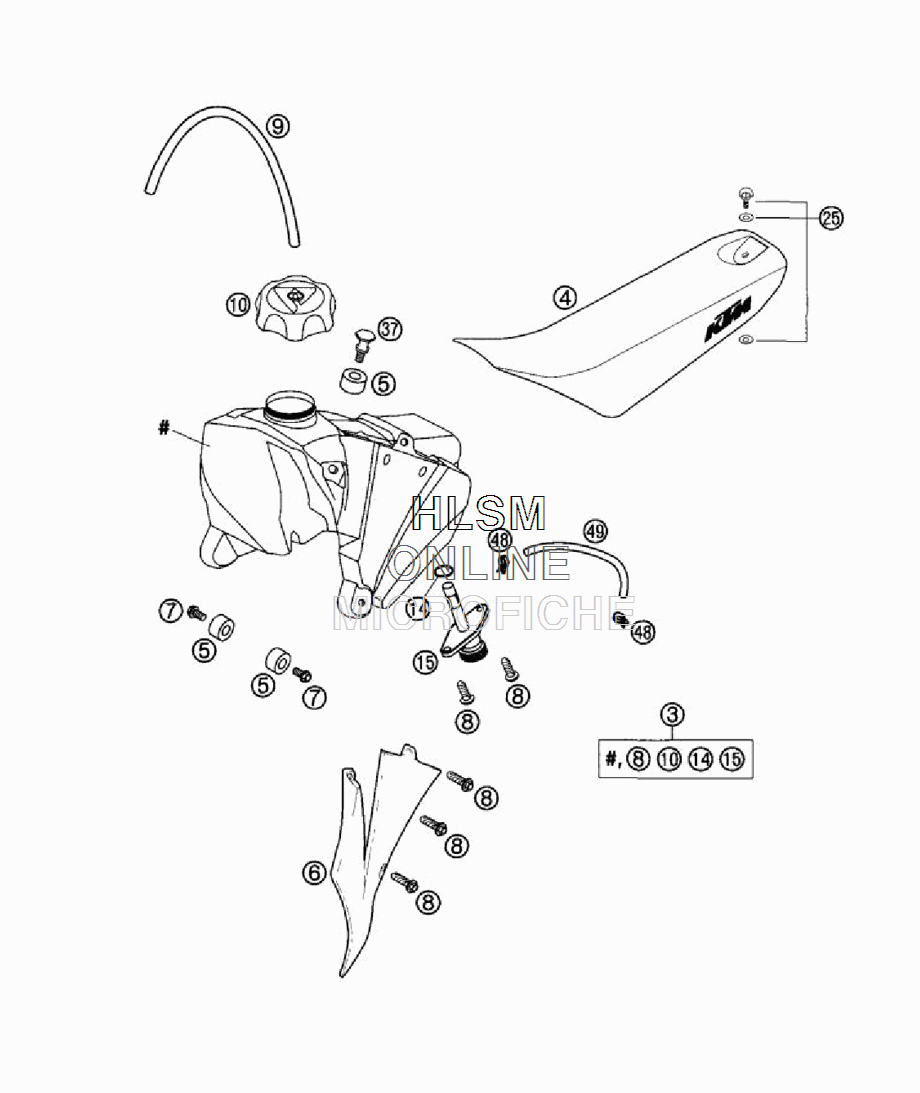

TANK - SEAT - COVER для Ktm 65 SX - 2003 года выпуска`
-
№АртикулНазвание
-
34610701300004 FUEL TANK CPL.FUEL TANK CPL.
-
446107040100 SEATSEAT
-
550307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
64610805010004 SPOILER L/SSPOILER L/S
-
64610805110004 SPOILER R/SSPOILER R/S
-
70015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
80017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
-
950332095101 TUBE VINNYLAN 6X9 DVOHTUBE VINNYLAN 6X9 DVOH
-
1049007008044 FILLER CAP CPL. SMALLFILLER CAP CPL. SMALL
-
1455007006200 O-RING 11X1,8 NBR 70O-RING 11X1,8 NBR 70
-
1558507003000 FUEL COCK CPL. SMALL RALLYFUEL COCK CPL. SMALL RALLY
-
2545007040051 QUICK RELEASE CPL.QUICK RELEASE CPL.
-
3745107011000 TANK SCREWTANK SCREW
-
4858007117000 YDNAC-CLAMP 10107 10MMYDNAC-CLAMP 10107 10MM
-
4950307016000 FUEL PREFORMED HOSEFUEL PREFORMED HOSE
