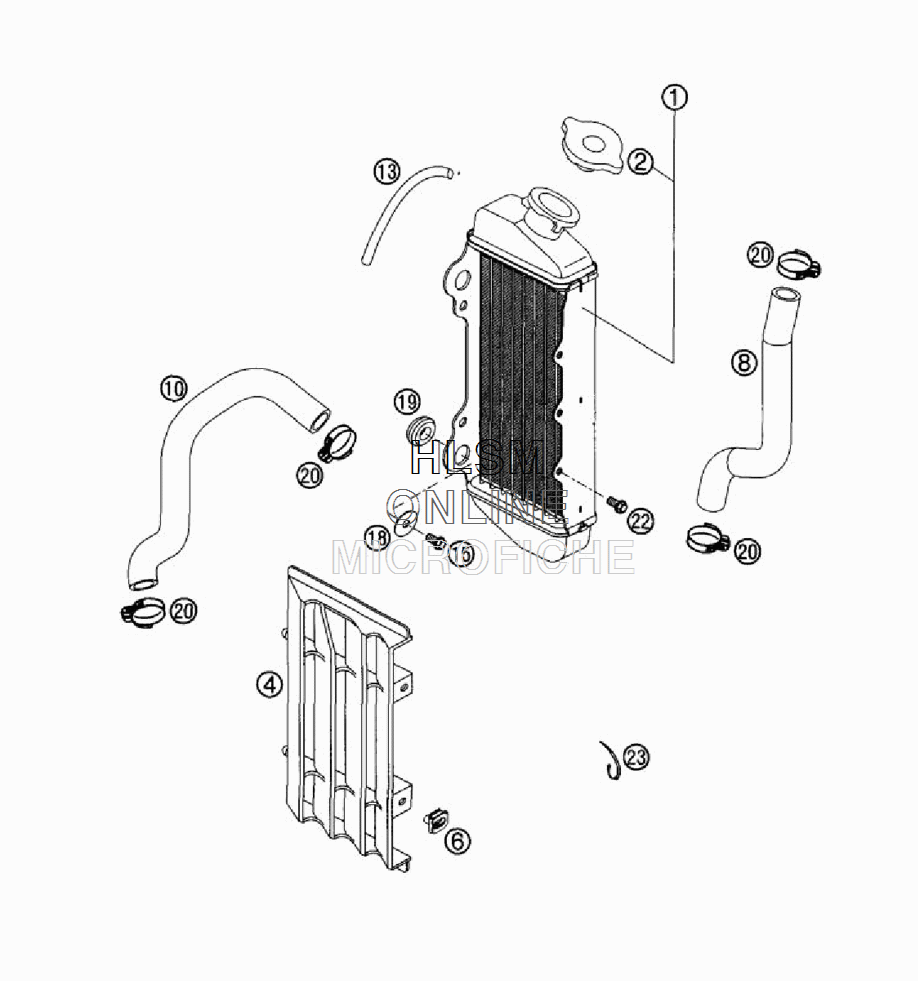

COOLING SYSTEM для Ktm 65 SX - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    46135008000 RADIATOR
    RADIATOR
  • 2
    58035016000 RADIATOR CAP SMALL 19,6 PSI
    RADIATOR CAP SMALL 19,6 PSI
  • 4
    54535034000 RADIATOR PROTECTOR L/S 60165
    RADIATOR PROTECTOR L/S 60165
  • 6
    50235033200 SNAP-NUT HOLDER M6 KP 134
    SNAP-NUT HOLDER M6 KP 134
  • 8
    46135026000 PREFORMED HOSE CYL.-RADI.
    PREFORMED HOSE CYL.-RADI.
  • 10
    46135027000 PREFORMED HOSE WAPU-RADI.
    PREFORMED HOSE WAPU-RADI.
  • 13
    58307016001 FUEL HOSE VITON 6X1,5 PER/M
    FUEL HOSE VITON 6X1,5 PER/M
  • 15
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 18
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 19
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 20
    42013037200 HOSE CLAMP GEMI 12/22
    HOSE CLAMP GEMI 12/22
  • 22
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 23
    44011076200 CABLE TIE 200MM
    CABLE TIE 200MM
  • 23
    44011076305 CABLE TIE 290MM
    CABLE TIE 290MM
