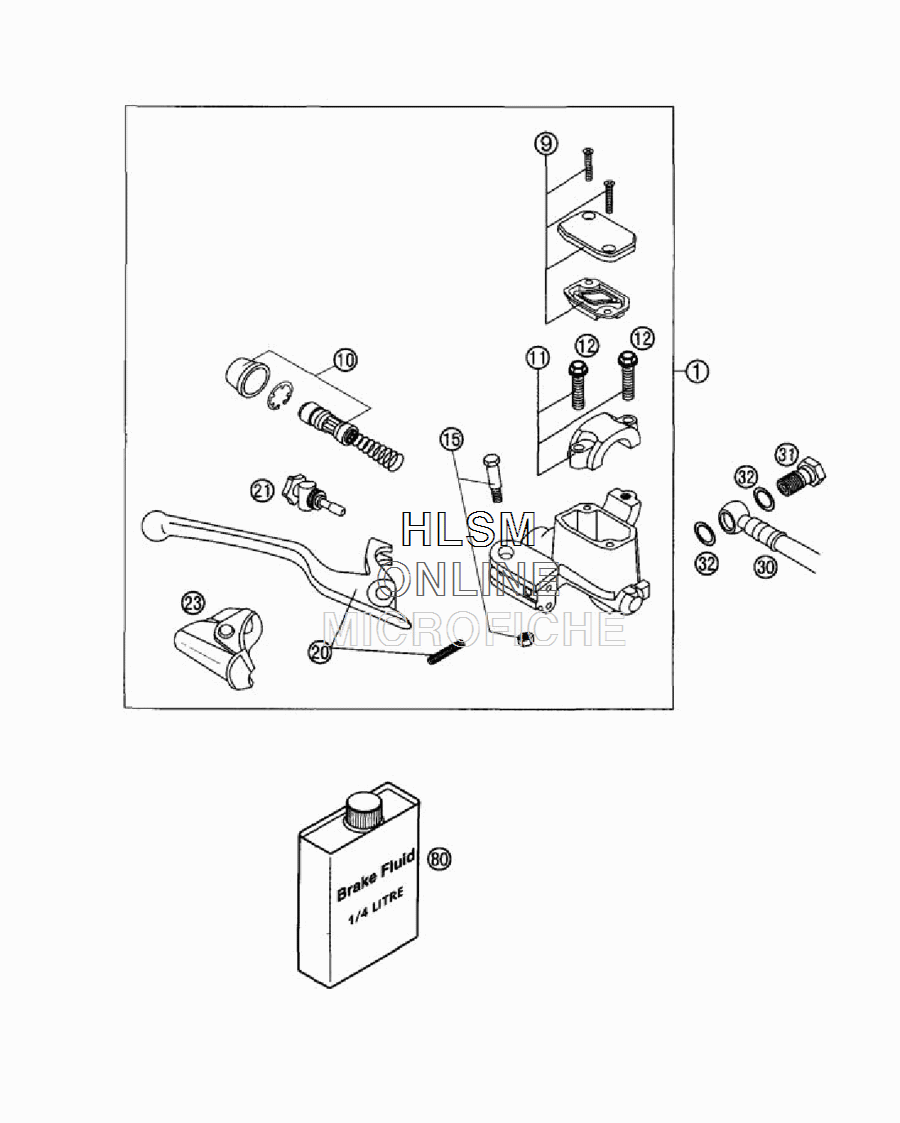

HAND BRAKE CYLINDER для Ktm 65 SX - 2003 года выпуска
-
№АртикулНазвание
-
150313001100 HANDBRAKE CYL. NAT. SMALLHANDBRAKE CYL. NAT. SMALL
-
950313003000 HANDBRAKE CYL.COVER CPL.NATURFHANDBRAKE CYL.COVER CPL.NATURF
-
1050313008200 REP.SET PISTON D=11REP.SET PISTON D=11
-
1150313005000 CLAMP CPL. NATURECLAMP CPL. NATURE
-
120015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1550313006100 LEVER SCREW CPL.LEVER SCREW CPL.
-
2050313002100 HANDBRAKE LEVER SHORTHANDBRAKE LEVER SHORT
-
2150313007000 ADJUSTING SCREW CPL.ADJUSTING SCREW CPL.
-
2350313004000 PROTECTION CAP HAND BRAKE CYL.PROTECTION CAP HAND BRAKE CYL.
-
3046113010000 BRAKE HOSE FRONT (L=985MM)BRAKE HOSE FRONT (L=985MM)
-
3150213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
3242013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
80306054 BRAKE FLUID DOT 5.1 (0,1L)BRAKE FLUID DOT 5.1 (0,1L)
Все узлы модели:
- AIR FILTER BOX
- BRAKE CALIPER FRONT FORMULA
- CARBURETOR MIKUNI VM24
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FORK LEGS
- FRAME - SUB FRAME
- FRONT FORK
- FRONT WHEEL
- • HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- MASK W/ FENDERS
- REAR BRAKE CALIPER GRIMECA
- REAR BRAKE CONTROL
- REAR WHEEL
- SHIFTING MECHANISM
- SHOCK ABSORBER - DISASSEMBLED
- SPECIAL TOOLS
- SWINGARM W/ SHOCK ABSORBER
- TANK - SEAT - COVER
- TRANSMISSION
