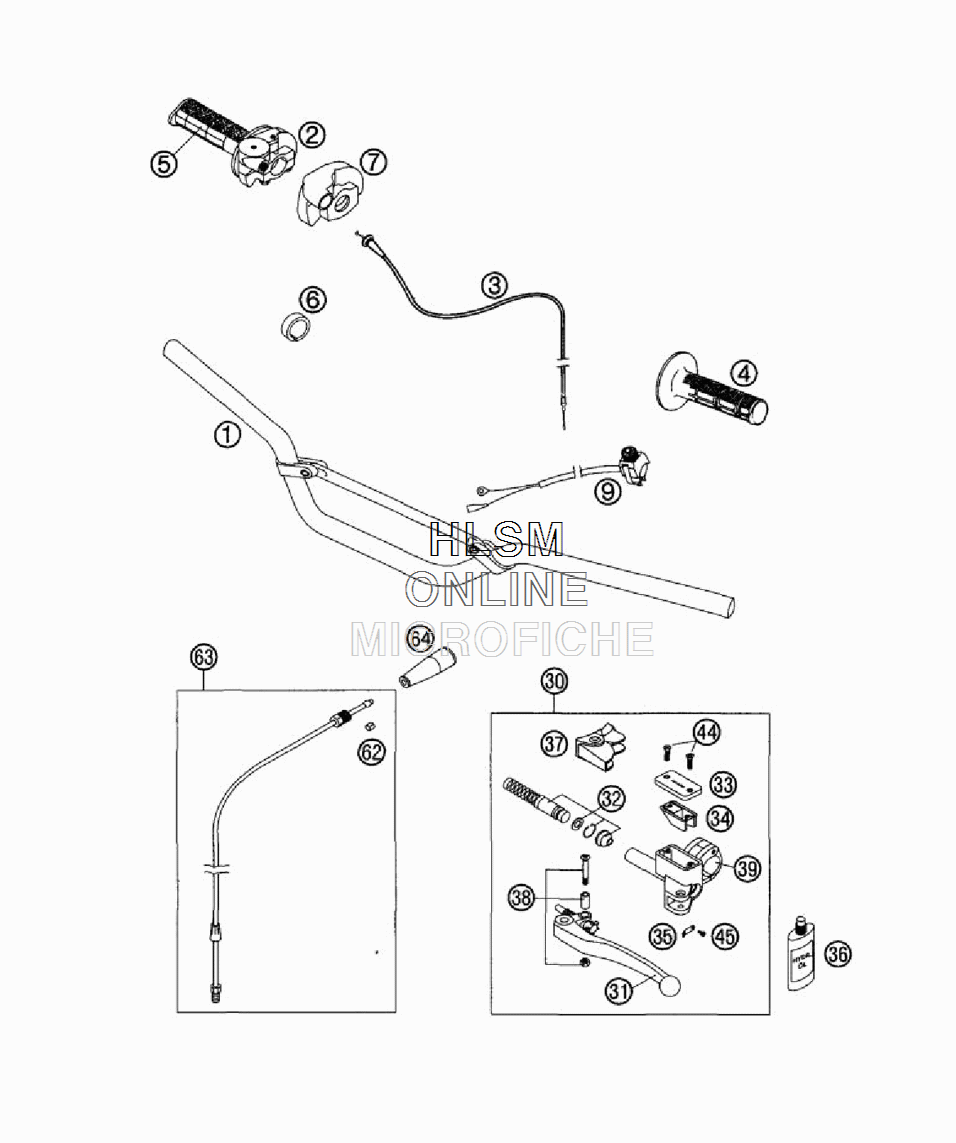

HANDLEBAR W/ CONTROLS для Ktm 65 SX - 2003 года выпуска`
-
№АртикулНазвание
-
146102001100 HANDLEBARHANDLEBAR
-
246102010000 THROTTLE GRIP W.COVERTHROTTLE GRIP W.COVER
-
346102091000 THROTTLE CABLE DOMINOTHROTTLE CABLE DOMINO
-
450202052000 FIXED GRIP DOMINO BLACKFIXED GRIP DOMINO BLACK
-
550202003000 TWIST GRIP COVER DOMINO BLACKTWIST GRIP COVER DOMINO BLACK
-
646002012000 SPACER BUSHING 21,5X28X7,5SPACER BUSHING 21,5X28X7,5
-
750302020000 PROTECTION COVERPROTECTION COVER
-
950311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
3046102030000 MASTER CYLINDER CPL.MASTER CYLINDER CPL.
-
3150302031100 CLU.LEVER SHORT CPL.CLU.LEVER SHORT CPL.
-
3259002032000 REP KIT PISTON 9,5MMREP KIT PISTON 9,5MM
-
3350302033100 COVER HYD.CLUTCHCOVER HYD.CLUTCH
-
3450302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3550302035000 SPRING PLATE FOR LEVERSPRING PLATE FOR LEVER
-
3650302036000 OIL FOR HYD.CLUTCH 50MLOIL FOR HYD.CLUTCH 50ML
-
3750302037000 PROTECT. CAP FOR LEVER PERCHPROTECT. CAP FOR LEVER PERCH
-
3850302038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
3950302030150 CLAMP WITH PINCLAMP WITH PIN
-
440965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
450984030063 AH SCREW DIN7984-M 3X 6AH SCREW DIN7984-M 3X 6
-
6250332063050 SELF CUTTING RING HYDR.PIPESELF CUTTING RING HYDR.PIPE
-
6346132063000 PIPE KIT FOR HYDR.CLUTCHPIPE KIT FOR HYDR.CLUTCH
-
6454002016000 PROTECTION CAPPROTECTION CAP
