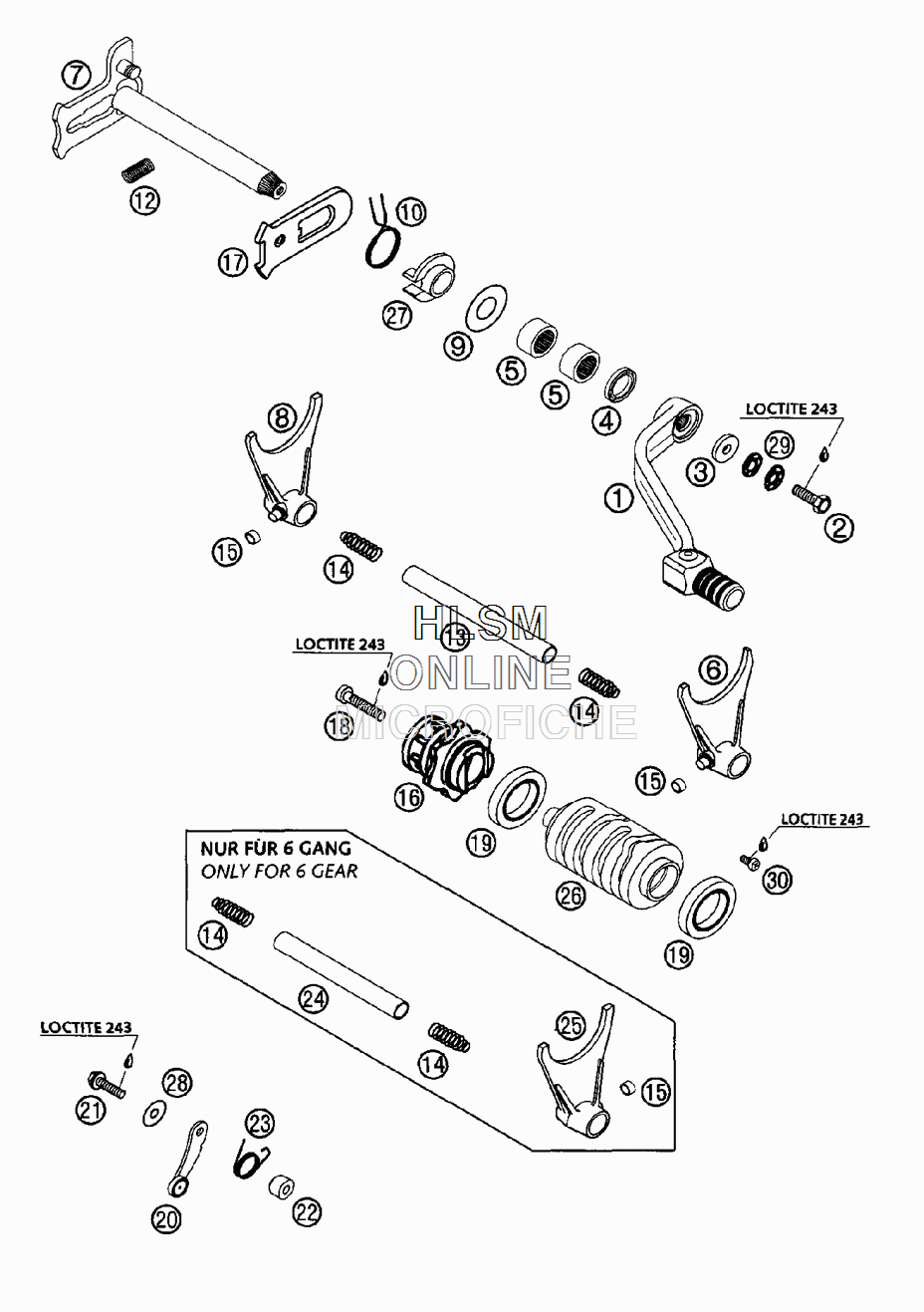

SHIFTING MECHANISM для Ktm 450 SX Racing/RFS - 2003 года выпуска`
-
№АртикулНазвание
-
159034031000 SHIFTING LEVER CPL.RACINGSHIFTING LEVER CPL.RACING
-
20933060203 HH SCREW DIN0933-M 6X20HH SCREW DIN0933-M 6X20
-
350232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
40760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
554632095000 NEEDLE BEAR.HK 1412 14,6X20X12NEEDLE BEAR.HK 1412 14,6X20X12
-
659034002000 SHIFT FORK 2./4.GEARSHIFT FORK 2./4.GEAR
-
759034005000 SHIFT SHAFT CPL. RACINGSHIFT SHAFT CPL. RACING
-
859834003000 SHIFT FORK 1./3.GEARSHIFT FORK 1./3.GEAR
-
954634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
1054634014100 RETURN SPRING 2,2MMRETURN SPRING 2,2MM
-
1256534013100 SPANNER SPRING 0,8MMSPANNER SPRING 0,8MM
-
1359034020000 SHIFT RAIL 11,8X105MMSHIFT RAIL 11,8X105MM
-
1458038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
1550334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
1659034015044 SHIFT LOCATING DRUM ALU CPL.00SHIFT LOCATING DRUM ALU CPL.00
-
1754634008044 SLIDING PLATE CPL.SLIDING PLATE CPL.
-
180984060302 AH SCREW DIN7984 M6X30AH SCREW DIN7984 M6X30
-
190625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
2054634024144 LOCKING LEVER CPLLOCKING LEVER CPL
-
210015050203 HH COLLAR SCREW M 5X20 WS=8HH COLLAR SCREW M 5X20 WS=8
-
2254634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
2359034023000 SPRING 2,3MMSPRING 2,3MM
-
2459034019000 SHIFT RAIL 11,8X89MMSHIFT RAIL 11,8X89MM
-
2559834001000 SHIFT FORK 5./6.GEARSHIFT FORK 5./6.GEAR
-
2659034012044 SHIFTROLLER 4-GEARSHIFTROLLER 4-GEAR
-
2754634020000 SPRING GUIDESPRING GUIDE
-
2871008012000 WASHER 5,3X17X1,5MMWASHER 5,3X17X1,5MM
-
2950233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
300985050083 FLAT HEAD SCREW DIN7985-M 5X 8FLAT HEAD SCREW DIN7985-M 5X 8
