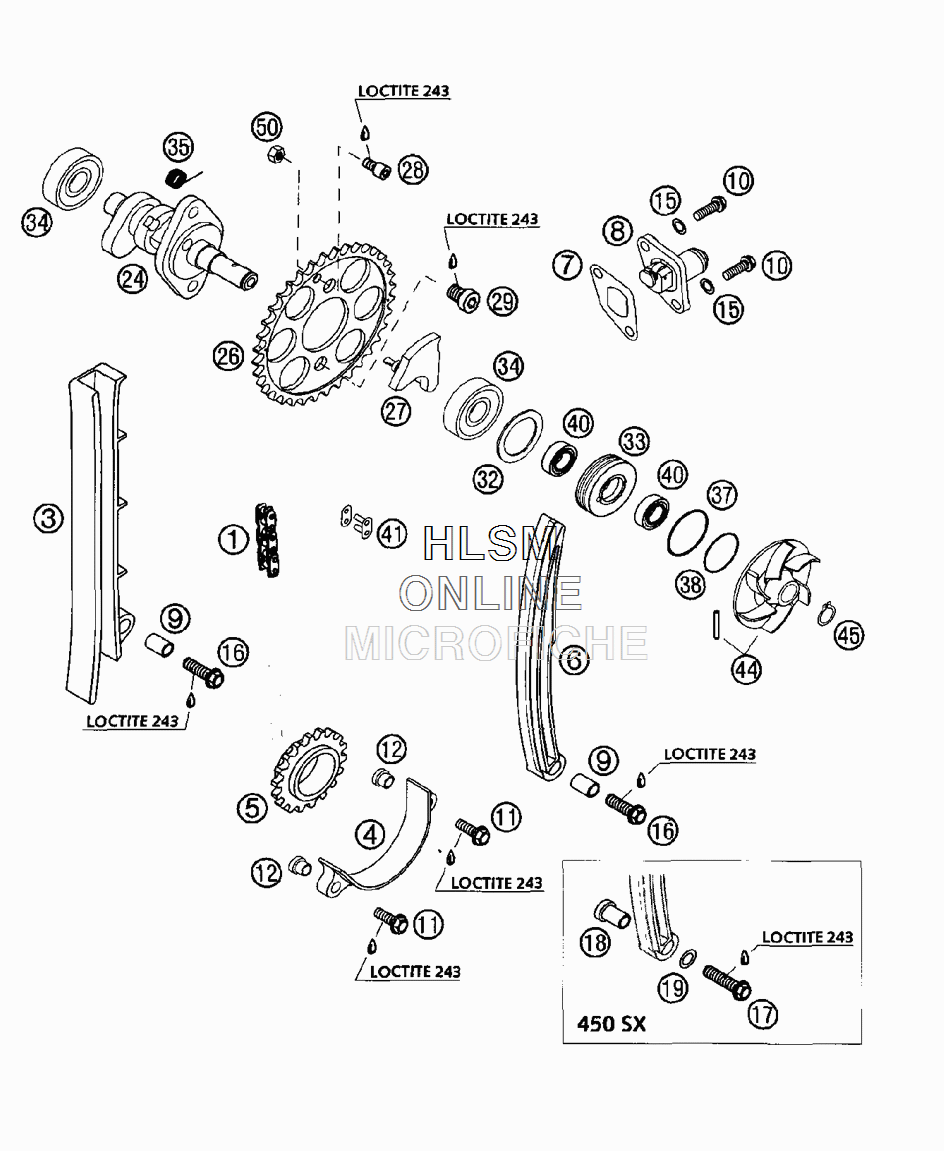

TIMING VALVE для Ktm 450 SX Racing/RFS - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    59436013000 TIMING CHAIN 450
    TIMING CHAIN 450
  • 3
    59036001000 TIMING CHAIN GUIDE RACING
    TIMING CHAIN GUIDE RACING
  • 4
    59036018000 SECURING GUIDE RACING
    SECURING GUIDE RACING
  • 5
    59036014000 TIMING GEAR 18-T
    TIMING GEAR 18-T
  • 6
    59036002000 TIMING CHAIN TENSIONER
    TIMING CHAIN TENSIONER
  • 7
    59036003050 GASKET TIMING CHAIN TENSIONER
    GASKET TIMING CHAIN TENSIONER
  • 8
    59036003000 TIMINGCHAIN TENSIONER CPL.RAC.
    TIMINGCHAIN TENSIONER CPL.RAC.
  • 9
    59036001050 SPACER BUSHING 6,1X8,2X13,1
    SPACER BUSHING 6,1X8,2X13,1
  • 10
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 11
    0015050163 HH COLLAR SCREW M 5X16 WS=8
    HH COLLAR SCREW M 5X16 WS=8
  • 12
    59036018050 SUPPORTING SLEEVE 5,2X7X10X7,7
    SUPPORTING SLEEVE 5,2X7X10X7,7
  • 15
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 16
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 17
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 18
    59436001050 SPACER BUSHING
    SPACER BUSHING
  • 19
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 24
    59436010000 CAMSHAFT 55 2003
    CAMSHAFT 55 2003
  • 26
    59036011000 CAMSHAFT GEAR 36-T
    CAMSHAFT GEAR 36-T
  • 27
    59036016000 AUTO DECOMPRESSION SHAFT
    AUTO DECOMPRESSION SHAFT
  • 28
    0912050106 AH SCREW M5X10 DIN912 10.9
    AH SCREW M5X10 DIN912 10.9
  • 29
    0984080103 AH SCREW DIN7984-M 8X10
    AH SCREW DIN7984-M 8X10
  • 32
    59036082000 WASHER 26,7X34X1,3
    WASHER 26,7X34X1,3
  • 33
    59036081100 GASKET SUPPORT
    GASKET SUPPORT
  • 34
    0625062014 BALL BEARING 6201 C3 LLB
    BALL BEARING 6201 C3 LLB
  • 35
    59036017000 SPRING FOR AUTODECOMPRESSION
    SPRING FOR AUTODECOMPRESSION
  • 37
    0770291016 O-RING 29,10X1,60 NBR 70
    O-RING 29,10X1,60 NBR 70
  • 38
    0770020220 O-RING 25,12X1,78 NBR70
    O-RING 25,12X1,78 NBR70
  • 40
    0760101842 SHAFT SEAL R.10X18X4 B-NBR SB
    SHAFT SEAL R.10X18X4 B-NBR SB
  • 41
    59036013050 RIVET LINK FOR TIMING CHAIN
    RIVET LINK FOR TIMING CHAIN
  • 44
    59035055144 WATER PUMP WHEEL CPL. RAC
    WATER PUMP WHEEL CPL. RAC
  • 45
    0471100010 CIRCLIP DIN0471-10X1
    CIRCLIP DIN0471-10X1
  • 50
    0980050003 HEXAGON STOP NUT DIN0980-M 5
    HEXAGON STOP NUT DIN0980-M 5
