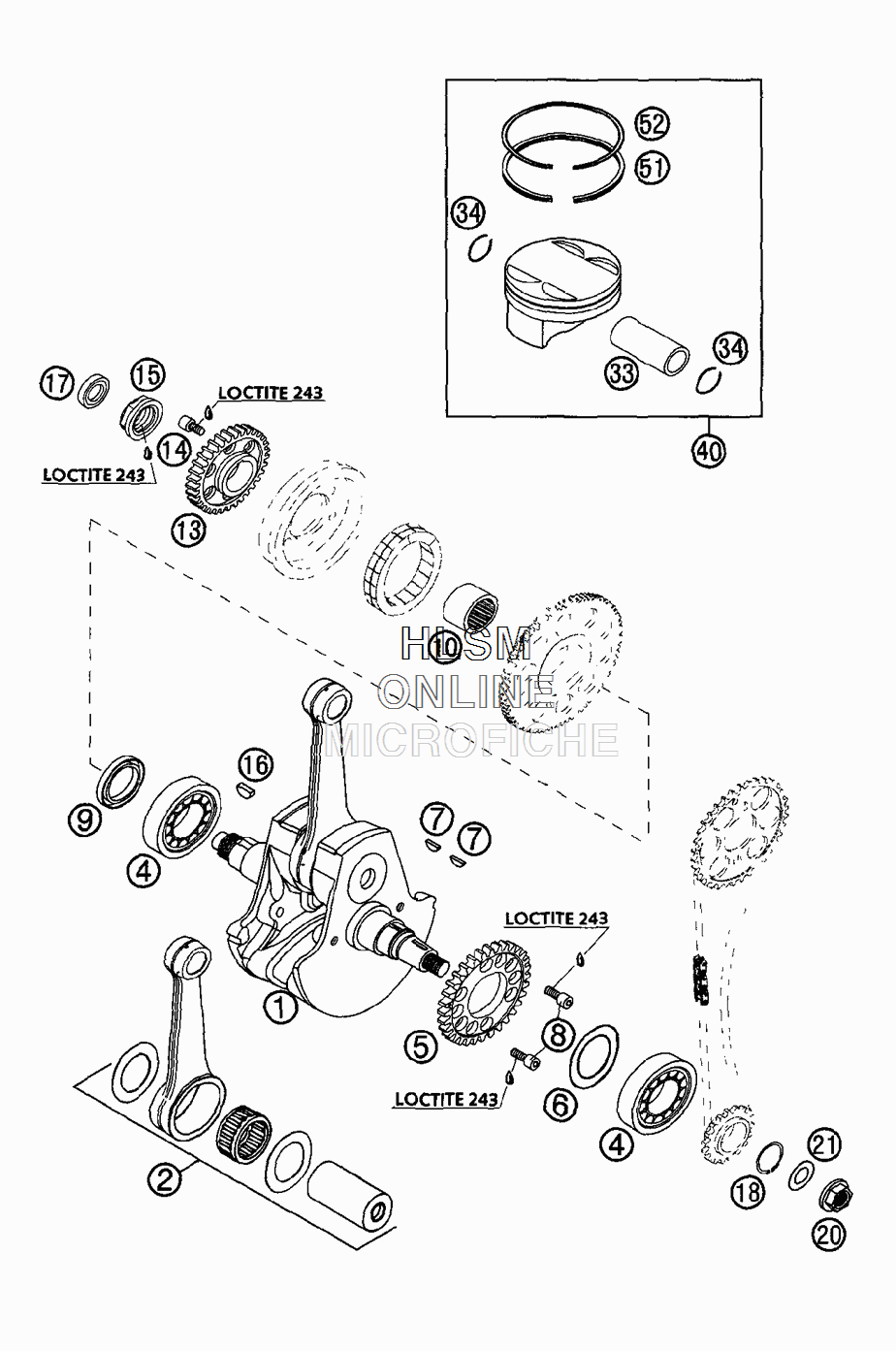

CRANKSHAFT W/ PISTON для Ktm 450 SX Racing/RFS - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    59430018000 CRANKSHSFT STROKE=63,4 03 (WITHOUT WASHER)
    CRANKSHSFT STROKE=63,4 03 (WITHOUT WASHER)
  • 2
    59430015044 CON.ROD REPSET
    CON.ROD REPSET
  • 4
    50330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46
    CYL.ROLLER BEAR.NJ206 ET2XCS46
  • 5
    59030055000 DRIVE GEAR 32-T F.BALANC.SHAFT
    DRIVE GEAR 32-T F.BALANC.SHAFT
  • 6
    56030081000 THRUST WASHER 30,5X45X0,10
    THRUST WASHER 30,5X45X0,10
  • 6
    56030081100 THRUST WASHER 30,7X47X0,15
    THRUST WASHER 30,7X47X0,15
  • 6
    56030081200 THRUST WASHER 30,5X45X0,30
    THRUST WASHER 30,5X45X0,30
  • 7
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 8
    0984060162 AH SCREW DIN7984-M 6X16
    AH SCREW DIN7984-M 6X16
  • 9
    0760304771 SHAFT SEAL RING 30X47X7 BSL
    SHAFT SEAL RING 30X47X7 BSL
  • 10
    0618301617 NEEDLE BEARING HK 3016 B
    NEEDLE BEARING HK 3016 B
  • 13
    59032000033 PRIMARY GEAR 33-T
    PRIMARY GEAR 33-T
  • 14
    0912060106 AH SCREW DIN0912-M 6X10 10.9
    AH SCREW DIN0912-M 6X10 10.9
  • 15
    59030029100 HH NUR M20X1,5 WS=27 LEFT
    HH NUR M20X1,5 WS=27 LEFT
  • 16
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 17
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 18
    0471250120 CIRCLIP DIN0471-25X1,2
    CIRCLIP DIN0471-25X1,2
  • 20
    49030021000 COLLAR NUT M12X1 R/S
    COLLAR NUT M12X1 R/S
  • 21
    0137120000 SPRING WASHER DIN0137-812
    SPRING WASHER DIN0137-812
  • 33
    59030033000 PISTON PIN BOLT 20X15,8/12X50
    PISTON PIN BOLT 20X15,8/12X50
  • 34
    59030074000 CIRCLIP C20X1,5
    CIRCLIP C20X1,5
  • 40
    59430107000I PISTON D=95 51.1
    PISTON D=95 51.1
  • 40
    59430107000II PISTON D=95 SI.2
    PISTON D=95 SI.2
  • 51
    58030631000 OIL SCRAPER RING 95MM
    OIL SCRAPER RING 95MM
  • 52
    59030032000 RECTANGULAR RING 95/87,2X1,25
    RECTANGULAR RING 95/87,2X1,25
