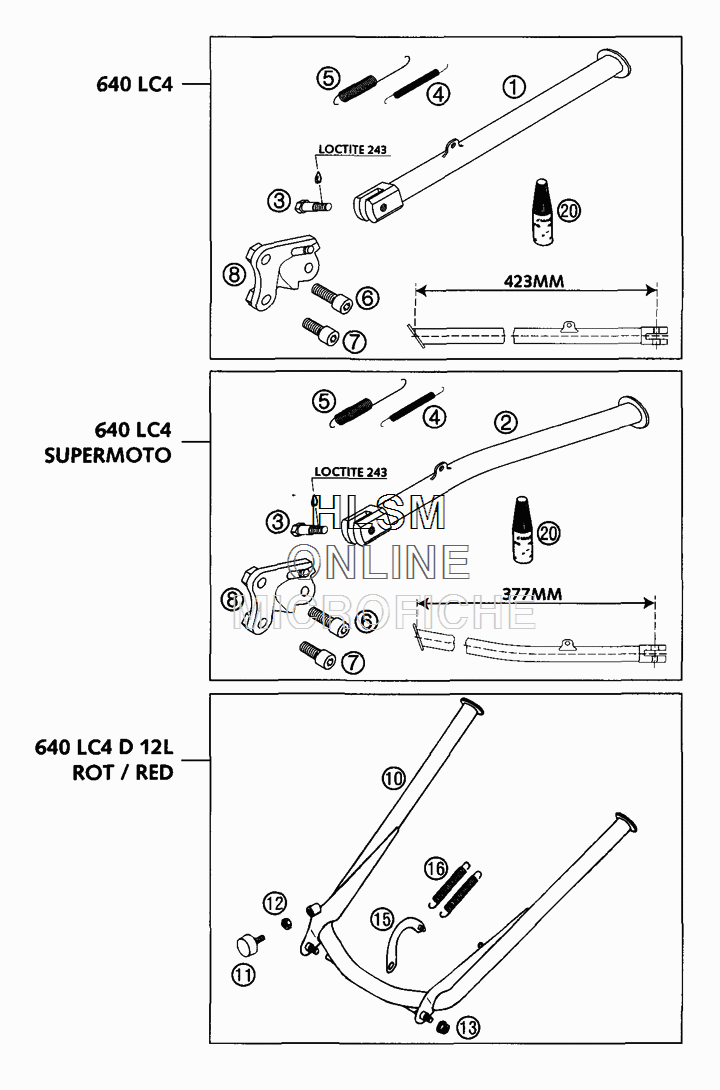

SIDE AND CENTER STAND для Ktm LC4 640 Super Moto - 2002 года выпуска

  • №
    Артикул
    Название
  • 2
    5840302370090 SIDESTAND SILV. M10 S.MOT.
    SIDESTAND SILV. M10 S.MOT.
  • 3
    58203027200 SCREW FOR SIDE STAND
    SCREW FOR SIDE STAND
  • 4
    58403030000 SIDESTAND SPRING D=7,7MM
    SIDESTAND SPRING D=7,7MM
  • 5
    51003021000 SIDESTAND SPRING LONG
    SIDESTAND SPRING LONG
  • 6
    0912100303 AH SCREW DIN0912-M10X30
    AH SCREW DIN0912-M10X30
  • 7
    0912100256 AH SCREW DIN0912-M10X25
    AH SCREW DIN0912-M10X25
  • 8
    58403026500 S.STAND BRACKET M10 LC4/S.
    S.STAND BRACKET M10 LC4/S.
  • 10
    57503022000 CENTER STAND 378MM SILVER
    CENTER STAND 378MM SILVER
  • 11
    58303070000 STOP RUBBER M8
    STOP RUBBER M8
  • 12
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 13
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 15
    5830302700090 SPRINGBOW SILVER
    SPRINGBOW SILVER
  • 16
    10003021000 STAND SPRING SHORT
    STAND SPRING SHORT
  • 20
    6899785 LOCTITE 243 BLUE 6CCM
    LOCTITE 243 BLUE 6CCM
