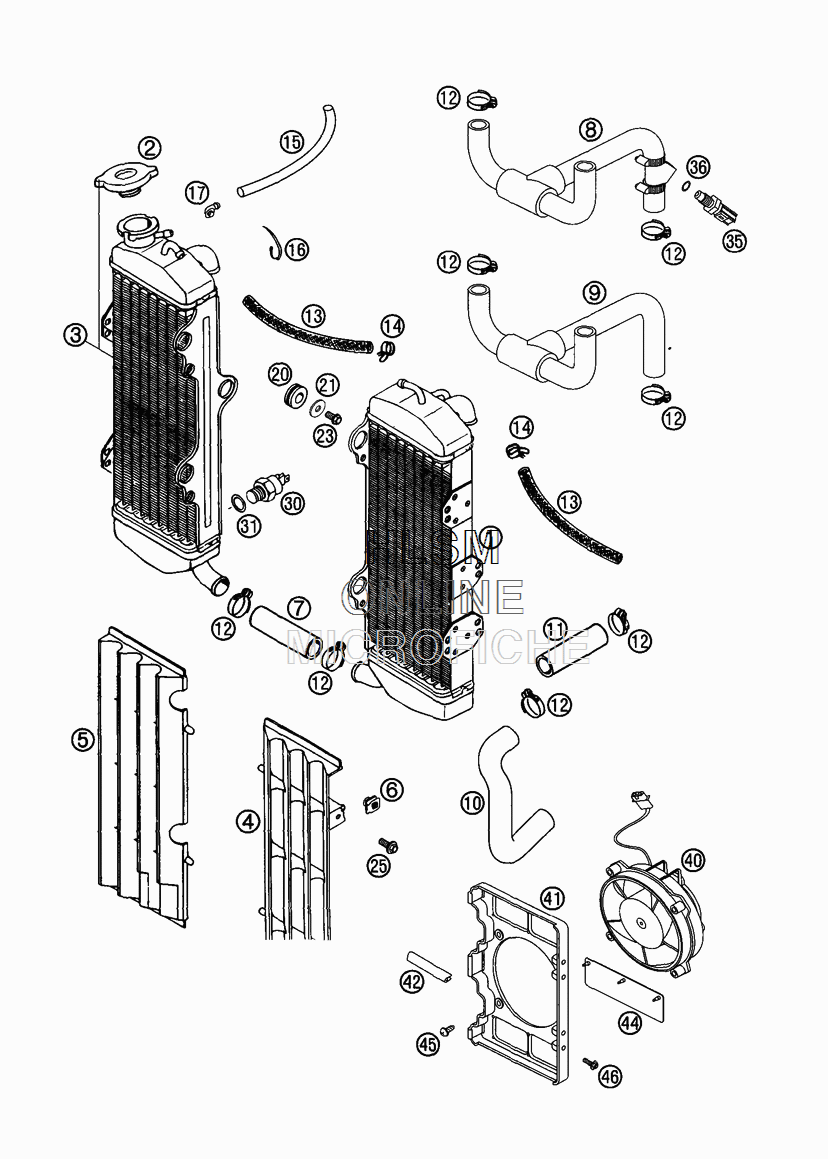

COOLING SYSTEM для Ktm LC4 640 Super Moto - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    58335008000 RADIATOR L/S (45246)
    RADIATOR L/S (45246)
  • 2
    58035016000 RADIATOR CAP SMALL 19,6 PSI
    RADIATOR CAP SMALL 19,6 PSI
  • 3
    57935008000 RADIATOR R/S (45335)
    RADIATOR R/S (45335)
  • 4
    58035034000 RADIATOR PROTECTOR L/S BLACK
    RADIATOR PROTECTOR L/S BLACK
  • 4
    58035034100 RADIATOR PROTECT. L/S WHITE
    RADIATOR PROTECT. L/S WHITE
  • 5
    58035134000 RADIATOR PROTECTOR R/S BLACK
    RADIATOR PROTECTOR R/S BLACK
  • 5
    58035134100 RADIATOR PROTECT. R/S WHITE
    RADIATOR PROTECT. R/S WHITE
  • 6
    50235033300 SNAP-NUT HOLDER M6 KP142
    SNAP-NUT HOLDER M6 KP142
  • 7
    56535025001 RADIATOR HOSE 18X25 PER METRE
    RADIATOR HOSE 18X25 PER METRE
  • 8
    58335026100 PREFORMED HOSE SENSOR
    PREFORMED HOSE SENSOR
  • 9
    58335026000 PREFORMED HOSE
    PREFORMED HOSE
  • 10
    58435025700 PREFORMED HOSE 18X25 PUMP-CYL.
    PREFORMED HOSE 18X25 PUMP-CYL.
  • 11
    58335024001 RADIATOR HOSE 20X26
    RADIATOR HOSE 20X26
  • 12
    10001020000 HOSE CLAMP GEM/ 16-27
    HOSE CLAMP GEM/ 16-27
  • 13
    54435024001 HOSE ID 7,5 PER METER
    HOSE ID 7,5 PER METER
  • 14
    50231005000 HOSE CLAMP YDNAC 10119
    HOSE CLAMP YDNAC 10119
  • 15
    55007016001 PVC-HOSE 7X10 PER METRE
    PVC-HOSE 7X10 PER METRE
  • 16
    44011076200 CABLE TIE 200MM
    CABLE TIE 200MM
  • 17
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 20
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 21
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 23
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 25
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 30
    58035045000 THERMOSWITCH 80-85 DG
    THERMOSWITCH 80-85 DG
  • 31
    0603142015 ALU SEALRING DIN7603-14X20X1,5
    ALU SEALRING DIN7603-14X20X1,5
  • 35
    60011252000 TEMPERAT.-SENSOR WATER LC8
    TEMPERAT.-SENSOR WATER LC8
  • 36
    0770100020 O-RING 2X10 SIL
    O-RING 2X10 SIL
  • 40
    58435041000 FAN CPL. 12V
    FAN CPL. 12V
  • 41
    58435044000 FAN CAP
    FAN CAP
  • 42
    58312085100 EDGE PROTECTOR FOR COVER
    EDGE PROTECTOR FOR COVER
  • 44
    58435044050 FAN FLAP RUBBER
    FAN FLAP RUBBER
  • 45
    0081500181 EJOT PT SCREW KA 50X18 WN1411
    EJOT PT SCREW KA 50X18 WN1411
  • 46
    0017060203 SPECIAL SCREW T60 6X20
    SPECIAL SCREW T60 6X20
