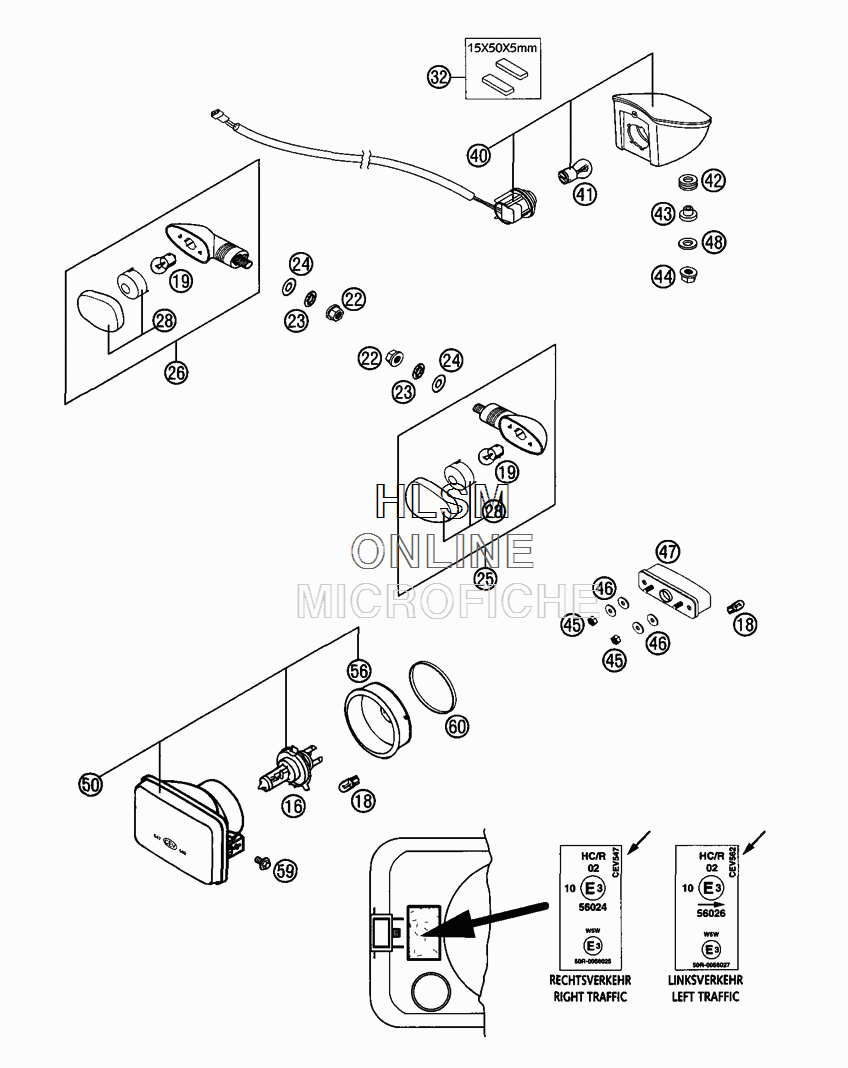

HEAD LIGHT W/ REAR LIGHT - FLASHER для Ktm LC4 640 Super Moto - 2002 года выпуска`
-
№АртикулНазвание
-
1657111038000 BULB H4 12V 60/55W (P43T)BULB H4 12V 60/55W (P43T)
-
1849011435000 BULB 12V 5W (W2,1X9,5D)BULB 12V 5W (W2,1X9,5D)
-
1944111015100 BULB 12V 10W (BA15S)BULB 12V 10W (BA15S)
-
2258414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
230797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
240125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
2558414025100 FLASHER CPL.FRONT L/S REAR R/S (WHITE)FLASHER CPL.FRONT L/S REAR R/S (WHITE)
-
2658414026100 FLASHER CPL.FRONT R/S REAR L/S (WHITE)FLASHER CPL.FRONT R/S REAR L/S (WHITE)
-
2858414028100 FLASHER LENS L/S & R/S 02 (WHITE, ORANGE)FLASHER LENS L/S & R/S 02 (WHITE, ORANGE)
-
3258411055150 METAMOLL FOR BATTERY BRACKET (15MM X 50MM X 5MM)METAMOLL FOR BATTERY BRACKET (15MM X 50MM X 5MM)
-
4058414040100 REAR LIGHT CPL.REAR LIGHT CPL.
-
4158414042000 BULB 12V 21/5W (BA15S)REINFOR.BULB 12V 21/5W (BA15S)REINFOR.
-
4241001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
4358714048000 REAR LIGHT BUSHINGREAR LIGHT BUSHING
-
4456509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
450985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
460021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
4758414047000 LICENSE-PLATE ILLUMINATIONLICENSE-PLATE ILLUMINATION
-
480021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
5058414001100 HEAD LIGHT CEV 547 RIGHT/S. H4 (RHD)HEAD LIGHT CEV 547 RIGHT/S. H4 (RHD)
-
5058414001200 HEAD LIGHT CEV 562 LEFT/S. H4 (LHD)HEAD LIGHT CEV 562 LEFT/S. H4 (LHD)
-
5058414001300 HEAD LIGHT SAE 547 USA H4 (ONLY FOR USA)HEAD LIGHT SAE 547 USA H4 (ONLY FOR USA)
-
5650211537000 RUBBER CAPRUBBER CAP
-
590014060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
-
6058414002000 RING D=50X1,5X6RING D=50X1,5X6
