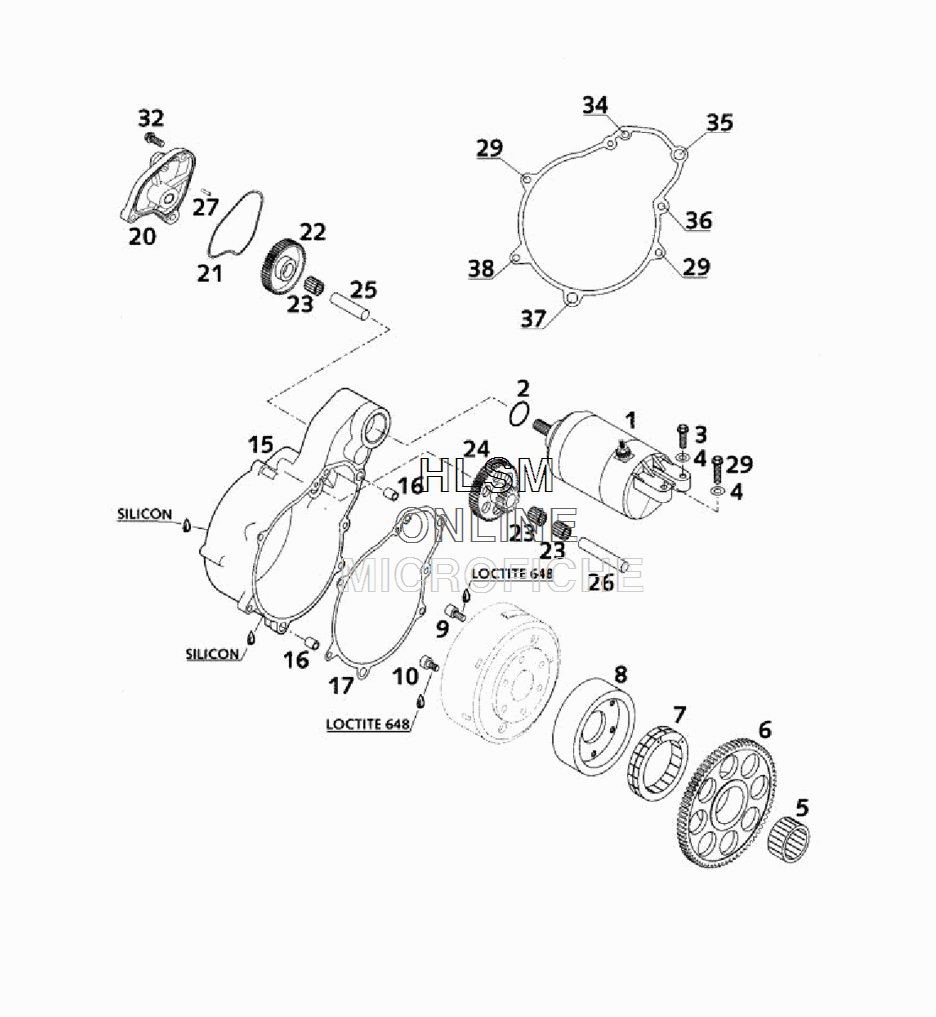

ELECTRIC STARTER для Ktm LC4 640 Duke II - 2001 года выпуска`
-
№АртикулНазвание
-
158440001000 E-STARTER ENGINE CPL.E-STARTER ENGINE CPL.
-
20770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
30015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
40125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
558440090100 NEEDLE BEARING K30 X 37 X 18NEEDLE BEARING K30 X 37 X 18
-
658440020079 FREE-WHEEL-GEAR 79-TFREE-WHEEL-GEAR 79-T
-
758440026000 FREE-WHEEL FWD 332008 BLSFREE-WHEEL FWD 332008 BLS
-
858440025000 FREEWHEEL HUBFREEWHEEL HUB
-
90912060121 AH SCREW DIN0912-M 6X12AH SCREW DIN0912-M 6X12
-
1058440098000 AH CENTERING SCREW M6X12,5AH CENTERING SCREW M6X12,5
-
1558440010100 STARTER FLANGE BLACKSTARTER FLANGE BLACK
-
1649030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
1758440042000 STARTER FLANGE GASKETSTARTER FLANGE GASKET
-
2058440011100 STARTER COVER BLACKSTARTER COVER BLACK
-
2158440011050 FORM RING F.STARTER COVER NBR70FORM RING F.STARTER COVER NBR70
-
2258440022000 INTERMEDIATE GEAR 52-TINTERMEDIATE GEAR 52-T
-
2358440090000 NEEDLE BEARING K10 X 13 X 13NEEDLE BEARING K10 X 13 X 13
-
2458440021018 REDUCTION GEAR 55-T/18-ZREDUCTION GEAR 55-T/18-Z
-
2558440028000 BEARING BOLT 10 X 38,4BEARING BOLT 10 X 38,4
-
2658440029000 BEARING BOLT 10 X 54BEARING BOLT 10 X 54
-
270402040780 NEEDLEROLL. DIN5402 NBR 4 X 7,8NEEDLEROLL. DIN5402 NBR 4 X 7,8
-
290015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
320015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
340015060453 HH COLLAR SCREW M 6X45 WS=8HH COLLAR SCREW M 6X45 WS=8
-
350015060503 HH COLLAR SCREW M 6X50 WS=8HH COLLAR SCREW M 6X50 WS=8
-
360015060803 HH COLLAR SCREW M 6X80 WS=8HH COLLAR SCREW M 6X80 WS=8
-
370015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
380015060953 HH COLLAR SCREW M 6X95 WS=8HH COLLAR SCREW M 6X95 WS=8
