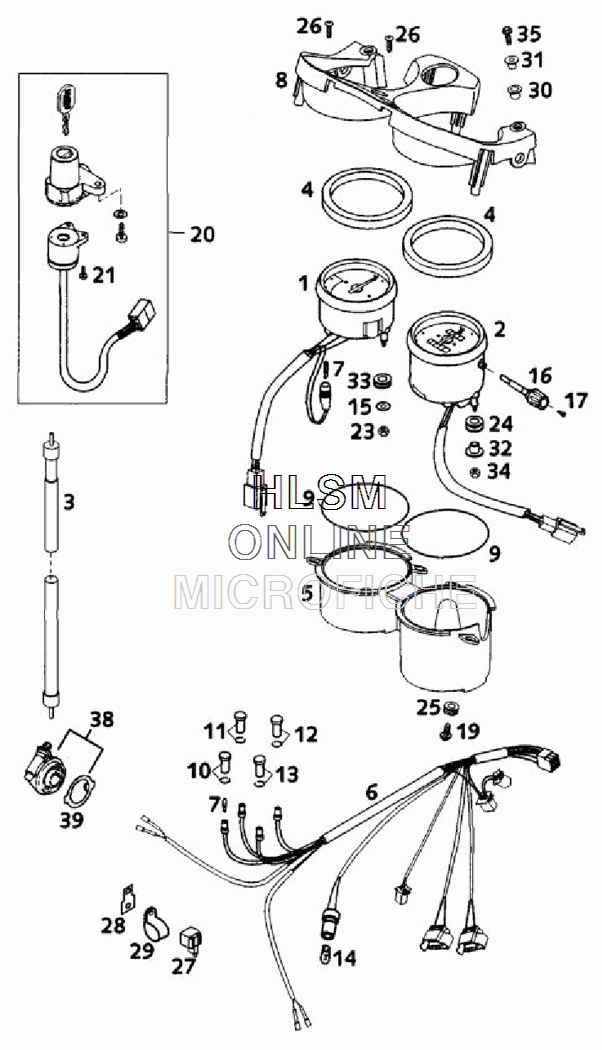

SPEEDOMETER - TACHOMETER для Ktm LC4 640 Duke II - 2001 года выпуска
-
№АртикулНазвание
-
158714075000 TACHOMETERTACHOMETER
-
258714057000 SPEEDOMETER KMHSPEEDOMETER KMH
-
258714057100 SPEEDOMETER MILESSPEEDOMETER MILES
-
358714055000 SPEEDOM.CABLE M12/12 785MMSPEEDOM.CABLE M12/12 785MM
-
458714067000 FOAM RUBBER RING 92X110X15FOAM RUBBER RING 92X110X15
-
558711051000 INSTRUMENTS BRACKETINSTRUMENTS BRACKET
-
658711082000 WIRING HARNESS COCKPITWIRING HARNESS COCKPIT
-
749111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
858714070000 INSTRUMENTS COVERINSTRUMENTS COVER
-
90770860025 O-RING 86,00X2,50 NBR701TO-RING 86,00X2,50 NBR701T
-
1058011021300 H.BEAM INDICATOR LIGHT BLUEH.BEAM INDICATOR LIGHT BLUE
-
1158011023300 NEUTRAL INDIC. LIGHT GREENNEUTRAL INDIC. LIGHT GREEN
-
1258011022400 TEMPERATURE WARN. LIGHT REDTEMPERATURE WARN. LIGHT RED
-
1358011024300 FLASHER INDICAT.LIGHT GREENFLASHER INDICAT.LIGHT GREEN
-
1449011435000 BULB 12V 5W (W2,1X9,5D)BULB 12V 5W (W2,1X9,5D)
-
150134070003 WASHER DIN0134- 7,4WASHER DIN0134- 7,4
-
1658714049000 RESET KNOB FOR TRIPMETERRESET KNOB FOR TRIPMETER
-
1758714049010 SCREW FOR RESET KNOBSCREW FOR RESET KNOB
-
190016050121 PLASTIC SCREW KA50X12 PT1411PLASTIC SCREW KA50X12 PT1411
-
2058411066000 IGNITION LOCK (EURO)IGNITION LOCK (EURO)
-
2058411066100 IGNITION LOCK (USA)IGNITION LOCK (USA)
-
210985040123 FLAT HEAD SCREW DIN7985-M 4X12FLAT HEAD SCREW DIN7985-M 4X12
-
230934050003 HEXAGON NUT DIN0934-M 5HEXAGON NUT DIN0934-M 5
-
2431008080000 RUBBER GROMMIT BL. DA60/110/30RUBBER GROMMIT BL. DA60/110/30
-
2531008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
260017050181 PLASTIC SCREW KB 5X18 BLACKPLASTIC SCREW KB 5X18 BLACK
-
2744611207200 FLASHER UNIT SUMITOMO ADV.FLASHER UNIT SUMITOMO ADV.
-
2858211031100 BRACKET FOR FLASHER RELAISEBRACKET FOR FLASHER RELAISE
-
2957013070400 PVC CLAMP HEYCO 11/16 3377PVC CLAMP HEYCO 11/16 3377
-
3031008070000 RUBBER GROMMIT D=7,6MMRUBBER GROMMIT D=7,6MM
-
3158714070050 BUSHING F. INSTRUMENTS COVERBUSHING F. INSTRUMENTS COVER
-
3258714062010 DISTANCE BUSHINGDISTANCE BUSHING
-
3331008008000 RUBBER GROMMIT BLACKRUBBER GROMMIT BLACK
-
340985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
350015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
3858311052000 SPEED OME.DRIVE748208(2,66)SPEED OME.DRIVE748208(2,66)
-
3958111053100 DRIVING DOG F.SPEEDOM.DRIVEDRIVING DOG F.SPEEDOM.DRIVE
