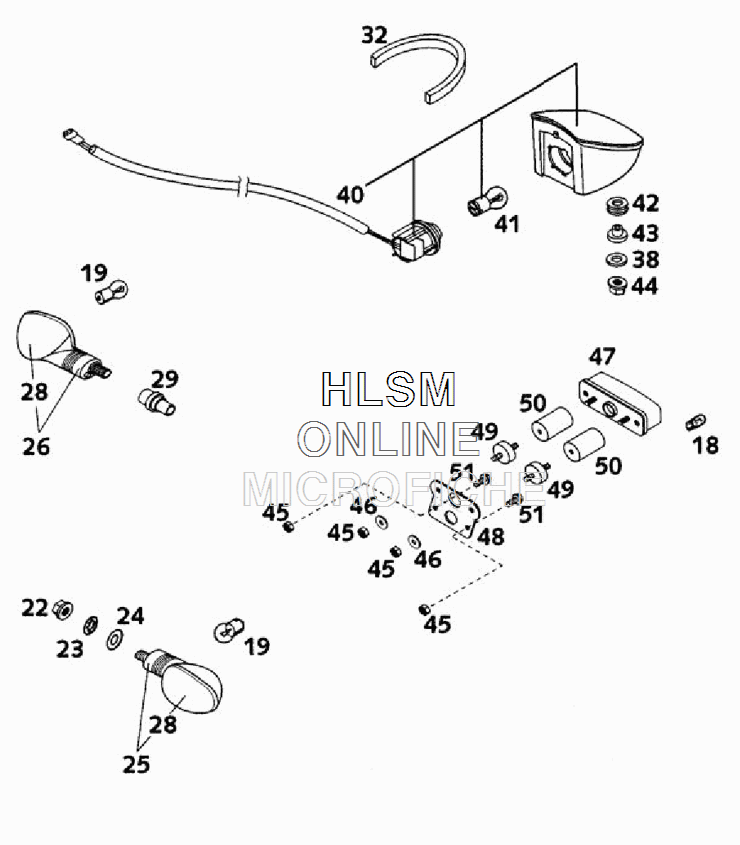

FLASHER - REAR LIGHT для Ktm LC4 640 Duke II - 2001 года выпуска

  • №
    Артикул
    Название
  • 18
    49011435000 BULB 12V 5W (W2,1X9,5D)
    BULB 12V 5W (W2,1X9,5D)
  • 19
    44111015100 BULB 12V 10W (BA15S)
    BULB 12V 10W (BA15S)
  • 22
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 23
    0797100003 LOCK WASHER DIN6797-110,5 ZI
    LOCK WASHER DIN6797-110,5 ZI
  • 24
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 25
    5841402500030 FLASHER CPL.FRONT L/S REAR R/S (BLACK)
    FLASHER CPL.FRONT L/S REAR R/S (BLACK)
  • 26
    5841402600030 FLASHER CPL.FRONT R/S REAR L/S (BLACK)
    FLASHER CPL.FRONT R/S REAR L/S (BLACK)
  • 28
    58414028000 FLASHER LENS L/S & R/S
    FLASHER LENS L/S & R/S
  • 29
    58714030000 FLASHER SUPPORT M10X1,25 SW=17
    FLASHER SUPPORT M10X1,25 SW=17
  • 32
    58211001063 FOAM 4X9MM PER METER
    FOAM 4X9MM PER METER
  • 38
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 40
    58414040100 REAR LIGHT CPL.
    REAR LIGHT CPL.
  • 41
    58414042000 BULB 12V 21/5W (BA15S)REINFOR.
    BULB 12V 21/5W (BA15S)REINFOR.
  • 42
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 43
    58714048000 REAR LIGHT BUSHING
    REAR LIGHT BUSHING
  • 44
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 45
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 46
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 47
    58414047000 LICENSE-PLATE ILLUMINATION
    LICENSE-PLATE ILLUMINATION
  • 48
    58708015060 BRACKET F.LICENSE-PLATE ILLUM.
    BRACKET F.LICENSE-PLATE ILLUM.
  • 49
    49001426000 RUBBER GROMMET 20X10-M6X12 (2)
    RUBBER GROMMET 20X10-M6X12 (2)
  • 50
    58708015070 CONNECTING PIECE M6/M5 L=25MM
    CONNECTING PIECE M6/M5 L=25MM
  • 51
    0015050123 HH COLLAR SCREW M 5X12 WS=8
    HH COLLAR SCREW M 5X12 WS=8
