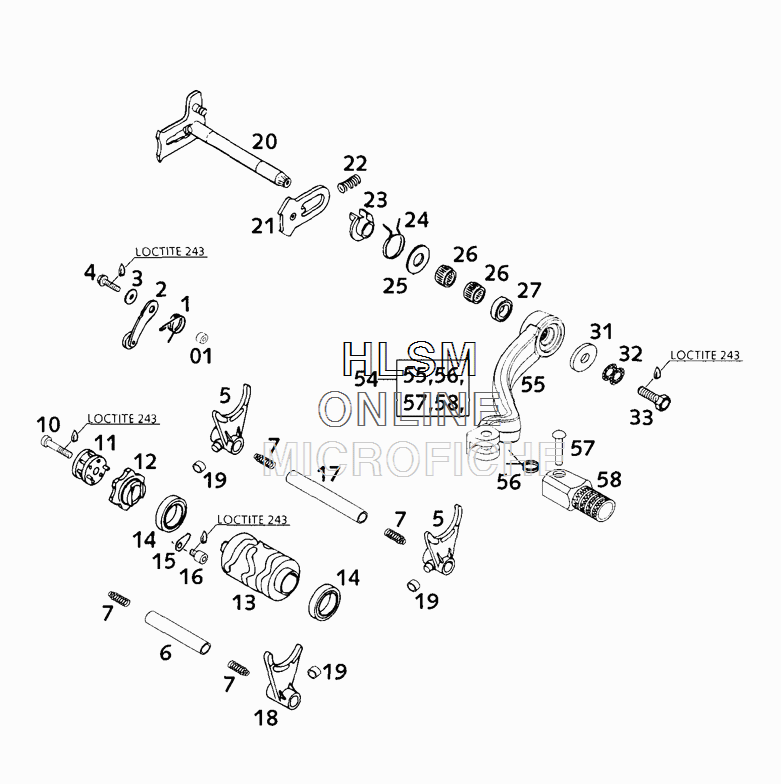

SHIFTING MECHANISM для Ktm 380 SX - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    54634023300 LOCKING LEVER SPRING D=2,3MM
    LOCKING LEVER SPRING D=2,3MM
  • 01
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 2
    54634024144 LOCKING LEVER CPL
    LOCKING LEVER CPL
  • 3
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 4
    0015050203 HH COLLAR SCREW M 5X20 WS=8
    HH COLLAR SCREW M 5X20 WS=8
  • 5
    54734002000 SHIFTING FORK 1./3.GEAR+2.G
    SHIFTING FORK 1./3.GEAR+2.G
  • 6
    54734019000 SHIFTING RAIL 75,8MM MAINS.
    SHIFTING RAIL 75,8MM MAINS.
  • 7
    58038023200 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 10
    0912060303 AH SCREW DIN0912-M 6X30
    AH SCREW DIN0912-M 6X30
  • 11
    54634013044 DRIVER F. SHIFT ROLLER W NEEDLE
    DRIVER F. SHIFT ROLLER W NEEDLE
  • 12
    54634015000 LOCKING ROLLER
    LOCKING ROLLER
  • 13
    54734012000 SHIFT ROLLER
    SHIFT ROLLER
  • 14
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 15
    54634049000 RETAINING PLATE
    RETAINING PLATE
  • 16
    0912060083 AH SCREW DIN0912-M 6X 8
    AH SCREW DIN0912-M 6X 8
  • 17
    54734020000 SHIFTING RAIL 96,8MM COUNT.
    SHIFTING RAIL 96,8MM COUNT.
  • 18
    54734001000 SHIFTING FORK 4./5.GANG
    SHIFTING FORK 4./5.GANG
  • 19
    50334018100 SHIFTING ROLLER 6X8X5,2
    SHIFTING ROLLER 6X8X5,2
  • 20
    54634005044 SHIFTING SHAFT CPL
    SHIFTING SHAFT CPL
  • 21
    54634008000 SLIDING PLATE
    SLIDING PLATE
  • 22
    56534013100 SPANNER SPRING 0,8MM
    SPANNER SPRING 0,8MM
  • 23
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 24
    54634014100 RETURN SPRING 2,2MM
    RETURN SPRING 2,2MM
  • 25
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 26
    54632095000 NEEDLE BEAR.HK 1412 14,6X20X12
    NEEDLE BEAR.HK 1412 14,6X20X12
  • 27
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 31
    50232050001 STEEL WASHER 6X17X3
    STEEL WASHER 6X17X3
  • 32
    50233041000 PAIR OF WASHERS M6 NORDLOCK
    PAIR OF WASHERS M6 NORDLOCK
  • 33
    0933060165 HH SCREW DIN0933-M 6X16
    HH SCREW DIN0933-M 6X16
  • 54
    54734031000 SHIFT LEVER CPL. 2-STROKE
    SHIFT LEVER CPL. 2-STROKE
  • 56
    54634032100 SHIFTING LEVER SPRING 250
    SHIFTING LEVER SPRING 250
  • 57
    54634031050 BOLT 6X25 FOR SHIFT LEVER
    BOLT 6X25 FOR SHIFT LEVER
  • 58
    54634131000 STEP PLATE FOR SHIFT LEVER
    STEP PLATE FOR SHIFT LEVER
