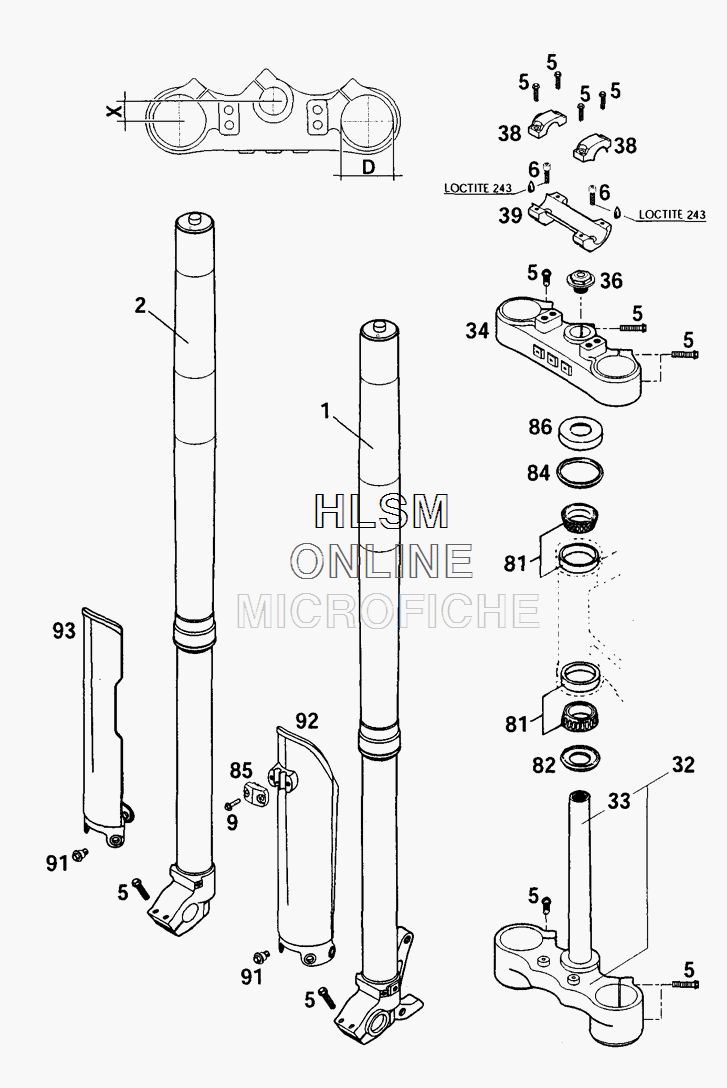

FRONT FORK для Ktm 380 SX - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0518V703LS FORK LEG L/S WP
    FORK LEG L/S WP
  • 2
    0518V703RS FORK LEG R/S WP
    FORK LEG R/S WP
  • 5
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 6
    0912100250 AH SCREW DIN0912-M10X25 WLOCK
    AH SCREW DIN0912-M10X25 WLOCK
  • 9
    0017060203 SPECIAL SCREW T60 6X20
    SPECIAL SCREW T60 6X20
  • 32
    59001132020 BOT.TRIPLE CLAMP X=20MM/D=57MM
    BOT.TRIPLE CLAMP X=20MM/D=57MM
  • 33
    50101033100 FORK TUBE L=244 '91
    FORK TUBE L=244 '91
  • 34
    59001034020 TOP TRIPLE CLAMP X=20MM/D=54MM
    TOP TRIPLE CLAMP X=20MM/D=54MM
  • 36
    50301036000 STEER.HEAD SCREW M2OX1,5 SW=27
    STEER.HEAD SCREW M2OX1,5 SW=27
  • 38
    59001038200 HANDLEBAR CLAMP D=28MM
    HANDLEBAR CLAMP D=28MM
  • 39
    59001039100 HANDLEBAR SUPPORT 28MM
    HANDLEBAR SUPPORT 28MM
  • 81
    54201081000 TAPERED ROLLER BEARING
    TAPERED ROLLER BEARING
  • 82
    54601084100 O-RING SUPPORT W SEALING LIP
    O-RING SUPPORT W SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 85
    59001085100 CLAMP F.SPEED.CABLE D=6MM 2001 (BLACK)
    CLAMP F.SPEED.CABLE D=6MM 2001 (BLACK)
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 91
    59001092050 SPECIAL SCREW M6X12,5 SW=8
    SPECIAL SCREW M6X12,5 SW=8
  • 92
    59001092100 FORK PROTECTION L/S BLACK
    FORK PROTECTION L/S BLACK
  • 93
    59001093100 FORK PROTECTION R/S BLACK
    FORK PROTECTION R/S BLACK
