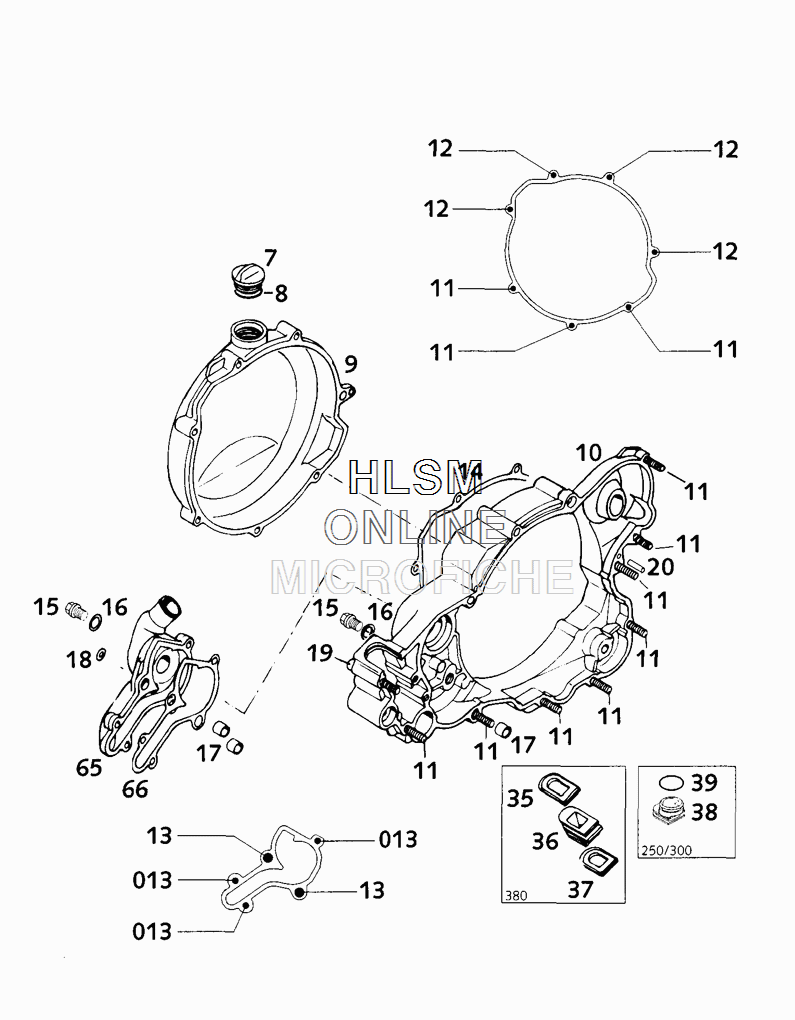

CLUTCH COVER для Ktm 380 SX - 2001 года выпуска

  • №
    Артикул
    Название
  • 7
    58030020000 PLUG M24 X 3
    PLUG M24 X 3
  • 8
    0770160030 O-RING 16,00X3,00 NBR 70
    O-RING 16,00X3,00 NBR 70
  • 9
    5463010100098 OUTER CLUTCH COVER
    OUTER CLUTCH COVER
  • 10
    54630001300 CLUTCH COVER
    CLUTCH COVER
  • 11
    0015060303 HH COLLAR SCREW M6X30 WS=8
    HH COLLAR SCREW M6X30 WS=8
  • 12
    0015060703 HH COLLAR SCREW M6X70 WS=8
    HH COLLAR SCREW M6X70 WS=8
  • 13
    0015060253 HH COLLAR SCREW M6X25 WS=8
    HH COLLAR SCREW M6X25 WS=8
  • 013
    0015060203 HH COLLAR SCREW M6X20 WS=8
    HH COLLAR SCREW M6X20 WS=8
  • 14
    54630025050 OUTER CLUTCH COVER GASKET
    OUTER CLUTCH COVER GASKET
  • 15
    0910100003 PLUG DIN0910-M10X1
    PLUG DIN0910-M10X1
  • 16
    42013226000 CU-SEAL RING DIN7603-10X16X1
    CU-SEAL RING DIN7603-10X16X1
  • 17
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 18
    0603061001 CU-SEAL RING DIN7603- 6X10X1
    CU-SEAL RING DIN7603- 6X10X1
  • 19
    0015060453 HH COLLAR SCREW M 6X45 WS=8
    HH COLLAR SCREW M 6X45 WS=8
  • 20
    0007050160 CYLINDER PIN DIN0007- 5X16
    CYLINDER PIN DIN0007- 5X16
  • 35
    54637207000 SEALING ELEMENT TOP
    SEALING ELEMENT TOP
  • 36
    54637007000 GASKET
    GASKET
  • 37
    54637107000 SEALING ELEMENT BOTTOM
    SEALING ELEMENT BOTTOM
  • 38
    54737091000 SEALING CARRIER
    SEALING CARRIER
  • 39
    0770021160 O-RING 18,72X2,62
    O-RING 18,72X2,62
  • 65
    54635001000 WATER PUMP COVER
    WATER PUMP COVER
  • 66
    54635003200 WATER PUMP COVER GASKET
    WATER PUMP COVER GASKET
