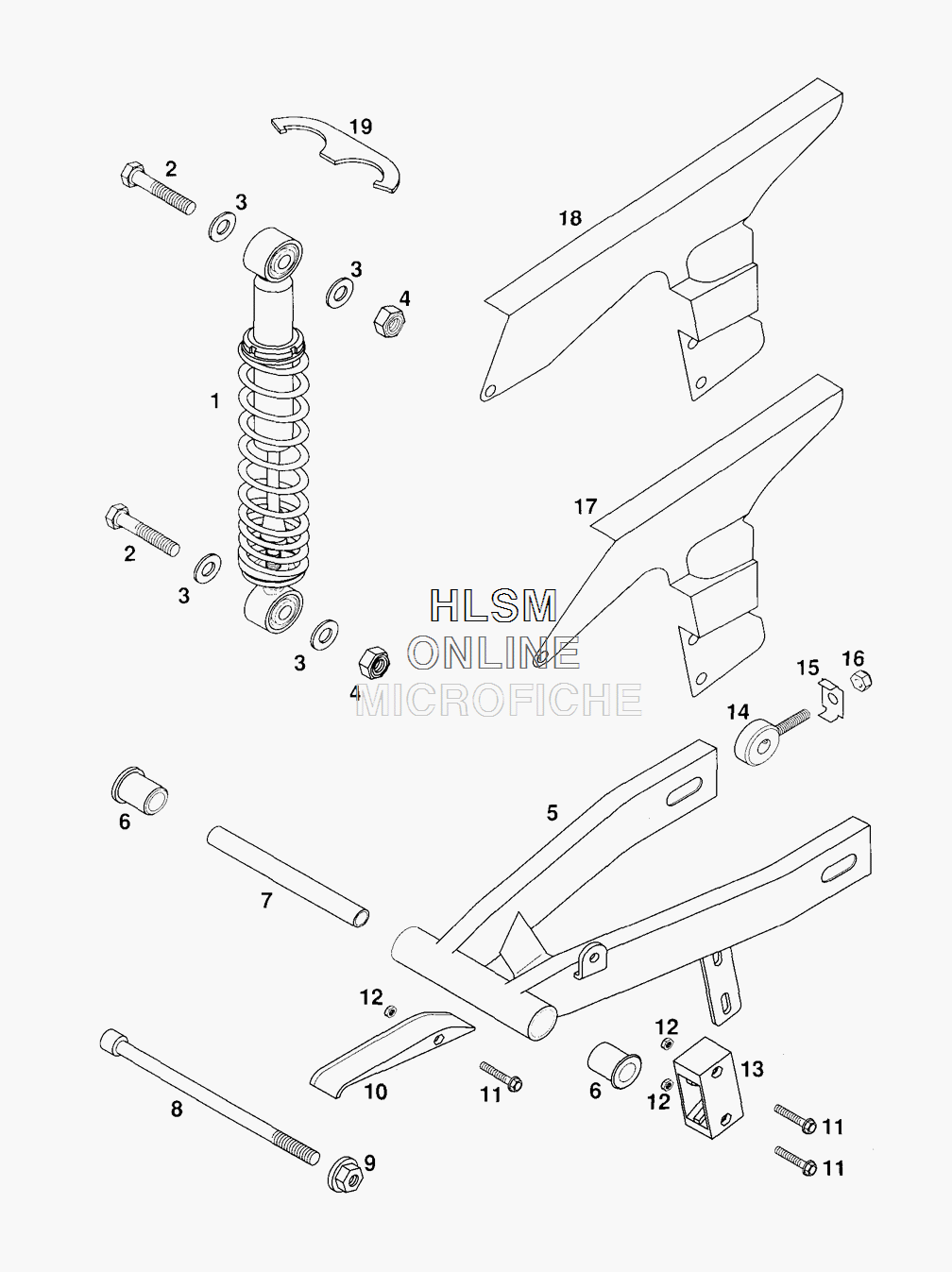

SWINGARM W/ SHOCK ABSORBER для Ktm 50 Jr Adventure - 2000 года выпуска`
-
№АртикулНазвание
-
145004010500 SHOCK ABSOR. ADV. MC24 L=248MMSHOCK ABSOR. ADV. MC24 L=248MM
-
145004010300 SHOCK AB.PRO JUN. MC30 L=255MMSHOCK AB.PRO JUN. MC30 L=255MM
-
145004010600 SHOCK AB. SX SEN. L=275MMSHOCK AB. SX SEN. L=275MM
-
20931100453 HH SCREW DIN0931-M10X45HH SCREW DIN0931-M10X45
-
30125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
40985100003 SELF LOCKING NUT DIN0985-M10SELF LOCKING NUT DIN0985-M10
-
545004030100 SWING ARMSWING ARM
-
645004031000 BEARING BUSH L=30 MMBEARING BUSH L=30 MM
-
745004039000 SPACING TUBE 10X13X140 MMSPACING TUBE 10X13X140 MM
-
80912101603 AH SCREW DIN0912-M10X160AH SCREW DIN0912-M10X160
-
954630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
1045004066000 CHAIN GUIDE FRONTCHAIN GUIDE FRONT
-
110015050303 HH COLLAR SCREW M 5X30 WS=8HH COLLAR SCREW M 5X30 WS=8
-
120985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
1345004070000 CHAIN GUIDE REARCHAIN GUIDE REAR
-
1445010083000 CHAIN ADJUSTERCHAIN ADJUSTER
-
1545010083060 SUPPORTING BRACKETSUPPORTING BRACKET
-
160985080003 SELF LOCKING NUT DIN0985-M 8SELF LOCKING NUT DIN0985-M 8
-
1745007060000 CHAINGUARDCHAINGUARD
-
1945004010090 HOOK WRENCHHOOK WRENCH
