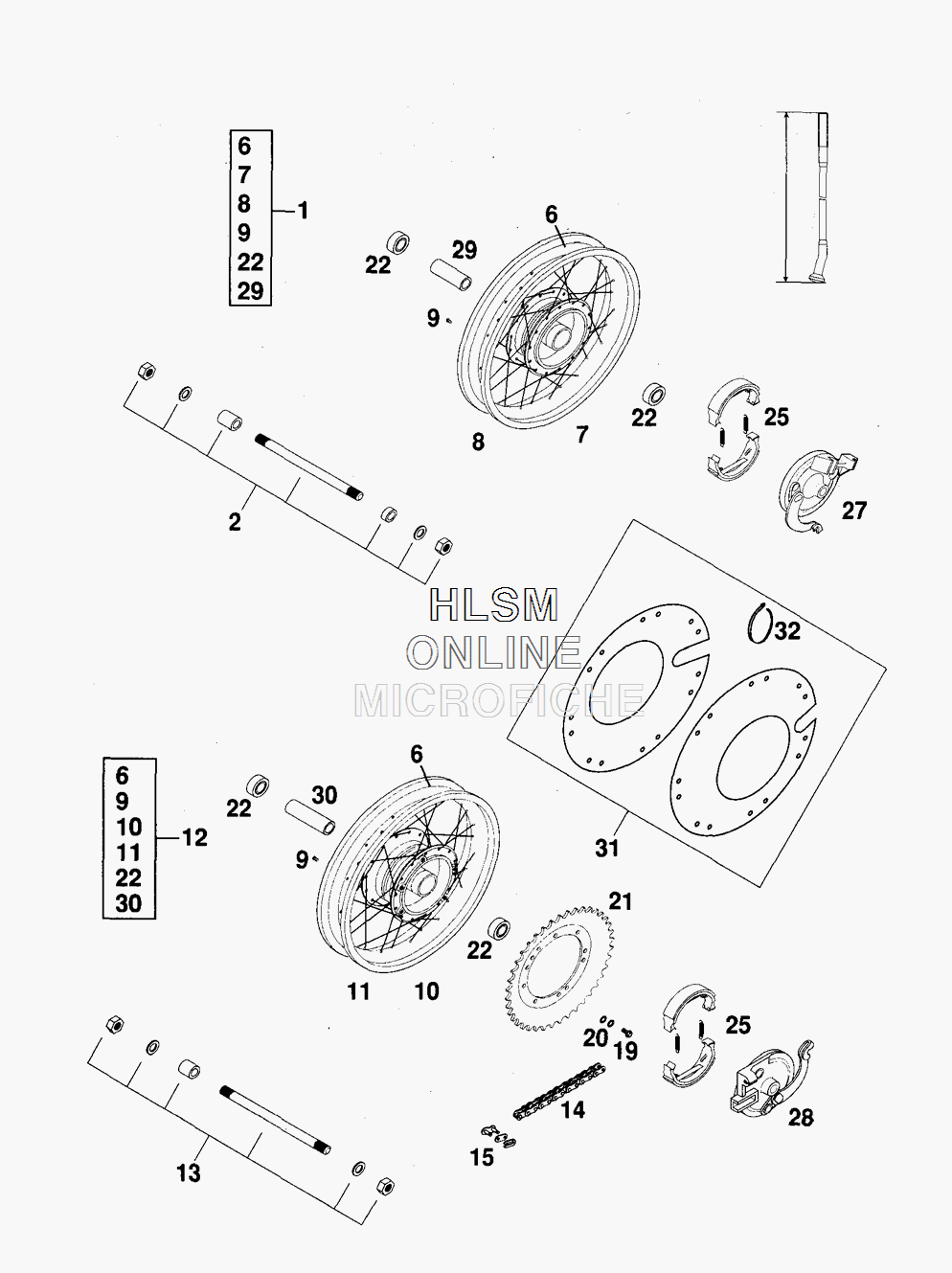

FRONT AND REAR WHEEL для Ktm 50 Jr Adventure - 2000 года выпуска

№

Артикул

Название
1

45009001100 FRONT WHEEL CPL.1,50X10 (REINFORCED)

FRONT WHEEL CPL.1,50X10 (REINFORCED)
2

45009081000 AXLE FRONT CPL. L=202MM

AXLE FRONT CPL. L=202MM
6

45009070000 RIM 1,50X10 STEEL

RIM 1,50X10 STEEL
7

45009071200 SPOKE M3,4X70-115G 10 (LEFT)

SPOKE M3,4X70-115G 10 (LEFT)
8

45009171200 SPOKE M3,4X69-70DG 10 (RIGHT)

SPOKE M3,4X69-70DG 10 (RIGHT)
9

45009072100 SPOKE NIPPLE M3,4

SPOKE NIPPLE M3,4
10

45010071200 SPOKE M3,4X73-115G 10 (LEFT)

SPOKE M3,4X73-115G 10 (LEFT)
11

45010171200 SPOKE M3,4X72-70DG 10 (RIGHT)

SPOKE M3,4X72-70DG 10 (RIGHT)
12

45010001100 REAR WHEEL CPL. 1,50X10 (REINFORCED)

REAR WHEEL CPL. 1,50X10 (REINFORCED)
13

45010081000 AXLE REAR CPL. L=214MM

AXLE REAR CPL. L=214MM
14

31010065094 CHAIN 1/2X3/16 94 ROLLS

CHAIN 1/2X3/16 94 ROLLS
14

31010065104 CHAIN 1/2X3/16 104 ROLLS

CHAIN 1/2X3/16 104 ROLLS
15

31010066000 MASTER LINK 1/2X3/16

MASTER LINK 1/2X3/16
19

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8
20

50233041000 PAIR OF WASHERS M6 NORDLOCK

PAIR OF WASHERS M6 NORDLOCK
21

45010051044 SPROCKET 44-T

SPROCKET 44-T
21

45010051045 SPROCKET 45-T

SPROCKET 45-T
21

45010051046 SPROCKET 46-T

SPROCKET 46-T
21

45010051048 SPROCKET 48-T

SPROCKET 48-T
22

0625060016 GROOVED BALL BEARING 6001.2RSR

GROOVED BALL BEARING 6001.2RSR
25

45009035000 BRAKE SHOES GARN.

BRAKE SHOES GARN.
27

45009030000 SUPPORTING PLATE CPL. FRONT

SUPPORTING PLATE CPL. FRONT
28

45010030000 SUPPORTING PLATE CPL. REAR

SUPPORTING PLATE CPL. REAR
29

45009011000 DISTANCE TUBE FRONT

DISTANCE TUBE FRONT
30

45010011000 DISTANCE TUBE REAR

DISTANCE TUBE REAR
31

45010092000 WHEEL COVER CPL. 50 SXR

WHEEL COVER CPL. 50 SXR
32

44011076305 CABLE TIE 290MM

CABLE TIE 290MM
