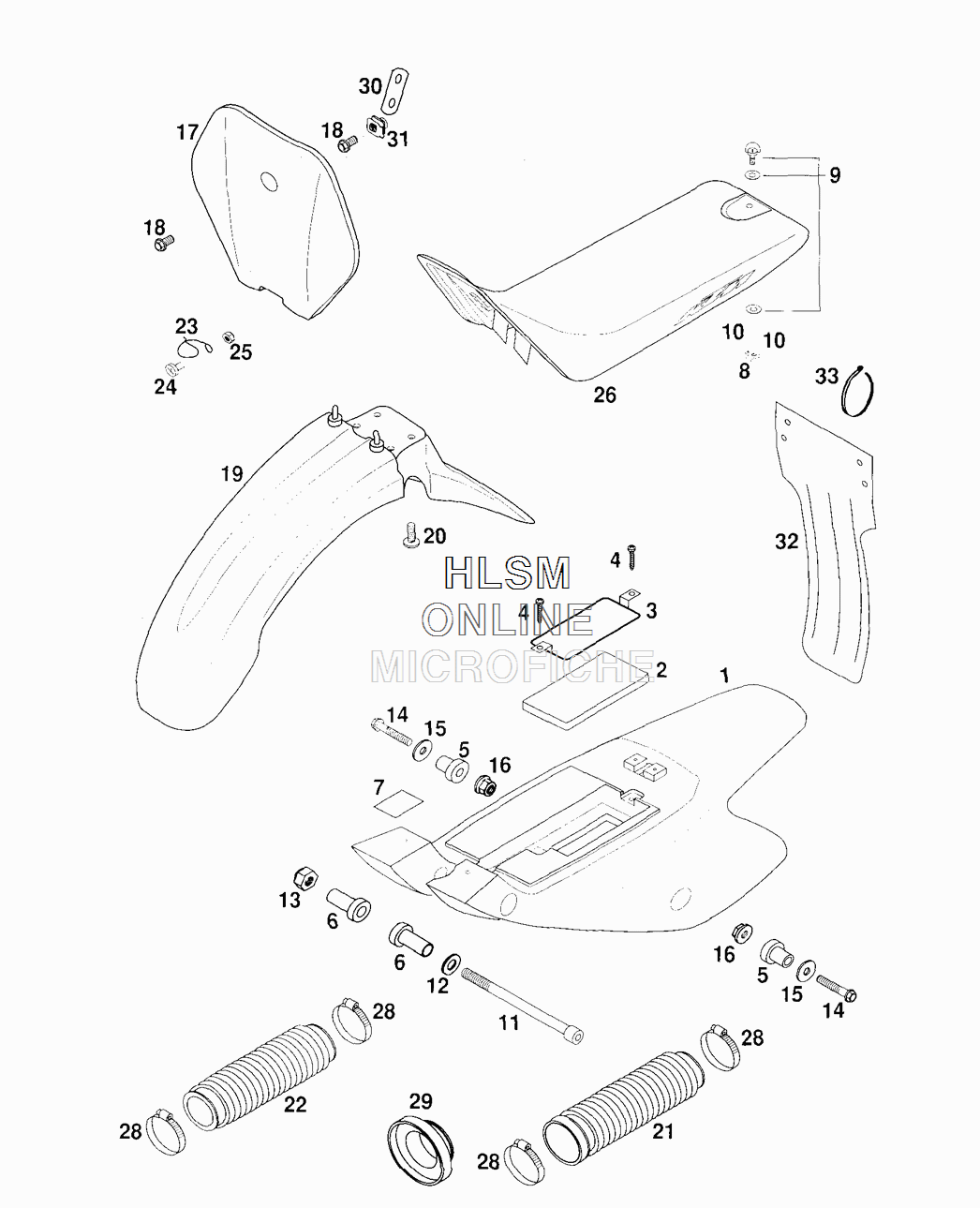

SEAT - FENDER - MASK для Ktm 50 Jr Adventure - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    4500801310004 FENDER/FRAME END REAR
    FENDER/FRAME END REAR
  • 2
    45006015000 AIRFILTER 120X58X15 MM
    AIRFILTER 120X58X15 MM
  • 3
    45006016000 FILTER FRAME
    FILTER FRAME
  • 4
    0016050153 SPECIAL SCREW Z 5X15
    SPECIAL SCREW Z 5X15
  • 5
    45007013050 COLLAR BUSH L=21 MM
    COLLAR BUSH L=21 MM
  • 6
    45007013051 COLLAR BUSH L=38,5 MM
    COLLAR BUSH L=38,5 MM
  • 7
    54601097000 RUBBER STRIP 85X25X3 MM
    RUBBER STRIP 85X25X3 MM
  • 8
    45007040050 THRUST BEARING QUICK RELEASE
    THRUST BEARING QUICK RELEASE
  • 9
    45007040051 QUICK RELEASE CPL.
    QUICK RELEASE CPL.
  • 10
    0981350163 SHEET MET.SCR.DIN7981- 3,5X16
    SHEET MET.SCR.DIN7981- 3,5X16
  • 11
    0912081203 AH SCREW DIN0912-M 8X120
    AH SCREW DIN0912-M 8X120
  • 12
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 13
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 14
    0015060353 HH COLLAR SCREW M 6X35 WS=8
    HH COLLAR SCREW M 6X35 WS=8
  • 15
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 16
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 17
    4500800700004 NUMBER PLATE
    NUMBER PLATE
  • 18
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 19
    4500801000004 FENDER FRONT
    FENDER FRONT
  • 20
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 21
    45006026000 AIRFILT.BOOT-DELL ORTO 40/35MM
    AIRFILT.BOOT-DELL ORTO 40/35MM
  • 22
    45006026100 AIRFILTER BOOT-MIKUNI 32/35 MM
    AIRFILTER BOOT-MIKUNI 32/35 MM
  • 23
    58011008000 GUIDE FOR BRAKE HOSE
    GUIDE FOR BRAKE HOSE
  • 24
    0985050103 OVAL HEAD SCR. DIN7985-M 5X10
    OVAL HEAD SCR. DIN7985-M 5X10
  • 25
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 26
    45007040200 SEAT BLACK
    SEAT BLACK
  • 28
    54305058000 HOSE CLAMP 30-45 SGT
    HOSE CLAMP 30-45 SGT
  • 28
    45007027000 HOSE CLAMP 32-50MM W=5MM
    HOSE CLAMP 32-50MM W=5MM
  • 28
    10001120000 CLAMP 25-40 SGT 4
    CLAMP 25-40 SGT 4
  • 29
    49106826000 REDUCTION RING PVC 59/40 MM
    REDUCTION RING PVC 59/40 MM
  • 30
    45008007050 BRACKET
    BRACKET
  • 31
    50235033300 SNAP-NUT HOLDER M6 KP142
    SNAP-NUT HOLDER M6 KP142
  • 32
    45006010000 SPLASH PROTECTOR
    SPLASH PROTECTOR
  • 33
    44011076305 CABLE TIE 290MM
    CABLE TIE 290MM
