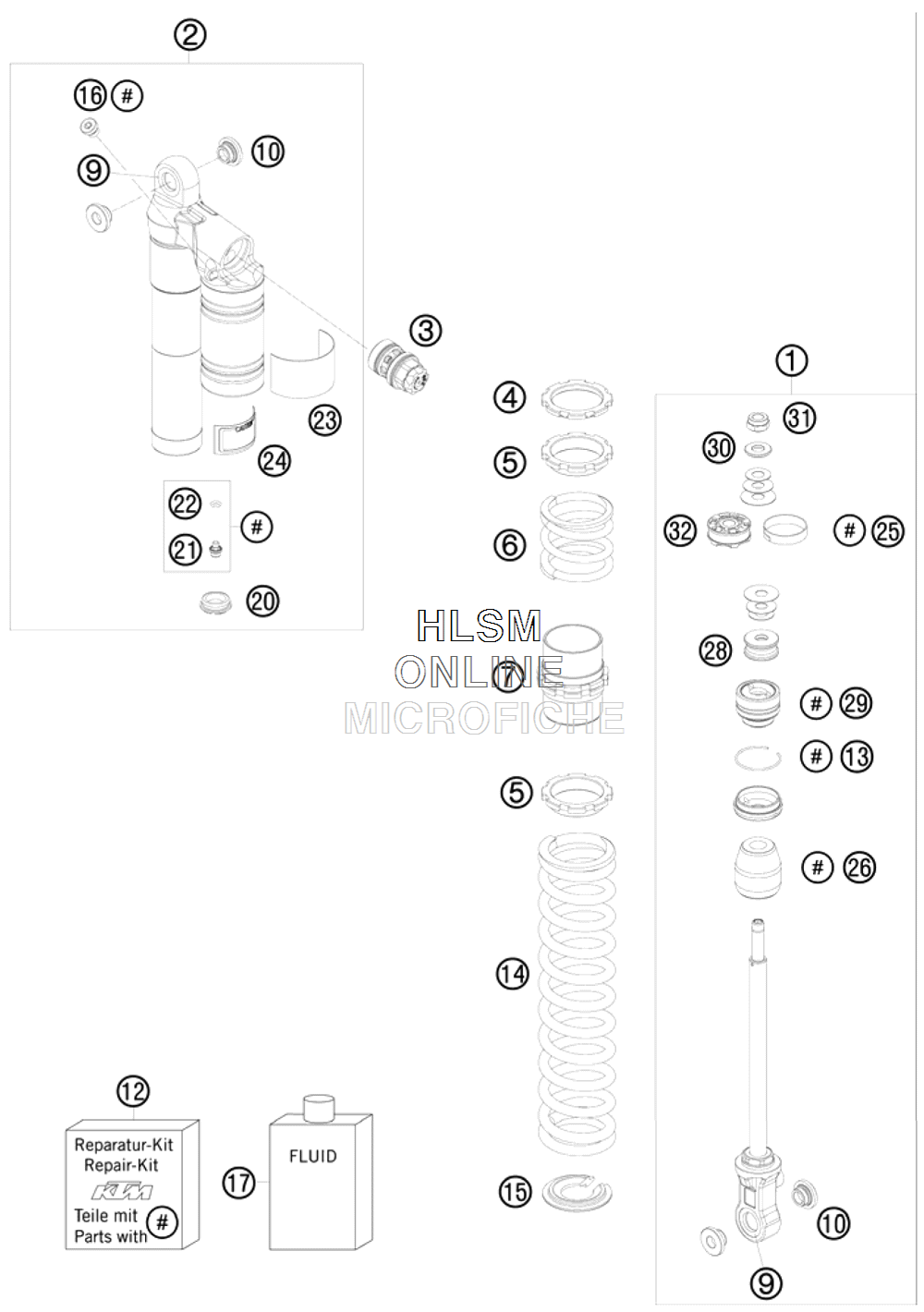

SHOCK ABS. FRONT DISASSEMBLED для Ktm 505 SX ATV - 2010 года выпуска`

№

Артикул

Название
1

36120781SA2 MONOSHOCK LOWER PART

MONOSHOCK LOWER PART

0 ₽
2

36120811SA MONOSHOCK TOP PART

MONOSHOCK TOP PART

0 ₽
3

50180213S6 DCC-COMPR.DAMP.CONTROL CPL.

DCC-COMPR.DAMP.CONTROL CPL.

106 620 ₽
4

36120015 COUNTERNUT

COUNTERNUT

8 300 ₽
5

36120815 ADJUSTING NUT M44X1,5

ADJUSTING NUT M44X1,5

6 750 ₽
6

93010188 (51) 40-60 D6.5 ORANGE

(51) 40-60 D6.5 ORANGE

56 730 ₽
7

36120814S THREAD BUSHING L70LM48X1 CPL.

THREAD BUSHING L70LM48X1 CPL.

29 140 ₽
9

R15009 BEARING KIT KGW 1525 990 DUKE

BEARING KIT KGW 1525 990 DUKE

16 860 ₽
10

46180010 BUSH KGW 10X24

BUSH KGW 10X24

920 ₽
12

R308 REPAIR-KIT

REPAIR-KIT

27 230 ₽
13

40540015 CIRCLIP 38X1,5

CIRCLIP 38X1,5

590 ₽
14

93020035S SPRING 24-29-275 D8,5

SPRING 24-29-275 D8,5

50 600 ₽
14

93020036S SPRING 21-26-275 D8,5

SPRING 21-26-275 D8,5

0 ₽
14

93020037S SPRING 27-32-275

SPRING 27-32-275

0 ₽
15

36120816 SPRING GUIDE OPEN B15B D50

SPRING GUIDE OPEN B15B D50

6 750 ₽
16

50180095 BLEED PLUG R 1/8

BLEED PLUG R 1/8

990 ₽
17

50180342 SHOCK ABSORBER FLUID SAF 1579A

SHOCK ABSORBER FLUID SAF 1579A

0 ₽
20

46811208 RUBBER CAP "DO NOT OPEN"

RUBBER CAP "DO NOT OPEN"

540 ₽
21

36120151 SCREW PLUG M5X6

SCREW PLUG M5X6

2 840 ₽
22

46810893 O-RING NBR 5,28X1,78

O-RING NBR 5,28X1,78

140 ₽
23

52000086 STICKER WP CAUTION 27X55

STICKER WP CAUTION 27X55

1 060 ₽
24

52000012 * STICKER WP "CAUTION" 27X55

* STICKER WP "CAUTION" 27X55

0 ₽
25

36120040 PISTON RING 8X1X108,3

PISTON RING 8X1X108,3

1 590 ₽
26

36120799 BUMP RUBBER

BUMP RUBBER

2 970 ₽
28

36120786 REBOUND DISC H=10 D=28,5

REBOUND DISC H=10 D=28,5

7 840 ₽
29

36120787S ADAPTOR 36MM H26,6 CPL.

ADAPTOR 36MM H26,6 CPL.

20 730 ₽
30

36120604 SHIM D10XD22X2,5

SHIM D10XD22X2,5

5 620 ₽
31

36120052 PISTON ROD NUT M10X1

PISTON ROD NUT M10X1

2 620 ₽
32

36120071 * PISTON 6+6XD5.5/3.5

* PISTON 6+6XD5.5/3.5

16 660 ₽
