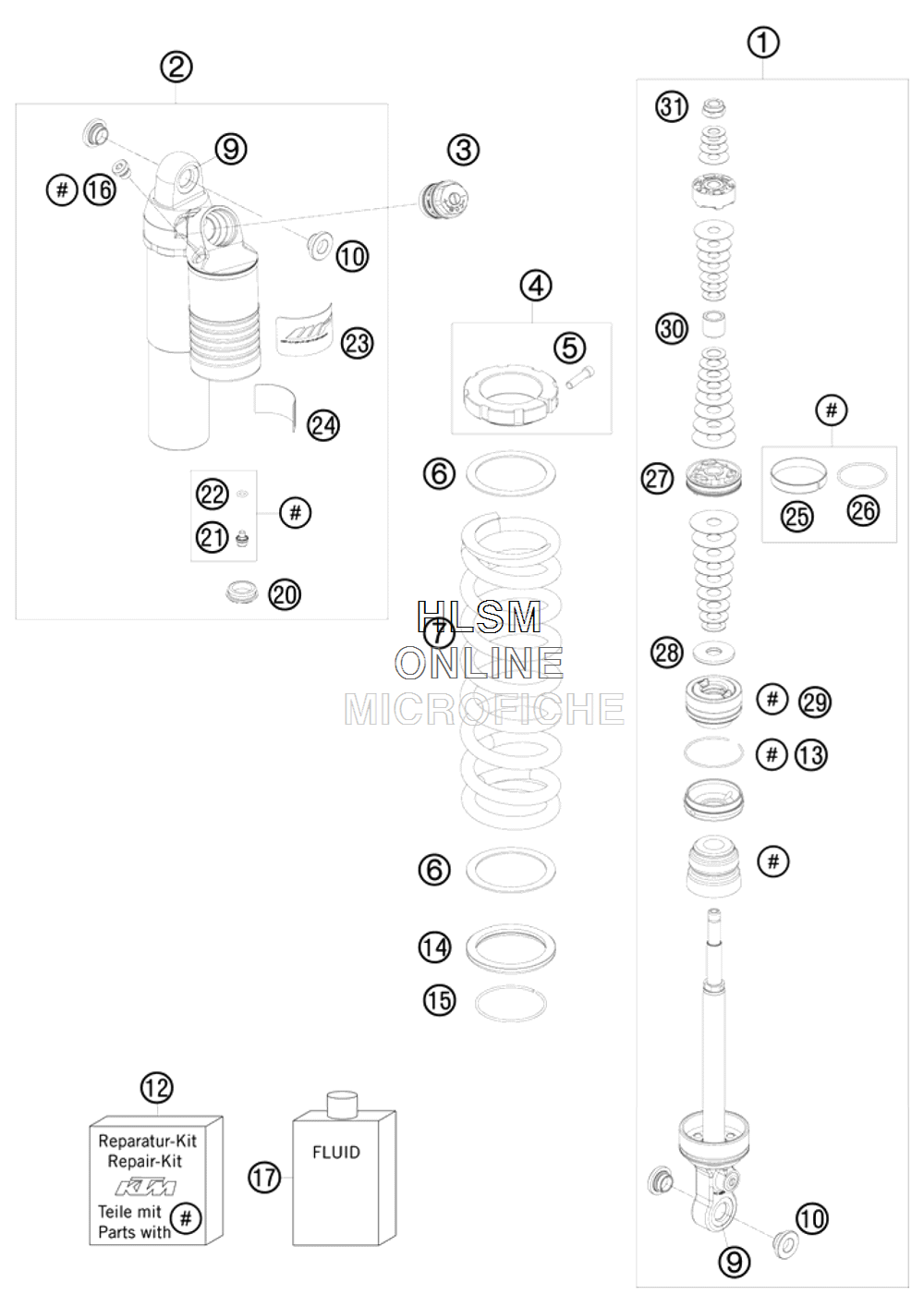

SHOCK ABS. REAR DISASSEMBLED для Ktm 505 SX ATV - 2010 года выпуска
-
№АртикулНазвание
-
146180654SA6 MONOSHOCK LOWER PARTMONOSHOCK LOWER PART
-
246180728SA MONOSHOCK UPPER PARTMONOSHOCK UPPER PART
-
350180213S6 DCC-COMPR.DAMP.CONTROL CPL.DCC-COMPR.DAMP.CONTROL CPL.
-
446180766 COUNTERNUTCOUNTERNUT
-
546180765 ADJUSTING NUT M54X1,5ADJUSTING NUT M54X1,5
-
691010297 (59) 100-55 D5,5 ORANGE(59) 100-55 D5,5 ORANGE
-
750180410 INTERM.RING D=58INTERM.RING D=58
-
846180787 SPRING GUIDE UPPER L43SPRING GUIDE UPPER L43
-
9R12012 REP. KIT BEAR./SEAL UP.REP. KIT BEAR./SEAL UP.
-
1046180007 ADAPTOR BUSH KGW 12X24ADAPTOR BUSH KGW 12X24
-
1146180513 COPPER WASHER 55X2 RVSCOPPER WASHER 55X2 RVS
-
12R15007 REPAIR KITREPAIR KIT
-
1346810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
-
1491010291 (59) 74-200 D 11,25 ORANGE(59) 74-200 D 11,25 ORANGE
-
1546180512 SPRING RETAINER D74SPRING RETAINER D74
-
1650180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
1750180342 SHOCK ABSORBER FLUID SAF 1579ASHOCK ABSORBER FLUID SAF 1579A
-
2046811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
2136120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
2246810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
2352000044 STICKER WP KTMSTICKER WP KTM
-
2452000012 * STICKER WP "CAUTION" 27X55* STICKER WP "CAUTION" 27X55
-
2546811206 PISTON RING 8X46PISTON RING 8X46
-
2650180120 BUMP STOP RUBBER W-60 D18BUMP STOP RUBBER W-60 D18
-
2746180339 SEPARATION BUSH 17X12X18SEPARATION BUSH 17X12X18
-
2846180179 REBOUND DISC H=0REBOUND DISC H=0
-
2946180669S ADAPTOR CPL. D=46 H=28ADAPTOR CPL. D=46 H=28
-
3046810035 O-RING VITON 37,82X1,78O-RING VITON 37,82X1,78
-
3146180356 PISTON ROD NUT M10X1PISTON ROD NUT M10X1
-
3246180441 PISTON 5X4,5X/6X6PISTON 5X4,5X/6X6
