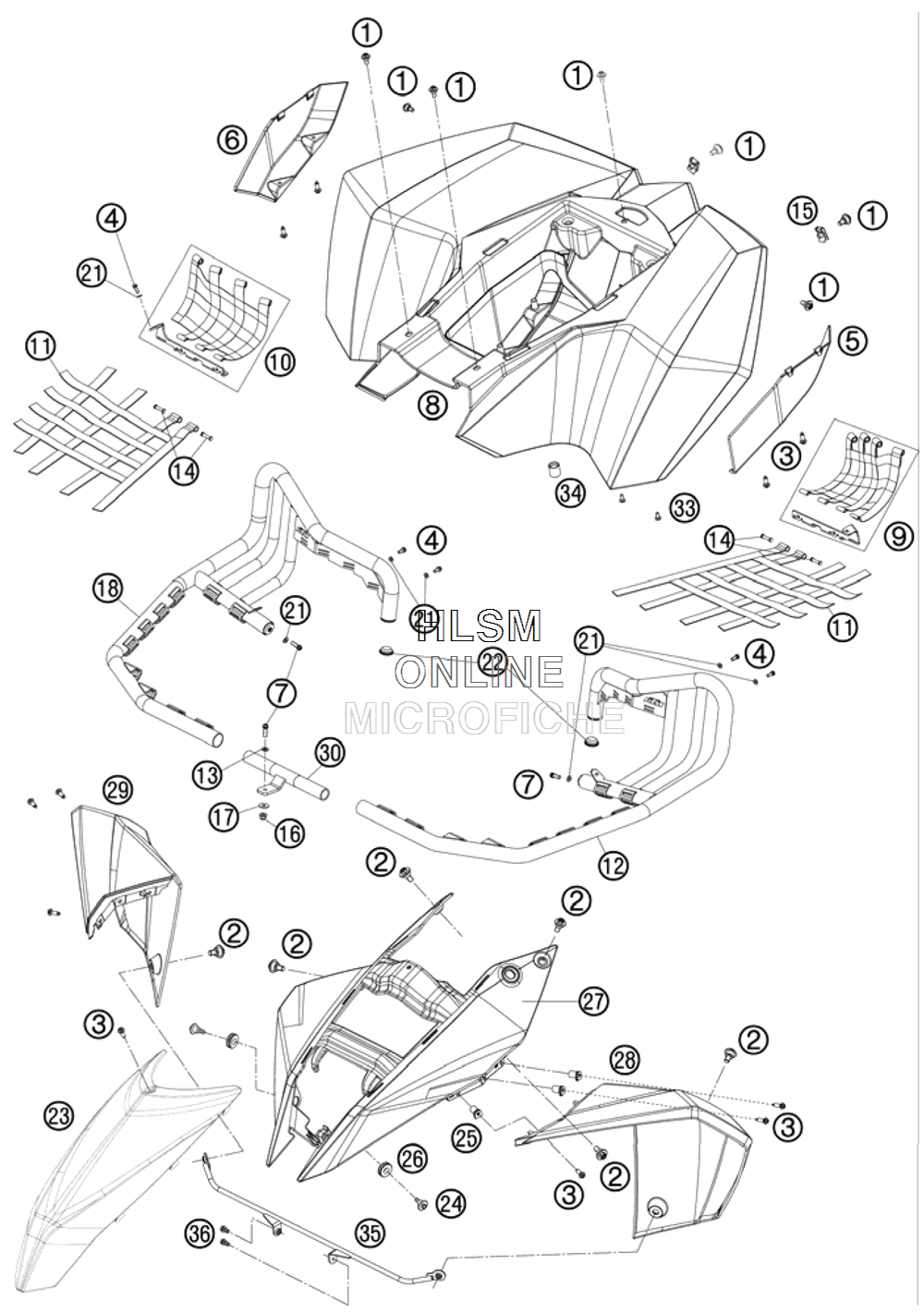

MASK- FENDERS для Ktm 505 SX ATV - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    83008000015 SPECIAL SCREW M6X15X3
    SPECIAL SCREW M6X15X3
  • 2
    83008000012 SPECIAL SCREW M6X12X3
    SPECIAL SCREW M6X12X3
  • 3
    0017060203 EJOT PT SCREW K60X20
    EJOT PT SCREW K60X20
  • 4*
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 5
    8300807201004 AIR INTAKE L/S ORANGE
    AIR INTAKE L/S ORANGE
  • 6
    8300807202004 AIR INTAKE R/S ORANGE
    AIR INTAKE R/S ORANGE
  • 7
    0025080256 HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 8
    8300807214404 REAR FENDER+AIR INTAKE ORANGE
    REAR FENDER+AIR INTAKE ORANGE
  • 9*
    83003095002 WEBBING BACK LEFT NERFBAR
    WEBBING BACK LEFT NERFBAR
  • 10*
    83003096002 WEBBING BACK RIGHT NERFBAR
    WEBBING BACK RIGHT NERFBAR
  • 11*
    83003092107 LOWER WEBBING FOR NERFBARS
    LOWER WEBBING FOR NERFBARS
  • 12*
    83003095100 NERVBAR L/S BIG
    NERVBAR L/S BIG
  • 13*
    0021080003 WASHER DIN9021-A 8,4
    WASHER DIN9021-A 8,4
  • 14*
    83003092008 BOLT WEBBING LOWER NERVBARS
    BOLT WEBBING LOWER NERVBARS
  • 15
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 16*
    0926080003 STOP NUT DIN6926 M8 SS
    STOP NUT DIN6926 M8 SS
  • 17*
    0134080003 WASHER DIN134 M8
    WASHER DIN134 M8
  • 18*
    83003096100 NERVBAR R/S BIG
    NERVBAR R/S BIG
  • 21*
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 22*
    83003095008 END CAP
    END CAP
  • 23
    8350800200030 FRONT-COVER SX
    FRONT-COVER SX
  • 24
    60035001000 SPECIAL SCREW M6X21 WS=8
    SPECIAL SCREW M6X21 WS=8
  • 25
    83008010060 CLIP NUT EASY BOSS 60X2X7
    CLIP NUT EASY BOSS 60X2X7
  • 26
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 27
    8300800100104 FRONT PLASTICPART ORANGE
    FRONT PLASTICPART ORANGE
  • 28
    8300801000004 FRONT FENDER L/S ORANGE
    FRONT FENDER L/S ORANGE
  • 29
    8300801100004 FRONT FENDER R/S ORANGE
    FRONT FENDER R/S ORANGE
  • 30*
    83003091000 NERVBARS SUPPORT FRONT
    NERVBARS SUPPORT FRONT
  • 33
    0016050121 SCREW FOR PLASTIC 50X12
    SCREW FOR PLASTIC 50X12
  • 34
    83006005000 AIR FILTER BOX COVER
    AIR FILTER BOX COVER
  • 35*
    83008010150 FENDER-FRAME CONNECTION
    FENDER-FRAME CONNECTION
  • 36
    0025060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
