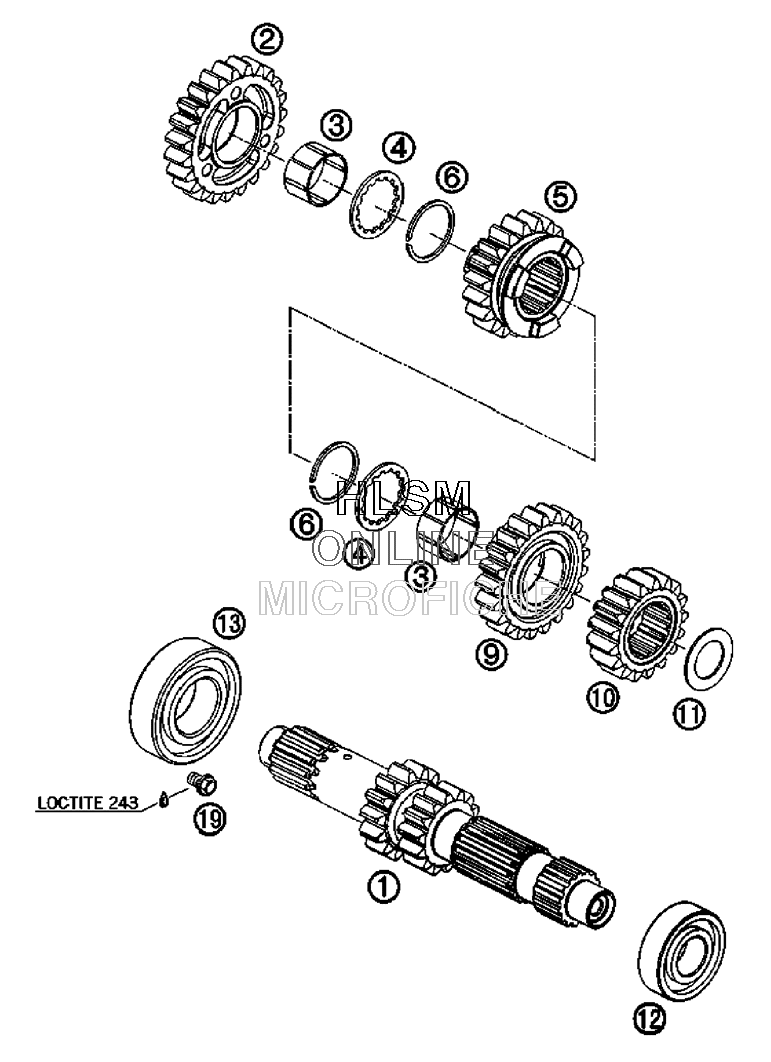

TRANSMISSION - MAIN SHAFT для Ktm 450 XC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    83033001100 MAIN SHAFT 14T
    MAIN SHAFT 14T
  • 2
    83033005000 IDLER GEAR 5.G 23T
    IDLER GEAR 5.G 23T
  • 3
    83033043000 NEEDLE BEAR. 21X25X13 SLOTTED
    NEEDLE BEAR. 21X25X13 SLOTTED
  • 4
    83033023000 STOP DISK 22,6X30X1,5
    STOP DISK 22,6X30X1,5
  • 5
    83033003000 SLIDING GEAR 3. G. 19T
    SLIDING GEAR 3. G. 19T
  • 6
    0417025000 CIRCLIP SW25
    CIRCLIP SW25
  • 9
    83033004000 IDLER GEAR 4.G 21T
    IDLER GEAR 4.G 21T
  • 10
    83033002000 SOLID GEAR 2.G
    SOLID GEAR 2.G
  • 11
    83033024000 STOP DISK 17,2X27,7,X1
    STOP DISK 17,2X27,7,X1
  • 12
    0625062035 BALL BEARING 6203 JR2 C3
    BALL BEARING 6203 JR2 C3
  • 13
    0625062054 BALL BEARING 6205 C3 NTN
    BALL BEARING 6205 C3 NTN
  • 19
    0015060083 HH COLLAR SCREW M 6X8
    HH COLLAR SCREW M 6X8
