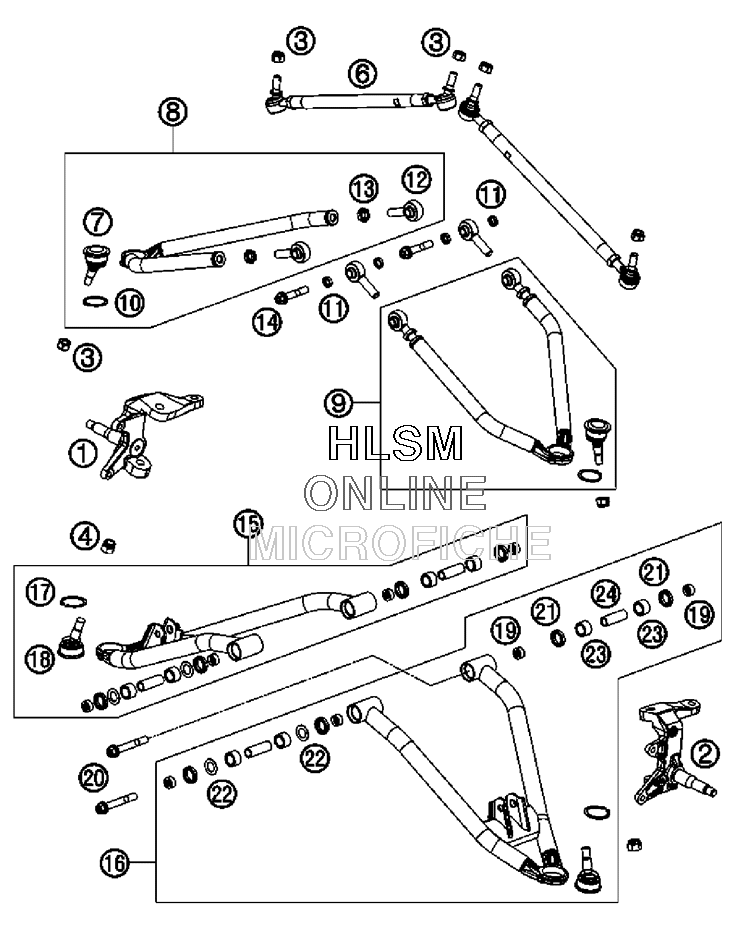

FRONT SECTION для Ktm 450 XC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    83061006000 WHEEL CARRIER R/S CPL.
    WHEEL CARRIER R/S CPL.
  • 2
    83061005000 WHEEL CARRIER L/S CPL.
    WHEEL CARRIER L/S CPL.
  • 3
    0982101253 SELF LOCK.NUT M10X1,25
    SELF LOCK.NUT M10X1,25
  • 4
    83061005025 SELF LOCK.NUT M12X1,5
    SELF LOCK.NUT M12X1,5
  • 6
    83061010044 TRACK RODS CPL.
    TRACK RODS CPL.
  • 7
    83061001050 BALL HEAD M10X1,25
    BALL HEAD M10X1,25
  • 8
    83061003044 A-ARM TOP R/S XC CPL.
    A-ARM TOP R/S XC CPL.
  • 9
    83061001044 A-ARM TOP L/S XC CPL.
    A-ARM TOP L/S XC CPL.
  • 10
    0471320150 CIRCLIP DIN0471-32X1,5
    CIRCLIP DIN0471-32X1,5
  • 11
    83061001025 SPACER BUSHING F. BALLJOINT
    SPACER BUSHING F. BALLJOINT
  • 12
    83061001051 SWIVEL HEAD
    SWIVEL HEAD
  • 13
    0936120123 HEXAGON NUT DIN 936 M12X1,25
    HEXAGON NUT DIN 936 M12X1,25
  • 14
    0023100523 COLLAR SCREW M10X52
    COLLAR SCREW M10X52
  • 15
    83061004044 A-ARM DOWN R/S XC CPL.
    A-ARM DOWN R/S XC CPL.
  • 16
    83061002044 A-ARM DOWN L/S XC CPL.
    A-ARM DOWN L/S XC CPL.
  • 17
    0471350150 CIRCLIP DIN0741-35X1,5
    CIRCLIP DIN0741-35X1,5
  • 18
    83061002050 BALL HEAD M12X1,5
    BALL HEAD M12X1,5
  • 19
    83061034000 BUCKET F. SHAFT SEAL RING
    BUCKET F. SHAFT SEAL RING
  • 20
    0023100703 COLLAR SCREW M10X70
    COLLAR SCREW M10X70
  • 21
    0760172660 SHAFT SEAL RING 17X26X6
    SHAFT SEAL RING 17X26X6
  • 22
    83061015000 STOP DISK 15,2X25,7X1
    STOP DISK 15,2X25,7X1
  • 23
    83061079000 NEEDLE BEARING HMK 1515
    NEEDLE BEARING HMK 1515
  • 24
    83061032000 BUSHING SLEEVE F. A/ARM
    BUSHING SLEEVE F. A/ARM
