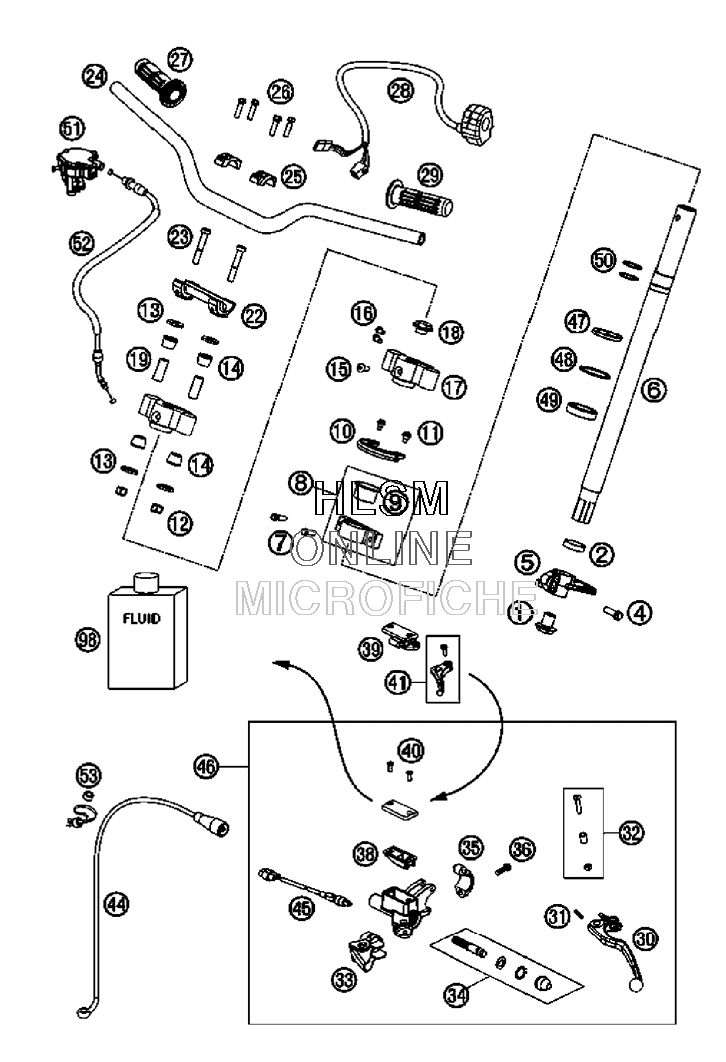

HANDLEBAR - CONTROLS для Ktm 450 XC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    83001033051 STEERING HEAD SCREW M20X1,5
    STEERING HEAD SCREW M20X1,5
  • 2
    83001033052 WASHER F. STEERING BEARING
    WASHER F. STEERING BEARING
  • 4
    0015100303 HH COLLAR SCREW M10X30
    HH COLLAR SCREW M10X30
  • 5
    83001033050 STEERING LEVER
    STEERING LEVER
  • 6
    83001033000 STEERING COLUMN
    STEERING COLUMN
  • 7
    0025080256 HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 8
    83001035044 BEARING BLOCK WITH BEARING
    BEARING BLOCK WITH BEARING
  • 9
    83001035050 SLIDE BEARING W.C. JFM-3539-26
    SLIDE BEARING W.C. JFM-3539-26
  • 10
    83001069000 CABLE GUIDE
    CABLE GUIDE
  • 11
    59001092050 SPECIAL SCREW M6X12,5
    SPECIAL SCREW M6X12,5
  • 12
    0985100003 SELF LOCKING NUT DIN0985-M10
    SELF LOCKING NUT DIN0985-M10
  • 13
    83001042000 BUCKET
    BUCKET
  • 14
    83001040000 RUBBER BUSH
    RUBBER BUSH
  • 15
    54610052000 SPROCKET SCREW-AH M8X20 WS=6
    SPROCKET SCREW-AH M8X20 WS=6
  • 16
    0015080203 HH COLLAR SCREW M 8X20
    HH COLLAR SCREW M 8X20
  • 17
    83001034008 HANDLE BAR BRIDGE
    HANDLE BAR BRIDGE
  • 18
    54801036000 STEER.HEAD SCREW M20X1,5 WS=27
    STEER.HEAD SCREW M20X1,5 WS=27
  • 19
    83001041000 SPACER TUBE 10.2X16X39
    SPACER TUBE 10.2X16X39
  • 22
    59001039100 HANDLEBAR SUPPORT 28MM
    HANDLEBAR SUPPORT 28MM
  • 23
    0012100606 AH SCREW DIN6912-M10X60
    AH SCREW DIN6912-M10X60
  • 24
    83002001000 HANDLEBAR ATV
    HANDLEBAR ATV
  • 25
    59001038200 HANDLEBAR CLAMP D=28MM
    HANDLEBAR CLAMP D=28MM
  • 26
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
  • 27
    83002021002 HANDLE BAR GRIP ATV R/S
    HANDLE BAR GRIP ATV R/S
  • 28
    83011070000 LEFT HANDLE SWITCH
    LEFT HANDLE SWITCH
  • 29
    83002021001 HANDLE BAR GRIP ATV L/S
    HANDLE BAR GRIP ATV L/S
  • 30
    60002031000 CLUTCH LEVER LONG CPL.
    CLUTCH LEVER LONG CPL.
  • 31
    59002035000 SPRING FOR CLUTCH LEVER
    SPRING FOR CLUTCH LEVER
  • 32
    50302038000 LEVER SCREW CPL. 125-200
    LEVER SCREW CPL. 125-200
  • 33
    50302037000 PROTECT.CAP FOR LEVER PERCH
    PROTECT.CAP FOR LEVER PERCH
  • 34
    59002032000 REP.KIT PISTON 9,5MM RAC.
    REP.KIT PISTON 9,5MM RAC.
  • 35
    50302030150 CLAMP WITH PIN
    CLAMP WITH PIN
  • 36
    0015060203 HH COLLAR SCREW M 6X20
    HH COLLAR SCREW M 6X20
  • 38
    50302034000 RUBBER FOR RESERVOIR
    RUBBER FOR RESERVOIR
  • 39
    59002033000 COVER HYD.CLUTCH RACING
    COVER HYD.CLUTCH RACING
  • 40
    0965040123 FLAT HEAD SCREW DIN0965-M 4X12
    FLAT HEAD SCREW DIN0965-M 4X12
  • 41
    59002047000 LEVER CPL. RACING
    LEVER CPL. RACING
  • 44
    83032063000 CLUTCH PIPE
    CLUTCH PIPE
  • 45
    58411049100 CLUTCH SWITCH
    CLUTCH SWITCH
  • 46
    83002030000 MASTER CYLINDER CPL.
    MASTER CYLINDER CPL.
  • 47
    0760385570 SHAFT SEAL RING 38,5X55X7
    SHAFT SEAL RING 38,5X55X7
  • 48
    0472055200 CIRCLIP DIN0472-55X2
    CIRCLIP DIN0472-55X2
  • 49
    0625060061 BALL BEARING 6006/32-2RS1
    BALL BEARING 6006/32-2RS1
  • 50
    0770320015 O-RING 32,00X1,50 VITON
    O-RING 32,00X1,50 VITON
  • 51
    83002022000 THUMB THROTTLE
    THUMB THROTTLE
  • 52
    83002091000 THROTTLE CABLE ATV
    THROTTLE CABLE ATV
  • 53
    50301089000 SPACER BUSHING 6X10X5
    SPACER BUSHING 6X10X5
  • 98
    50302036200 OIL FOR HYD. CLUTCH 75ML
    OIL FOR HYD. CLUTCH 75ML
