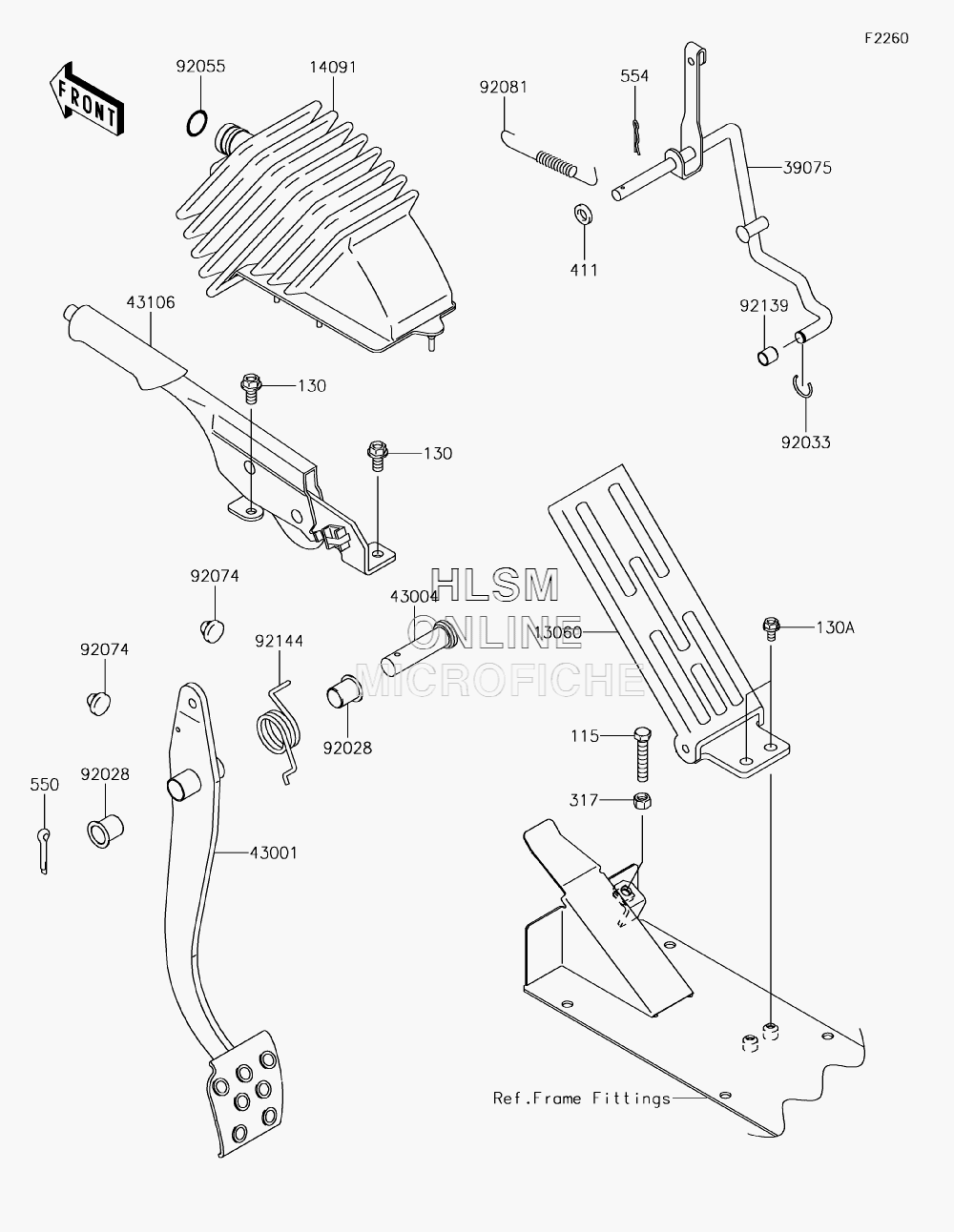

BRAKE - PEDAL W/THROTTLE LEVER для Kawasaki MULE 4000 (KAF620PKF) - 2019 года выпуска`
-
№АртикулНазвание
-
115115AA0840 BOLT-SMALL-UPSET, 8X40BOLT-SMALL-UPSET, 8X40
-
130130AA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
1306013060-0023 PEDAL, THROTTLEPEDAL, THROTTLE
-
130A130AB0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
1409114091-0067 COVER, PARKING LEVERCOVER, PARKING LEVER
-
317317BA0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
3907539075-0016 LEVER-THROTTLELEVER-THROTTLE
-
411411AA1000 WASHER-PLAIN, 10MMWASHER-PLAIN, 10MM
-
4300143001-1320 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
4300443004-1128 SHAFT-BRAKESHAFT-BRAKE
-
4310643106-0004 LEVER-ASSY-PARKING BRAKELEVER-ASSY-PARKING BRAKE
-
550550AA2525 PIN-COTTER, 2.5X25PIN-COTTER, 2.5X25
-
554554DA1000 PIN-SNAP, 10MMPIN-SNAP, 10MM
-
9202892028-1571 BUSHINGBUSHING
-
9203392033-1247 RING-SNAPRING-SNAP
-
9205592055-1633 RING-O, 18X24X3RING-O, 18X24X3
-
9207492074-028 PLUG, 7X2PLUG, 7X2
-
9208192081-1922 SPRINGSPRING
-
9213992139-0308 BUSHINGBUSHING
-
9214492144-1536 SPRINGSPRING
