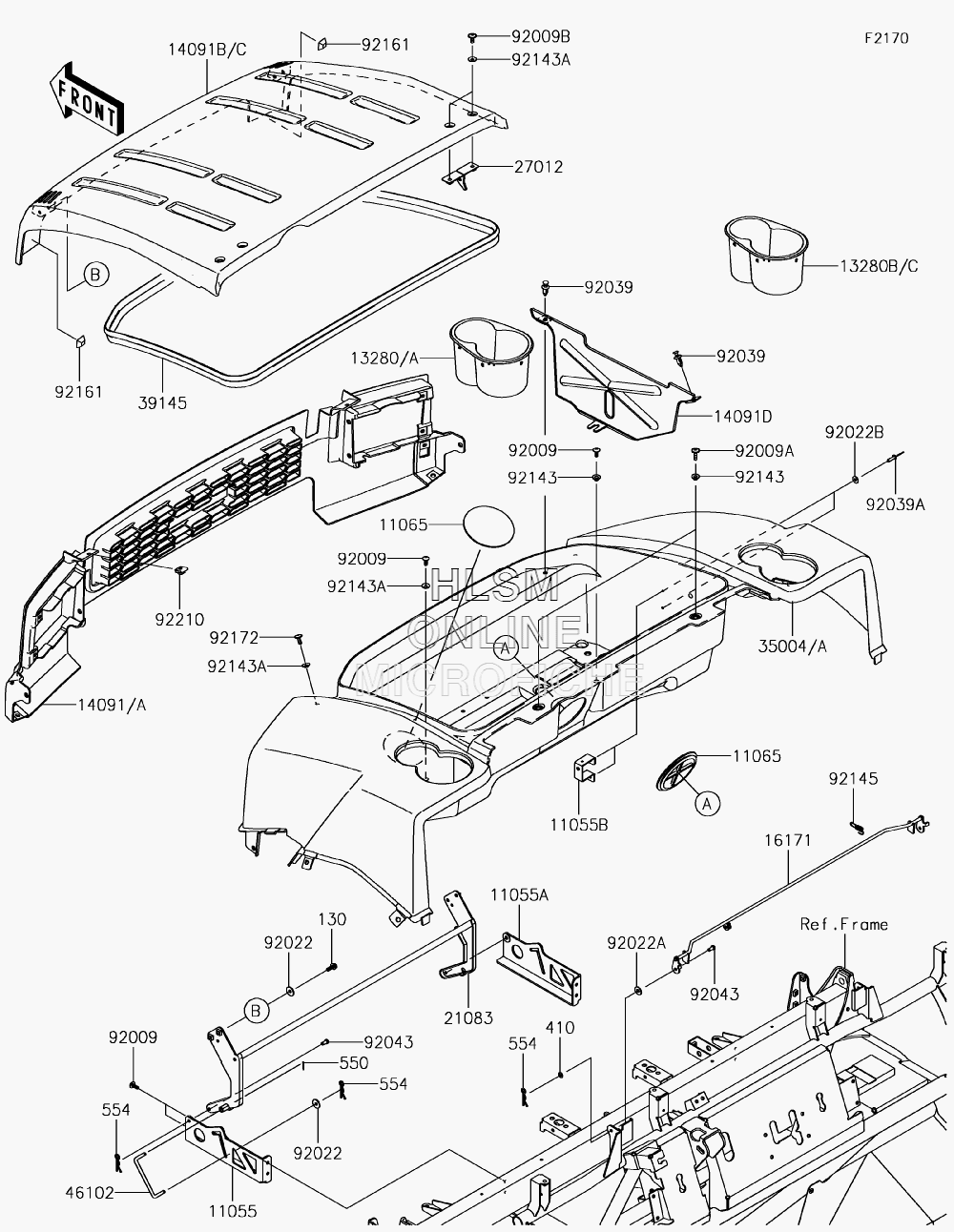

FENDER(S) для Kawasaki MULE 4000 (KAF620PKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 11055
    11055-0037 BRACKET, HINGE, LEFT HAND
    BRACKET, HINGE, LEFT HAND
  • 11055A
    11055-0038 BRACKET, HINGE, RIGHT HAND
    BRACKET, HINGE, RIGHT HAND
  • 11055B
    11055-0124 BRACKET, RESERVOIR TANK
    BRACKET, RESERVOIR TANK
  • 11065
    11065-1053-6Z CAP, (F.BLACK)
    CAP, (F.BLACK)
  • 130
    130BA0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 13280
    13280-0265-16L HOLDER, CUP HOLDER, LEFT HAND, (D.R.RED) (FOR 16M)
    HOLDER, CUP HOLDER, LEFT HAND, (D.R.RED) (FOR 16M)
  • 13280A
    13280-0265-42S HOLDER, CUP HOLDER, LEFT HAND, (T.GREEN) (FOR 42T)
    HOLDER, CUP HOLDER, LEFT HAND, (T.GREEN) (FOR 42T)
  • 13280B
    13280-0266-16L HOLDER, CUP HOLDER, RIGHT HAND, (D.R.RED) (FOR 16M)
    HOLDER, CUP HOLDER, RIGHT HAND, (D.R.RED) (FOR 16M)
  • 13280C
    13280-0266-42S HOLDER, CUP HOLDER, RIGHT HAND, (T.GREEN) (FOR 42T)
    HOLDER, CUP HOLDER, RIGHT HAND, (T.GREEN) (FOR 42T)
  • 14091
    14091-0818-16L COVER, FRONT GRILL, (D.R.RED) (FOR 16M)
    COVER, FRONT GRILL, (D.R.RED) (FOR 16M)
  • 14091A
    14091-0818-42S COVER, FRONT GRILL, (T.GREEN) (FOR 42T)
    COVER, FRONT GRILL, (T.GREEN) (FOR 42T)
  • 14091B
    14091-0829-16L COVER, FRONT FENDER, (D.R.RED) (FOR 16M)
    COVER, FRONT FENDER, (D.R.RED) (FOR 16M)
  • 14091C
    14091-0829-42S COVER, FRONT FENDER, (T.GREEN) (FOR 42T)
    COVER, FRONT FENDER, (T.GREEN) (FOR 42T)
  • 14091D
    14091-1715 COVER, RESERVOIR TANK
    COVER, RESERVOIR TANK
  • 16171
    16171-0015 LINK
    LINK
  • 21083
    21083-0051 ARM, HOOD
    ARM, HOOD
  • 27012
    27012-0119 HOOK, HOOD
    HOOK, HOOD
  • 35004
    35004-0096-16L FENDER-FRONT, CENTER, (D.R.RED) (FOR 16M)
    FENDER-FRONT, CENTER, (D.R.RED) (FOR 16M)
  • 35004A
    35004-0096-42S FENDER-FRONT, CENTER, (T.GREEN) (FOR 42T)
    FENDER-FRONT, CENTER, (T.GREEN) (FOR 42T)
  • 39145
    39145-0032 TRIM-SEAL, L=2350
    TRIM-SEAL, L=2350
  • 410
    410AA0600 WASHER-PLAIN-SMALL
    WASHER-PLAIN-SMALL
  • 46102
    46102-0103 ROD
    ROD
  • 550
    550AA1615 PIN-COTTER, 1.6X15
    PIN-COTTER, 1.6X15
  • 554
    554DA0600 PIN-SNAP, 1.2X21.2
    PIN-SNAP, 1.2X21.2
  • 92009
    92009-1166 SCREW, TAPPING, 6X16
    SCREW, TAPPING, 6X16
  • 92009A
    92009-1256 SCREW, 6X22, (BLACK)
    SCREW, 6X22, (BLACK)
  • 92009B
    92009-1621 SCREW, 6X16
    SCREW, 6X16
  • 92022
    92022-1346 WASHER, 6.5X20X1.6, (BLACK)
    WASHER, 6.5X20X1.6, (BLACK)
  • 92022A
    92022-1545 WASHER, 7X18X1.2
    WASHER, 7X18X1.2
  • 92022B
    92022-1949 WASHER, 4.3X12.5X1
    WASHER, 4.3X12.5X1
  • 92039
    92039-0776 RIVET
    RIVET
  • 92039A
    92039-1150 RIVET
    RIVET
  • 92043
    92043-1626 PIN, 6X9
    PIN, 6X9
  • 92143
    92143-1057 COLLAR
    COLLAR
  • 92143A
    92143-1087 COLLAR
    COLLAR
  • 92145
    92145-0215 SPRING
    SPRING
  • 92161
    92161-0790 DAMPER, FRONT HOOD
    DAMPER, FRONT HOOD
  • 92172
    92172-0488 SCREW, TAPPING, 6X20
    SCREW, TAPPING, 6X20
  • 92210
    92210-0624 NUT, LEAF SPRING, 6MM
    NUT, LEAF SPRING, 6MM
