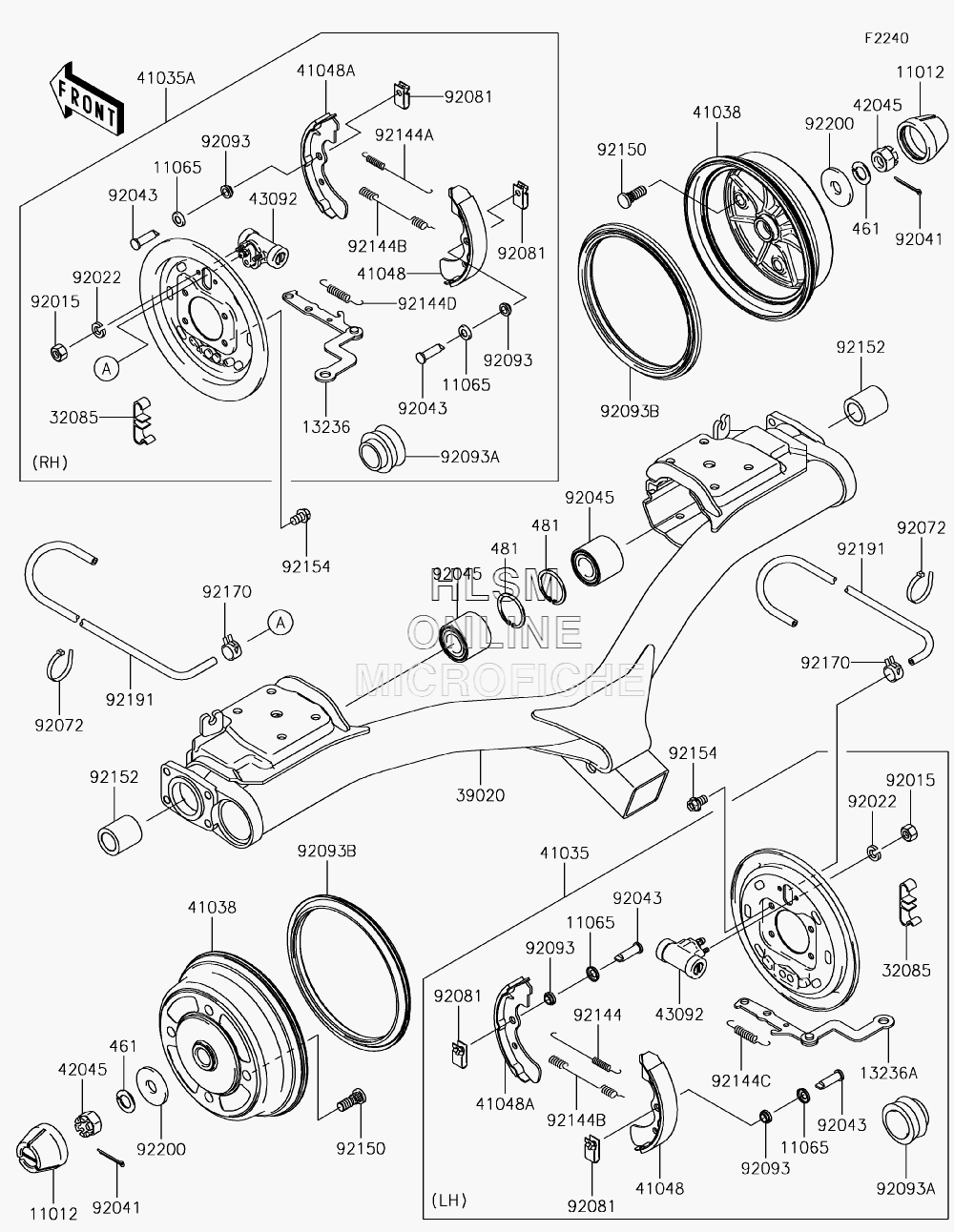

BRAKE - REAR W/ HUBS для Kawasaki MULE 4000 (KAF620PKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1101211012-1969 CAP, WHEELCAP, WHEEL
-
1106511065-1175 CAPCAP
-
1323613236-1355 LEVER-COMP, REAR BRAKE PANEL, RIGHT HANDLEVER-COMP, REAR BRAKE PANEL, RIGHT HAND
-
13236A13236-1356 LEVER-COMP, REAR BRAKE PANEL, LEFT HANDLEVER-COMP, REAR BRAKE PANEL, LEFT HAND
-
3208532085-1298 STOPPER, REAR BRAKE LEVERSTOPPER, REAR BRAKE LEVER
-
3902039020-0004 BRACKET-COMP-REAR SUSPBRACKET-COMP-REAR SUSP
-
4103541035-7506 PANEL-ASSY-BRAKE, REAR, LEFT HANDPANEL-ASSY-BRAKE, REAR, LEFT HAND
-
41035A41035-7508 PANEL-ASSY-BRAKE, REAR, RIGHT HANDPANEL-ASSY-BRAKE, REAR, RIGHT HAND
-
4103841038-0035 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
4104841048-7502 SHOE-BRAKESHOE-BRAKE
-
41048A41048-7503 SHOE-BRAKESHOE-BRAKE
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
4309243092-1053 CYLINDER, REAR WHEELCYLINDER, REAR WHEEL
-
461461DA1800 WASHER-SPRING, 18MMWASHER-SPRING, 18MM
-
481481J5200 CIRCLIP-TYPE-C, 52MMCIRCLIP-TYPE-C, 52MM
-
9201592015-1729 NUT, 6MMNUT, 6MM
-
9202292022-1951 WASHER, SPRING, 6MMWASHER, SPRING, 6MM
-
9204192041-1053 COTTER, 4.0X35COTTER, 4.0X35
-
9204392043-1636 PINPIN
-
9204592045-0107 BEARING-BALL, 25BWD02CA68BEARING-BALL, 25BWD02CA68
-
9207292072-030 BAND, L=123BAND, L=123
-
9208192081-1904 SPRING, SHOE CLAMPSPRING, SHOE CLAMP
-
9209392093-1532 SEALSEAL
-
92093A92093-1533 SEALSEAL
-
92093B92093-1543 SEAL, BS184.8X13.5ZSSEAL, BS184.8X13.5ZS
-
9214492144-1299 SPRING, BRAKESPRING, BRAKE
-
92144A92144-1300 SPRING, BRAKESPRING, BRAKE
-
92144B92144-1301 SPRING, BRAKESPRING, BRAKE
-
92144C92144-1302 SPRING, ROD, LEFT HANDSPRING, ROD, LEFT HAND
-
92144D92144-1303 SPRING, ROD, RIGHT HANDSPRING, ROD, RIGHT HAND
-
9215092150-1366 BOLTBOLT
-
9215292152-1276 COLLAR, 25.1X38X40.8COLLAR, 25.1X38X40.8
-
9215492154-0803 BOLT, FLANGED, 10X16BOLT, FLANGED, 10X16
-
9217092170-2042 CLAMPCLAMP
-
9219192191-1525 TUBE, 4.7X9.5X1100TUBE, 4.7X9.5X1100
-
9220092200-1474 WASHER, 18.5X52X4.5WASHER, 18.5X52X4.5
