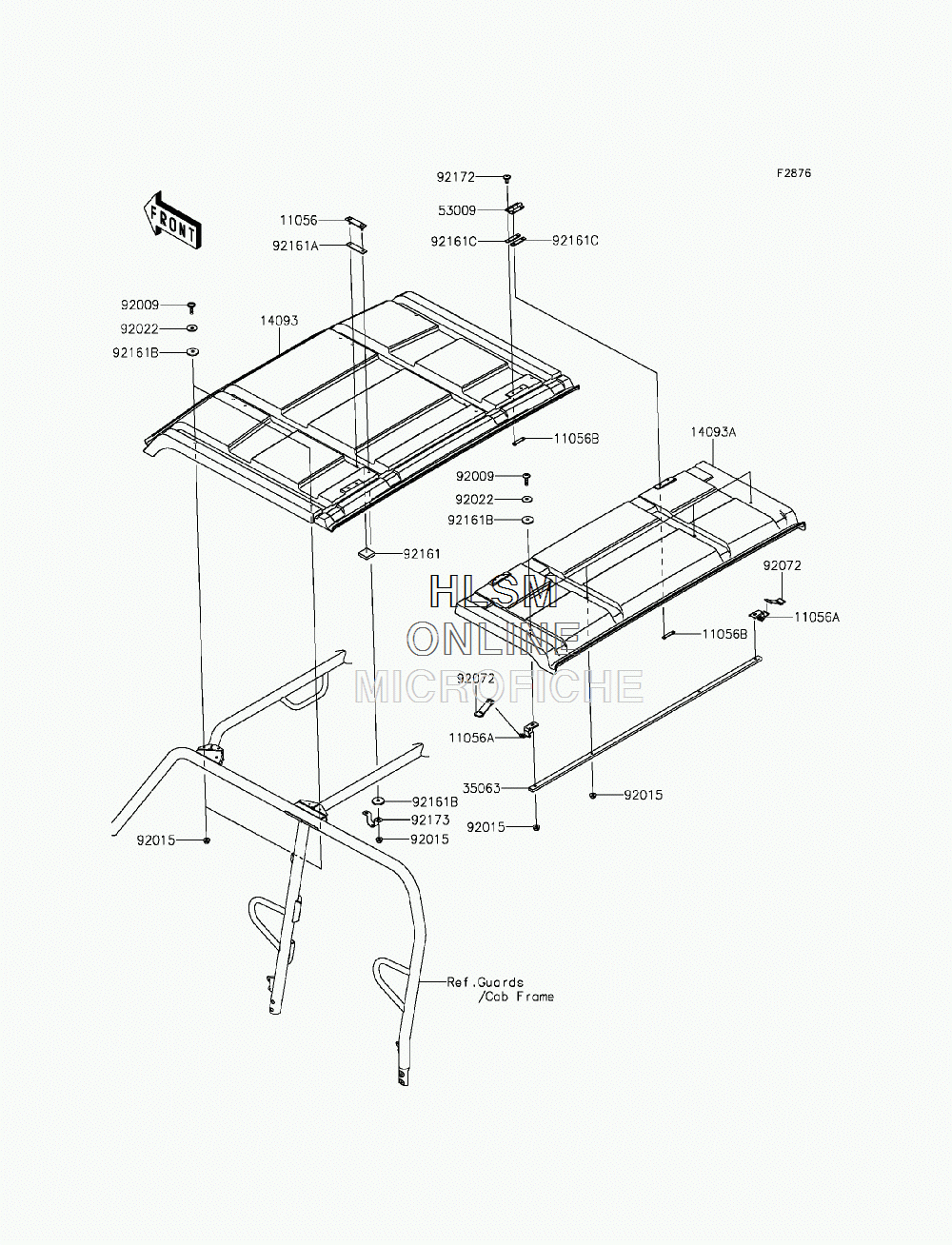

SUN TOP для Kawasaki MULE PRO-FXT RANCH EDITION (KAF820JGF) - 2016 года выпуска`
-
№АртикулНазвание
-
1105611056-1523 BRACKETBRACKET
-
11056A11056-3815 BRACKETBRACKET
-
11056B11056-3910 BRACKETBRACKET
-
1409314093-0017 COVER, SUNTOP, FRONTCOVER, SUNTOP, FRONT
-
14093A14093-0018 COVER, SUNTOP, REARCOVER, SUNTOP, REAR
-
3506335063-0944 STAY, REAR SUNTOPSTAY, REAR SUNTOP
-
5300953009-0034 HINGEHINGE
-
9200992009-1256 SCREW, 6X22, BLACKSCREW, 6X22, BLACK
-
9201592015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-237 WASHER, 6.5X22X1.6WASHER, 6.5X22X1.6
-
9207292072-1176 BAND, TOOLBAND, TOOL
-
9216192161-1405 DAMPER, 25.4X25.4X6.3DAMPER, 25.4X25.4X6.3
-
92161A92161-1476 DAMPERDAMPER
-
92161B92161-1633 DAMPER, 6X25X3.15DAMPER, 6X25X3.15
-
92161C92161-1650 DAMPERDAMPER
-
9217292172-0004 SCREW, 6X14SCREW, 6X14
-
9217392173-1224 CLAMP, UCLAMP, U
