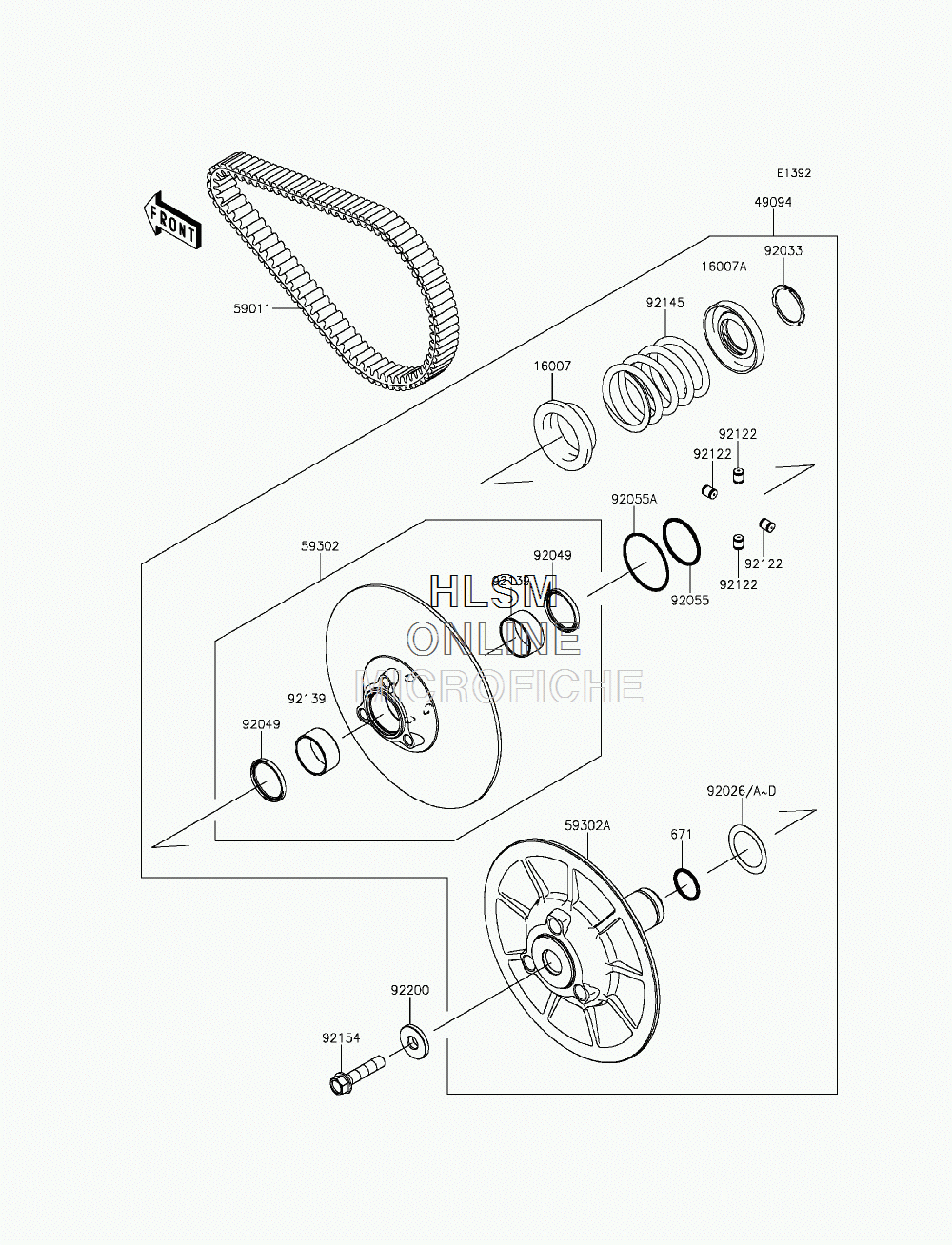

DRIVEN CONVERTER W/ DRIVE BELT для Kawasaki MULE PRO-FXT RANCH EDITION (KAF820JGF) - 2016 года выпуска`
-
№АртикулНазвание
-
671671D2530 O RINGO RING
-
1600716007-0049 SEAT-SPRING, MOVABLESEAT-SPRING, MOVABLE
-
16007A16007-0050 SEAT-SPRING, FIXEDSEAT-SPRING, FIXED
-
4909449094-0098 CONVERTER-ASSY-DRIVENCONVERTER-ASSY-DRIVEN
-
5901159011-0037 BELT, CVTBELT, CVT
-
5930259302-0049 SHEAVE-COMP, MOVABLESHEAVE-COMP, MOVABLE
-
59302A59302-0096 SHEAVE-COMPSHEAVE-COMP
-
9202692026-0034 SPACER, T=0.30SPACER, T=0.30
-
92026A92026-1565 SPACER, T=1.00SPACER, T=1.00
-
92026B92026-1569 SPACER, T=0.60SPACER, T=0.60
-
92026C92026-1570 SPACER, T=1.40SPACER, T=1.40
-
92026D92026-1617 SPACER, T=0.80SPACER, T=0.80
-
9203392033-1317 RING-SNAPRING-SNAP
-
9204992049-1528 SEAL-OILSEAL-OIL
-
9205592055-0752 RING-O, 46.4X3.1RING-O, 46.4X3.1
-
92055A92055-0753 RING-O, 59.5X2.4RING-O, 59.5X2.4
-
9212292122-0043 ROLLERROLLER
-
9213992139-0313 BUSHINGBUSHING
-
9214592145-1577 SPRINGSPRING
-
9215492154-1336 BOLT, FLANGED, 12X55BOLT, FLANGED, 12X55
-
9220092200-0069 WASHERWASHER
